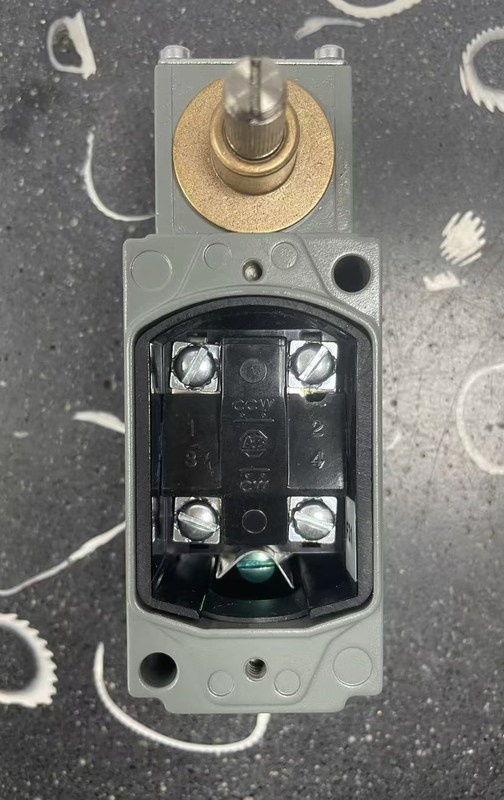

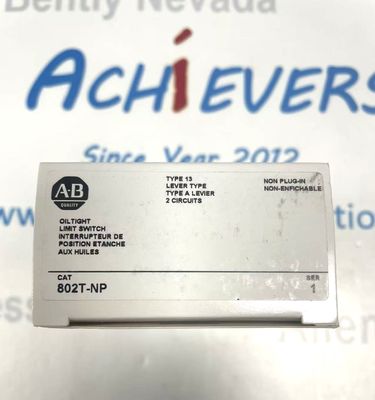

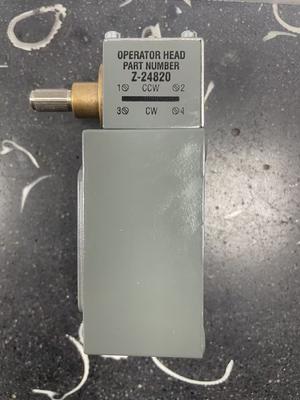

Allen-Bradley 802T-NP Limit Switch | Heavy-Duty Industrial Position Sensor
|
|
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Gedetailleerde productomschrijving
| Markeren: | Allen-Bradley 802T-NP limit switch,heavy-duty industrial position sensor,Allen Bradley PLC limit switch |
||
|---|---|---|---|
Product Overview
The Allen-Bradley 802T-NP is a heavy-duty limit switch designed for reliable position detection in demanding industrial environments. Part of the Bulletin 802T series from Rockwell Automation, this rugged switch provides precise mechanical actuation for applications requiring durable operation in harsh conditions including exposure to oil, dust, and moisture.
Key Features
-
Heavy-Duty Construction - Metal housing for industrial durability
-
Plug-In Design - Easy installation and maintenance
-
Oiltight Protection - Sealed against oil, dust, and moisture ingress
-
Multiple Actuator Options - Various configurations available
-
High Reliability - Long service life in demanding environments
-
Flexible Mounting - Multiple mounting options
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
802T-NP |
|
Product Line |
Bulletin 802T |
|
Switch Type |
Heavy-Duty Limit Switch |
|
Contact Configuration |
1NO/1NC (Form C) |
|
Electrical Rating |
10A @ 600V AC / 10A @ 300V DC |
|
Housing Material |
Metal (zinc die-cast) |
|
Protection Rating |
IP67 equivalent |
|
Operating Temperature |
-25°C to +85°C |
|
Mechanical Life |
10 million operations minimum |
|
Electrical Life |
1 million operations at rated load |
|
Terminal Type |
Screw terminals |
|
Connection |
Conduit entries |
Electrical Characteristics
Contact Specifications
-
Contact Arrangement | 1NO + 1NC (SPDT)
-
Rated Current | 10A AC/DC
-
Rated Voltage | 600V AC / 300V DC maximum
-
Contact Material | Silver alloy
Performance Data
-
Operating Speed | 20 operations per minute maximum
-
Contact Bounce | <5ms typical
-
Insulation Resistance | >100MΩ at 500V DC
Mechanical Specifications
Construction Details
-
Enclosure Material | Zinc die-cast metal
-
Sealing Standard | Oiltight construction
-
Actuator Types | Various lever and plunger options
-
Mounting | Multiple mounting configurations
Environmental Specifications
-
Temperature Range | -25°C to +85°C operational
-
Shock Resistance | 30G minimum
-
Vibration Resistance | 10-55Hz, 1mm amplitude
Applications
The Allen-Bradley 802T-NP is ideal for:
-
Machine Tools - Position limiting and safety interlocking
-
Material Handling - Conveyor system position detection
-
Industrial Automation - Machine sequencing and control
-
Packaging Machinery - Component position verification
-
Automotive Manufacturing - Robotic cell position sensing
Installation & Operation
Mounting Configuration
-
Panel Mounting | Standard industrial mounting
-
Orientation | Multiple mounting positions supported
-
Clearance Requirements | Adequate clearance for actuator movement
Electrical Connection
-
Wiring Method | Screw terminal connections
-
Wire Size | Suitable for industrial wiring standards
-
Conduit Entries | Multiple conduit entry points
Why Choose Allen-Bradley 802T-NP?
-
Proven Reliability - Rockwell Automation quality and industrial reputation
-
Easy Maintenance - Plug-in design for quick replacement
-
Environmental Resistance - Oiltight construction for harsh conditions
-
Configuration Flexibility - Multiple actuator and mounting options
-
Global Compliance - International certifications for worldwide use
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
