MTL 5522 dual-channel isolator specifications. For 2-wire 4-20mA transmitters, provides loop power, galvanic isolation, 24V DC, hazardous area certified.

Product Overview

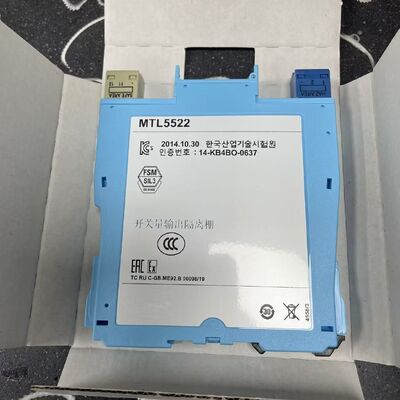

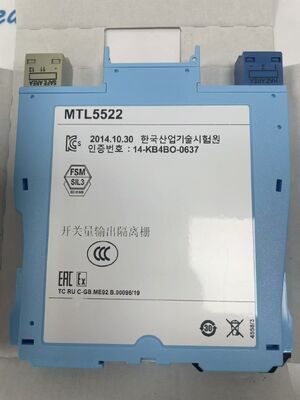

The MTL 5522 is a dual-channel signal conditioner and isolator designed for interface with 2-wire (loop-powered) transmitters in hazardous areas. It supplies the required loop power to the field transmitter, receives the 4-20mA signal, provides intrinsic safety (IS) isolation, and delivers an isolated 4-20mA output to the safe area. It provides a complete interface solution for loop-powered field instruments.

Technical Specifications

Key Features

• 2-Wire Transmitter Interface:​ Provides loop power for 2-wire (loop-powered) transmitters

• Integrated Loop Power:​ Supplies 24V DC to power field transmitters

• Dual Independent Channels:​ Two fully isolated channels in a compact 12.5mm width

• High Accuracy:​ ±0.1% analog signal accuracy

• Intrinsic Safety:​ Certified for Zone 1/21 hazardous locations

• Complete Isolation:​ 500V isolation prevents ground loops and protects control systems

• Active Output:​ 4-20mA 2-wire output capable of driving loads up to 600Ω

• Software Configurable:​ Input range, fail-safe mode, and other parameters set via PC

• Visual Diagnostics:​ Per-channel LEDs indicate power status and fault conditions

• Burnout Protection:​ Configurable response on input signal loss

• Single Power Supply:​ Only requires one 24V DC supply for isolator and loop power

Applications

• Isolating loop-powered 2-wire transmitters in hazardous areas

• Pressure, temperature, and level transmitter installations

• Process control systems with 4-20mA field instruments

• Safety instrumented systems (SIL 2 capable)

• General industrial signal conditioning and isolation applications

Important Notes

1. The 5522 provides loop power to 2-wire transmitters, eliminating the need for a separate IS power supply

2. Verify the field device's power requirements are compatible with the 24V DC loop power provided

3. Configuration is required via MTL software for proper operation

4. The 4-20mA output is active and requires an external 24V DC supply for the output loop

5. Each channel provides independent isolation and loop power
