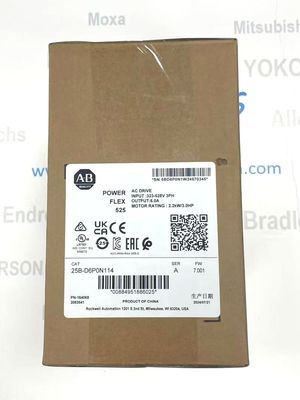

Allen-Bradley 25B-D6P0N114 PowerFlex 525 AC Drive 4.0 HP 6.0 A 380-480V AC Variable Frequency Drive
|
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 강조하다: | 4.0 HP PowerFlex 525 AC Drive,6.0 A Variable Frequency Drive,380-480V AC Allen-Bradley 25B-D6P0N114 |
||
|---|---|---|---|
Allen-Bradley 25B-D6P0N114 PowerFlex 525 AC Drive
Product Overview
The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 AC variable frequency drive designed for precise motor control in industrial automation applications. This compact, versatile drive offers reliable speed regulation for three-phase AC motors, providing energy efficiency and advanced control capabilities for various industrial systems. Part of Rockwell Automation's PowerFlex 520-series, this drive combines ease of use with powerful features for demanding applications.
Key Features
- Advanced Motor Control - Sensorless Vector Control and Volts/Hertz control modes
- Compact Design - Space-efficient form factor for easy panel integration
- Embedded Ethernet - Built-in EtherNet/IP communication for seamless integration
- User-Friendly Interface - Integrated keypad with LCD display for easy setup
- Safety Features - Certified safety functions available (option dependent)
- Energy Optimization - Automatic energy savings in low load conditions
- Robust Construction - Designed for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 25B-D6P0N114 |
| Product Type | AC Variable Frequency Drive |
| Output Power | 4.0 HP (3.0 kW) |
| Output Current | 6.0 A |
| Input Voltage | 380-480V AC, 3-Phase (±10%) |
| Input Frequency | 47-63 Hz |
| Output Voltage | 0-480V AC, 3-Phase |
| Control Method | Sensorless Vector, Volts/Hertz |
| Communication | Embedded EtherNet/IP, USB programming port |
| Enclosure Type | IP20 / NEMA/UL Type 1 (Open) |
| Operating Temperature | -20°C to +50°C (with derating above 40°C) |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions (HxWxD) | 158 x 120 x 150 mm (6.22 x 4.72 x 5.91 in) |
| Weight | 1.5 kg (3.3 lb) |
Performance Characteristics
Electrical Specifications
- Overload Capacity | 150% of rated current for 60 seconds
- Switching Frequency | 2-16 kHz (configurable)
- Efficiency | >97.5% typical
- Braking Torque | Up to 20% (with optional brake resistor)
- Speed Range | 40:1 (Sensorless Vector), 10:1 (Volts/Hertz)
Control Performance
- Speed Regulation | ±0.5% of base speed (Sensorless Vector)
- Speed Range | 0-500 Hz output frequency
- Torque Response | <10 ms typical
- Starting Torque | 200% at 0.5 Hz
Communication Capabilities
Network Connectivity
- EtherNet/IP | Embedded dual-port switch (10/100 Mbps)
- Protocol Support | CIP, Class 1 and Class 3 messaging
- I/O Control | Peer-to-peer control capability
- Network Options | DeviceNet and PROFINET via optional adapters
Programming Interfaces
- Integrated Keypad | Backlit LCD with navigation keys
- USB Port | For programming and configuration
- Software Tools | Connected Components Workbench (CCW)
- Parameter Storage | Non-volatile memory for settings
Applications
The PowerFlex 525 is ideal for:
- Pump and Fan Control - HVAC systems, water treatment
- Conveyor Systems - Material handling, packaging lines
- Machine Tools - Manufacturing equipment, automation cells
- Mixers and Agitators - Process industry applications
- Compressor Control - Industrial air systems
- General Purpose Machinery - Various industrial motor control applications
Why Choose PowerFlex 525?
- Ease of Use - Simple setup with intuitive interface
- Flexibility - Multiple control modes for various applications
- Connectivity - Built-in Ethernet for modern control systems
- Reliability - Rockwell Automation quality and support
- Energy Efficient - Reduces power consumption and costs
- Compact Size - Saves panel space without sacrificing performance
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
