One Channel Eaton MTL5573 Temperature Converter 40dB Series Mode Rejection
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| RTD Excitation Current: | 200µA Nominal | Cold Junction Compensation, THC Input: | Selectable ON Or OFF |
|---|---|---|---|
| Cold Junction Compensation Error: | ≤ 1.0°C | Common Mode Rejection: | 120dB For 240V At 50Hz Or 60Hz |
| Series Mode Rejection: | 40dB For 50Hz Or 60Hz | Safety Drive On Sensor Failure: | Upscale, Downscale, Or Off |
| Highlight: | One Channel temperature converter,MTL5573 temperature converter,40dB mtl intrinsically safe barriers |
||

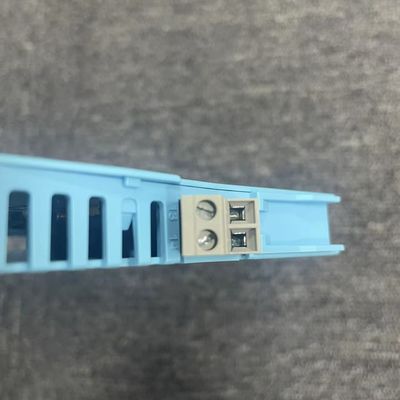

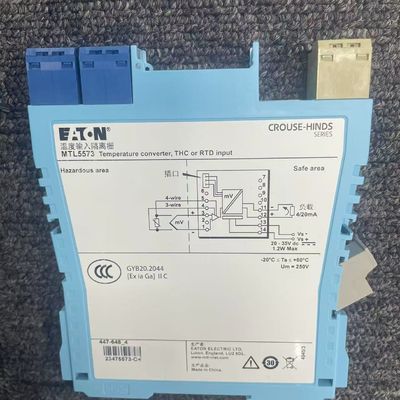

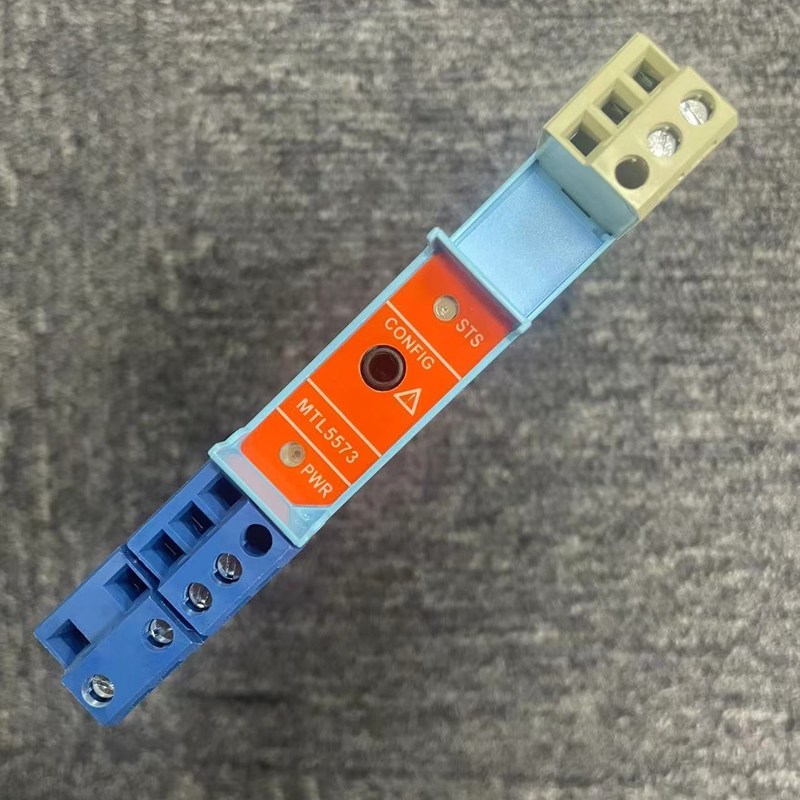

Eaton MTL-5573 Isolating Driver 40dB Series Mode Rejection
The Eaton MTL-5573 is a temperature converter designed for hazardous areas, converting low-level DC signals from temperature sensors into a 4-20mA current output. This versatile device supports various thermocouple types and RTD configurations with software-selectable features including linearization, ranging, and monitoring.
Key Features
- Converts signals from hazardous area sensors to safe-area 4-20mA output
- Supports all standard thermocouple types (J, K, T, E, R, S, B, N) and RTD configurations
- Software-configurable for linearization, ranging, and monitoring
- Includes integral CJC sensor for thermocouple applications
- PC-configurable for easy setup and customization
- Certified for Zone 0, IIC hazardous areas and Division 1, Groups A-D locations
Technical Specifications
| Parameter | Details |
|---|---|
| Number of Channels | One |
| Signal Source Location | Zone 0, IIC Hazardous Area Division 1, Groups A-D Hazardous Location |
| Input Types | Thermocouples: J, K, T, E, R, S, B, N (3mV min span) mV Input: -75 to +75mV (3mV min span) RTD: 2/3/4 wire Pt100, Pt500, Pt1000, Cu-50, Cu-53, Ni100, Ni500, Ni1000 (10Ω min span) Resistance: 0 to 400Ω (10Ω min span) |
As a global power management leader, Eaton helps customers solve critical power challenges through innovative electrical, aerospace, hydraulic, and vehicle solutions. With over 100 years of experience, Eaton products enhance safety, energy efficiency, and sustainability.
About ACH
Founded in 2012, ACH is a premier distributor of industrial automation products, supplying genuine devices from leading brands including ABB, P+F, E&H, AB, MTL, and Emerson to global markets. We are committed to providing 100% genuine products at competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term partners receive competitive pricing. ACH maintains just 5% profit per order to ensure the most favorable prices.
Are the products genuine OEM units?
Yes, all ACH products are certified genuine OEM units sourced through official channels and trusted suppliers.
How will you arrange shipment?
We manage shipping through partnerships with major carriers including FedEx, DHL, TNT, and UPS for reliable, cost-effective delivery.
What is the warranty of goods?
All products come with a one-year warranty.
How long is the logistics cycle?
Delivery times vary between in-stock items and special orders. Please contact your ACH business manager for specific timelines.
