IFM EVF565 Wirable Socket | Industrial M12 Connection Solution
Product Description
IFM Electronic GmbH is a German industrial automation specialist founded in 1969 and headquartered in Essen. The company specializes in sensors, controllers and connectivity solutions for industrial applications. Its product range includes position sensors, flow meters, condition monitoring systems and IO-Link communication devices. Serving sectors like automotive, food processing and machinery manufacturing, IFM operates globally with subsidiaries in over 70 countries. The company is recognized for innovative IIoT-ready solutions that enable predictive maintenance and process optimization.
Product Overview

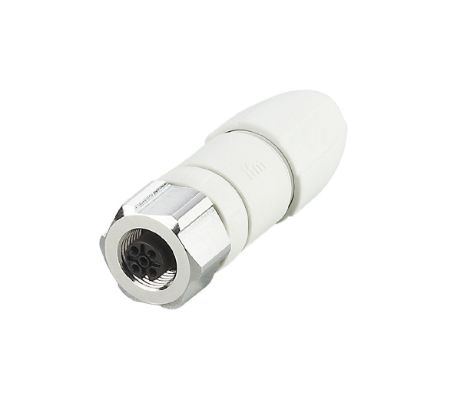

The IFM EVF565 is a high-performance wirable socket designed for reliable electrical connections in harsh industrial environments. This M12 socket features gold-plated contacts and robust construction, making it ideal for applications requiring secure, corrosion-resistant connections in demanding conditions including food industry and wet environments.
Key Features
-
Gold-Plated Contacts - Superior conductivity and corrosion resistance
-
High Protection Rating - IP65, IP67, IP68, and IP69K ratings for extreme conditions
-
Silicone-Free Construction - Suitable for food and hygienic applications
-
Wide Temperature Range - Operates from -25°C to +100°C
-
Screw Terminal Connection - Secure wiring with screw terminals
-
Stainless Steel Components - 316L stainless steel for corrosion resistance
-
Multiple IP Ratings - Comprehensive environmental protection
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
EVF565 (SDOGH040VASFKPG) |
|
Product Type |
Wirable Socket |
|
Connector Type |
M12, Straight |
|
Coding |
A-coded |
|
Contacts |
Gold-plated |
|
Protection Rating |
IP65, IP67, IP68, IP69K |
|
Operating Voltage |
<250V AC / <300V DC |
|
Current Rating |
4A total (@40°C) |
|
Protection Class |
II |
|
Operating Temperature |
-25°C to +100°C |
|
Storage Temperature |
-25°C to +55°C |
|
Wire Size |
0.25-1.0mm² (23-17 AWG) |
|
Cable Diameter |
Ø3.5-6mm |
|
Housing Material |
PA 6.6 (Grey) |
|
Locking Nut Material |
316L Stainless Steel (1.4404) |
|
Sealing Material |
EPDM |
|
Weight |
40.1g |
|
Tightening Torque |
0.6-1.2Nm |
Electrical Characteristics
Connection Specifications
-
Contact Material | Gold-plated for optimal conductivity
-
Contact Resistance | Low resistance for reliable signal transmission
-
Insulation Resistance | High insulation resistance values
-
Dielectric Strength | Rated for industrial voltage levels
Performance Data
-
Maximum Current | 4A total current capacity
-
Voltage Rating | 250V AC / 300V DC maximum
-
Contact Configuration | Standard M12 A-coding pinout
-
Wiring Method | Screw terminal connections
Mechanical Specifications
Construction Details
-
Housing Material | PA 6.6 (polyamide) grey
-
Locking Mechanism | 316L stainless steel nut
-
Sealing System | EPDM seals for environmental protection
-
Strain Relief | Integrated cable strain relief
Environmental Protection
-
IP65 Rating | Dust-tight and water jet protected
-
IP67 Rating | Temporary immersion protection (1m for 30min)
-
IP68 Rating | Continuous immersion protection
-
IP69K Rating | High-pressure steam jet cleaning
Applications
The IFM EVF565 is ideal for:
-
Food Processing - Hygienic areas and washdown environments
-
Beverage Industry - Production line connections
-
Pharmaceutical - Clean room and process applications
-
Chemical Processing - Corrosive environment applications
-
Water Treatment - Wet and humid conditions
-
Industrial Automation - Sensor and actuator connections
-
Mobile Machinery - Vibration-resistant applications
Installation & Wiring
Wiring Instructions
-
Wire Preparation | Strip length 7-8mm recommended
-
Terminal Tightening | 0.5-0.6Nm torque for secure connection
-
Wire Range | 0.25-1.0mm² (23-17 AWG)
-
Cable Diameter | Accommodates Ø3.5-6mm cables
Connection Procedure
-
Prepare cable to required specifications
-
Insert wires into appropriate terminals
-
Tighten screws to specified torque
-
Ensure proper cable strain relief
-
Verify IP rating integrity after assembly
Certifications & Compliance
-
Protection Standards:
-
IP65/67/68/69K protection ratings
-
Protection Class II
-
-
Material Compliance:
-
Silicone-free construction
-
FDA compliant materials for food industry
-
-
Environmental Standards:
-
DIN EN 60947-5-2 compliant
-
RoHS compliant
-
-
Quality Standards:
-
ISO 9001 manufacturing
-
Why Choose IFM EVF565?
-
Exceptional Reliability - Gold-plated contacts ensure stable connections
-
Environmental Durability - Multiple IP ratings for harsh conditions
-
Industry Compliance - Suitable for food and hygienic applications
-
Easy Installation - Screw terminal design for secure wiring
-
Corrosion Resistance - 316L stainless steel components
-
Temperature Resilience | Wide operating temperature range
-
Global Standards | International compliance and certifications
Maintenance & Service
-
Visual Inspection | Regular check of contacts and seals
-
Cleaning Procedure | Compatible with industrial cleaning methods
-
Seal Replacement | Periodic seal inspection recommended
-
Terminal Check | Verify screw terminal tightness periodically
-
Environmental Protection | Maintain IP rating integrity
