E43918 Welding Adapter For Process Sensors Tank Installation Solution IFM
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Leakage Current: | ≤ 0.5 MA | No-load Current: | ≤ 20 MA |
|---|---|---|---|
| Short-circuit Protection: | Pulse | Reverse Polarity Protection: | Yes |
| Switching Frequency: | 0 ... 230 Hz | Hysteresis: | Typically 5% |
| Highlight: | E43918 welding adapter,IFM welding adapter,IFM welding adapters |
||
IFM E43918 Welding Adapter for Process Sensors | Tank Installation Solution
Product Description
IFM Electronic GmbH is a German industrial automation specialist founded in 1969 and headquartered in Essen. The company specializes in sensors, controllers and connectivity solutions for industrial applications. Its product range includes position sensors, flow meters, condition monitoring systems and IO-Link communication devices. Serving sectors like automotive, food processing and machinery manufacturing, IFM operates globally with subsidiaries in over 70 countries. The company is recognized for innovative IIoT-ready solutions that enable predictive maintenance and process optimization.
Product Overview

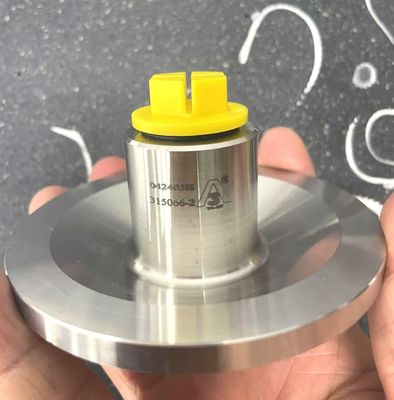

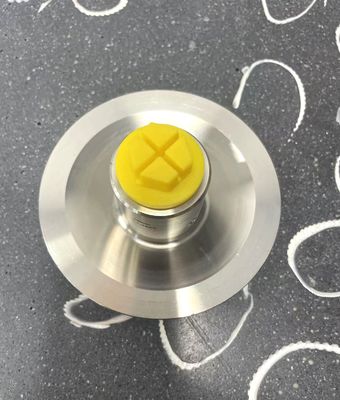

The IFM E43918 is a high-performance welding adapter designed specifically for process sensor installation in industrial tank applications. This robust stainless steel adapter provides a secure and leak-proof connection point for various process sensors, enabling reliable monitoring of liquid levels, pressure, and other process variables in storage tanks and process vessels.
Key Features
-
Tank Wall Installation - Designed for tank bottom and side wall mounting
-
Stainless Steel Construction - 316L stainless steel for corrosion resistance
-
Leakage Port Design - Integrated leakage port (3A) for safety monitoring
-
High Pressure Rating - Suitable for demanding process applications
-
Sanitary Compatibility - Suitable for industrial and sanitary applications
-
Welding Compatibility - Designed for easy welding installation
-
Process Connection - Standard G½ sealing cone for sensor mounting
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
E43918 |
|
Product Type |
Welding Adapter |
|
Body Material |
Stainless Steel 1.4435 / 316L |
|
Pressure Rating |
50 bar (5 MPa) |
|
Process Connection |
G½ sealing cone |
|
Adapter Diameter |
Ø84.8 mm |
|
Surface Finish |
Ra < 0.4 µm, Rz < 4 µm |
|
Weight |
383.1 grams |
|
Installation Type |
Welding connection |
|
Leakage Port |
3A standard leakage port |
|
Application |
Tank bottom and wall mounting |
Design & Construction
Material Specifications
-
Wetted Parts | 316L stainless steel (1.4435)
-
Surface Quality | Ra < 0.4 µm, Rz < 4 µm surface finish
-
Corrosion Resistance | Excellent resistance to corrosive media
-
Mechanical Strength | High tensile strength for pressure applications
Connection Specifications
-
Sensor Connection | G½ female thread with sealing cone
-
Welding Interface | Ø84.8 mm welding surface
-
Leakage Detection | Integrated 3A leakage port
-
Sealing System | Metal-to-metal sealing
Performance Characteristics
Pressure Performance
-
Maximum Pressure | 50 bar operating pressure
-
Burst Pressure | Significantly higher than operating rating
-
Pressure Cycling | Designed for repeated pressure cycles
-
Leak Integrity | Leak-tight performance under pressure
Temperature Performance
-
Operating Temperature | Compatible with process temperatures
-
Thermal Expansion | Matched thermal properties with tank materials
-
Welding Compatibility | Suitable for standard welding procedures
Applications
The IFM E43918 is ideal for:
-
Storage Tanks - Liquid level monitoring in storage vessels
-
Process Vessels - Pressure and temperature monitoring in reactors
-
Chemical Processing - Corrosive media containment systems
-
Food & Beverage - Sanitary process applications
-
Pharmaceutical - Clean process environment monitoring
-
Water Treatment - Tank level monitoring systems
-
Industrial Processing - General process tank applications
Installation Requirements
Welding Preparation
-
Surface Preparation | Proper cleaning and surface preparation required
-
Welding Procedure | Standard welding techniques applicable
-
Material Compatibility | Compatible with common tank materials
-
Post-Weld Treatment | Recommended cleaning and passivation
Sensor Installation
-
Sensor Compatibility | Standard G½ process sensors
-
Sealing Method | Cone sealing for leak-tight connection
-
Torque Requirements | Manufacturer recommended torque values
-
Leak Testing | Recommended pressure testing after installation
Safety & Compliance
Design Standards
-
Pressure Equipment | Designed per pressure equipment requirements
-
Material Standards | 316L stainless steel compliance
-
Surface Standards | Meet process industry surface finish requirements
Application Considerations
-
Media Compatibility | Verify compatibility with process media
-
Pressure Conditions | Do not exceed 50 bar operating pressure
-
Temperature Limits | Consider thermal expansion characteristics
-
Welding Qualifications | Use qualified welding procedures
Why Choose IFM E43918?
-
Reliable Performance - IFM quality and reliability in process connections
-
Material Quality - High-grade 316L stainless steel construction
-
Safety Features - Integrated leakage port for safety monitoring
-
Easy Installation - Designed for straightforward welding installation
-
Process Compatibility - Suitable for various industrial applications
-
Global Standards - Meets international industrial standards
-
Technical Support - Backed by IFM's application expertise
Maintenance & Service
-
Visual Inspection | Regular inspection of welds and connections
-
Leak Testing | Periodic leak testing recommended
-
Surface Cleaning | Appropriate cleaning for process requirements
-
Seal Inspection | Check sensor sealing surface regularly
-
Documentation | Maintain installation and maintenance records
