PEPPERL+FUCHS UC6000-30GM70-2E2R2-V15 Ultrasonic sensor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Voltage: | 12 ... 30 V DC | Switching Current: | Max. 150 MA Per Output |
|---|---|---|---|
| Repeat Accuracy: | ± 9 Mm | Synchronization: | Yes (up To 10 Sensors) |
| Temperature Drift: | ≤ ± 1.5 % Of Full-scale Value | Programming Interface: | Infrared (via ULTRA-PROG-IR Software) |
| Highlight: | PEPPERL+FUCHS ultrasonic sensor with warranty,UC6000 ultrasonic sensor safety barrier,Ultrasonic sensor 30GM70-2E2R2-V15 |
||

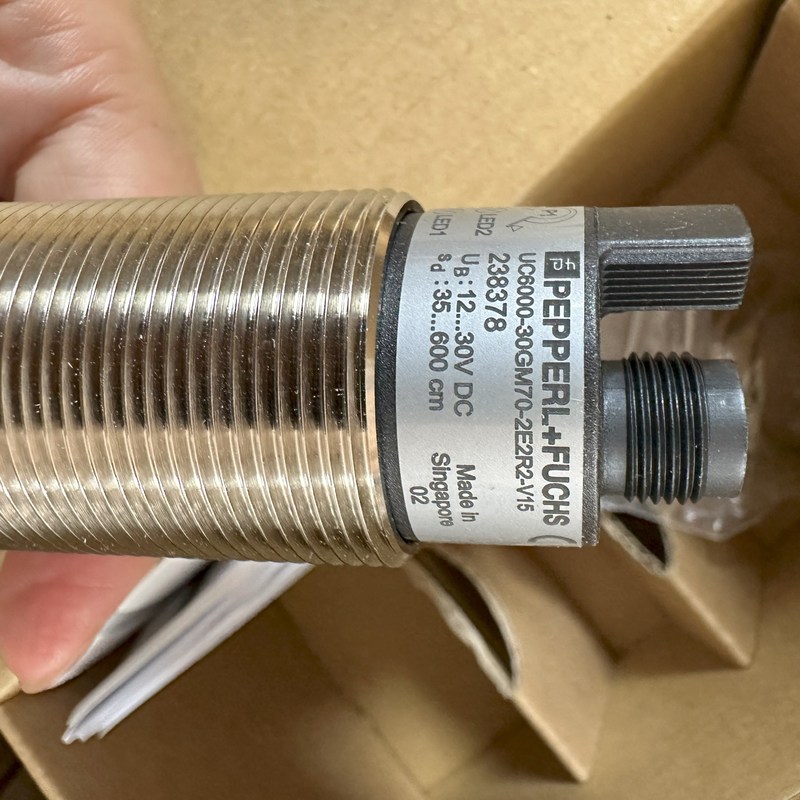

UC6000-30GM70-2E2R2-V15 | PEPPERL+FUCHS | Ultrasonic sensor
Product Description
The PEPPERL+FUCHS UC6000-30GM70-2E2R2-V15 is an industrial ultrasonic proximity sensor designed for long-range object detection from 350 mm to 6000 mm. It features two programmable PNP switch outputs, synchronization capabilities to avoid interference with multiple sensors, and temperature compensation for stable performance in environments from -25°C to +70°C. Encased in a nickel-plated brass housing with IP65 protection, this robust sensor is suitable for detecting solids, liquids, or powders in demanding applications. Its parameters can be configured via infrared interface using the ULTRA-PROG-IR software.
Key Features
-
Detection Range: 350 mm to 6000 mm (adjustable from 400 mm to 6000 mm) with a dead band of 0–350 mm.
-
Dual Switching Outputs: Two PNP normally open (NO) switch outputs (programmable to NC), each with a switching current of up to 150 mA and short-circuit/overload protection.
-
High Accuracy: Repeat accuracy of ±9 mm and temperature drift ≤ ±1.5% of the full-scale value.
-
Synchronization Support: Allows synchronization of up to 10 sensors to avoid interference.
-
Robust Design: Nickel-plated brass housing, IP65 protection rating, and resistance to shock (30 g) and vibration (10–55 Hz).
Technical Specifications
| Model Number | UC6000-30GM70-2E2R2-V15 |
| Sensor Type | Ultrasonic Proximity Sensor |
| Detection Range | 350 mm ... 6000 mm (adjustable from 400 mm) |
| Number of Outputs | 2 x PNP, Normally Open (programmable) |
| Housing Material | Nickel-plated Brass |
| Protection Rating | IP65 |
