Product Overview

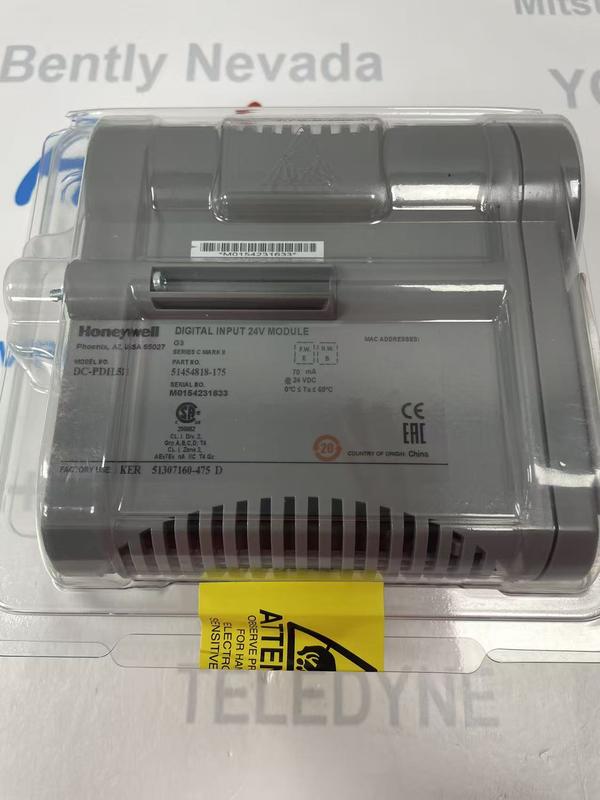

The ​Honeywell DC-PDIL51 Digital Input Module​ is a high-performance, high-density digital input interface designed for industrial automation and process control systems. Part of Honeywell's comprehensive control system portfolio, this module provides reliable digital signal acquisition for monitoring discrete field devices in demanding industrial environments. With its compact design and advanced diagnostics, it offers efficient integration into distributed control systems (DCS) and safety instrumented systems (SIS).

Key Features

• ​High-Density Design​ - 32 digital input channels in single module

• ​Digital Signal Processing​ - Advanced diagnostics and signal conditioning

• ​Universal Voltage Compatibility​ - Wide input voltage range support

• ​Advanced Diagnostics​ - Channel-level health monitoring and fault detection

• ​Hot Swappable​ - Online replacement without system shutdown

• ​LED Status Indicators​ - Per-channel status visualization

• ​Robust Construction​ - Industrial-grade components for harsh environments

• ​Safety Certified​ - SIL 2/3 capable for safety applications

Technical Specifications

Input Characteristics

Electrical Specifications

• ​Voltage Ranges:

  • 0-30V DC (low range)

  • 0-60V DC (high range)

• ​Input Impedance:

  • 6.8kΩ nominal

• ​Threshold Levels:

  • ON State: 15-30V DC (low range), 30-60V DC (high range)

  • OFF State: 0-5V DC (low range), 0-10V DC (high range)

• ​Hysteresis:

  • 5V typical

Performance Specifications

• ​Accuracy:

  • ±0.1% of reading ±1 digit

• ​Update Rate:

  • 1ms per channel (all channels)

• ​Common Mode Rejection:

  • 100dB at 60Hz

• ​Normal Mode Rejection:

  • 60dB at 60Hz

Advanced Functionality

Diagnostic Features

• ​Channel Diagnostics:

  • Open wire detection

  • Short circuit detection

  • Over-voltage protection

  • Under-voltage detection

• ​Module Diagnostics:

  • Power supply monitoring

  • Communication status

  • Temperature monitoring

  • Self-test capabilities

Configuration Options

• ​Input Type Selection:

  • Sinking or sourcing configuration

  • Voltage range selection

• ​Filter Settings:

  • Adjustable debounce time (1-100ms)

  • Noise filtering options

• ​Alarm Configuration:

  • High/low alarm settings

  • Fault action configuration

Communication Features

• ​Backplane Protocol:

  • Redundant communication paths

  • High-speed data transfer

• ​Diagnostic Data:

  • Channel status information

  • Module health data

  • Event logging capability

• ​Configuration:

  • Software-configurable parameters

  • Online configuration changes

Applications

The Honeywell DC-PDIL51 is ideal for:

• ​Process Industries​ - Pump status, valve position, limit switch monitoring

• ​Manufacturing​ - Machine status, safety interlock monitoring

• ​Power Generation​ - Breaker status, relay monitoring, alarm conditions

• ​Oil & Gas​ - Wellhead monitoring, safety system inputs

• ​Water Treatment​ - Pump control, level switch monitoring

• ​HVAC Systems​ - Equipment status, alarm monitoring

• ​Safety Systems​ - Emergency stop, safety interlock monitoring

Design & Construction

• ​Compact Design​ - High-density 32-channel configuration

• ​Robust Housing​ - Industrial-grade metal enclosure

• ​Terminal Connections​ - Removable terminal blocks

• ​LED Indicators​ - Per-channel status LEDs

• ​Cooling System​ - Passive cooling design

• ​Mounting​ - DIN rail or panel mounting

• ​Environmental Protection​ - Conformal coated PCB

Installation & Operation

Mounting Configuration

• ​DIN Rail Mounting​ - Standard 35mm DIN rail

• ​Panel Mounting​ - Optional panel mount kit

• ​Orientation​ - Horizontal or vertical mounting

• ​Spacing Requirements​ - Minimum 25mm side clearance

Wiring Specifications

• ​Terminal Type​ - Removable screw terminal blocks

• ​Wire Size​ - 0.2-2.5mm² (24-12 AWG)

• ​Torque Specification​ - 0.5-0.6 Nm

• ​Wire Preparation​ - Strip length 7-8mm

• ​Shielding​ - Recommended shielded cable for noise immunity

Power Requirements

• ​Supply Voltage​ - 24V DC nominal (18-60V DC range)

• ​Power Consumption​ - 2.5W typical, 3.5W maximum

• ​Inrush Current​ - 5A maximum for 10ms

• ​Reverse Polarity Protection​ - Built-in protection

Performance Characteristics

• ​Accuracy:

  • Voltage measurement: ±0.1% of reading

  • Status detection: ±1% of threshold

• ​Response Time:

  • Default: 1ms

  • Configurable: 1-100ms

• ​Isolation:

  • Channel-to-channel: 500Vrms

  • Channel-to-system: 1500Vrms

• ​Long-term Stability:

  • ±0.05% per year

Certifications & Compliance

• ​Safety Certifications:

  • ATEX II 3G Ex ec IIC T4 Gc

  • IECEx Ex ec IIC T4 Gc

  • UL Listed

  • CSA Certified

• ​Functional Safety:

  • SIL 2/3 capable

  • IEC 61508 compliant

• ​EMC Compliance:

  • EN 61326-1: Industrial environments

  • EN 61000-6-2: Immunity industrial

  • EN 61000-6-4: Emission industrial

• ​Environmental:

  • RoHS compliant

  • WEEE compliant

Why Choose Honeywell DC-PDIL51?

• ​High Density​ - 32 channels in compact form factor reduces cabinet space

• ​Advanced Diagnostics​ - Comprehensive health monitoring reduces downtime

• ​Flexible Configuration​ - Wide voltage range and configurable parameters

• ​Safety Certified​ - Suitable for safety instrumented systems

• ​Reliable Performance​ - Industrial-grade components for long service life

• ​Easy Integration​ - Compatible with Honeywell control systems

• ​Global Support​ - Backed by Honeywell's worldwide service network

Maintenance & Service

• ​Hot Swappable​ - Online replacement without system interruption

• ​Module Diagnostics​ - Comprehensive self-test and status reporting

• ​Field Serviceable​ - Easy replacement and configuration

• ​Lifecycle Management​ - Long-term availability and support

• ​Technical Documentation​ - Complete installation and maintenance guides

Note: Specifications are based on standard configurations. Consult Honeywell technical documentation for application-specific requirements and detailed performance data.
