Flush 8mm Inductive Proximity Sensor NBB8-18GM60-A2-V1 PNP 4 Wire Complementary
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connection Type: | M12 Connector Plug, 4-pin | Thread Size: | M18 X 1 |
|---|---|---|---|
| Degree Of Protection: | IP67, IP68 | Switching Frequency: | 0...1350 Hz |
| Operating Temperature: | -40...85 °C (-40...185 °F) | Output Type: | PNP, 4-wire |
| Highlight: | Flush 8mm inductive proximity sensor,NBB8-18GM60-A2-V1 8mm inductive proximity sensor,4 Wire inductive proximity switch sensor |
||
NJ10-30GM-N | Pepperl+Fuchs | Inductive Proximity Sensor
Product Description

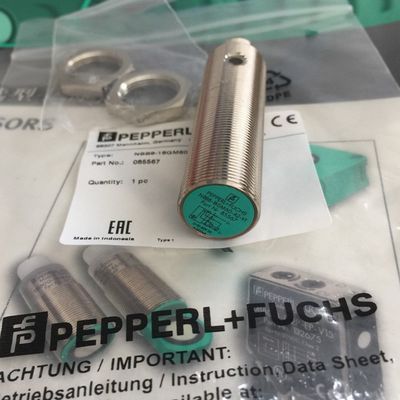

The Pepperl+Fuchs NBB8-18GM60-A2-V1 is an inductive proximity sensor designed for reliable non-contact object detection in industrial environments . It features an 8 mm flush-mounting range, an extended operating voltage of 5 to 36 V DC, and a wide temperature tolerance from -40 to 85 °C . This PNP, 4-wire sensor with complementary outputs (NO+NC) is housed in a nickel-plated brass M18 housing with an IP68 protection rating for durability . Its high switching frequency of up to 1350 Hz makes it suitable for high-speed automation applications .With an 8 mm flush-mounting design, it offers an extended operating distance and increased flexibility for installation in tight spaces . Its robust construction, featuring a nickel-plated brass housing, ensures durability in challenging environments, making it a versatile solution for a wide range of applications .
Key Features
- Extended Voltage Range & Wide Temperature Tolerance: Operating on a wide voltage range of 5 to 36 V DC and within a temperature range of -40 to 85 °C, this sensor guarantees stable performance in applications with fluctuating power supplies and extreme ambient conditions .
- High Switching Frequency: With a maximum switching frequency of 1350 Hz, the sensor is capable of detecting fast-moving objects, making it ideal for high-speed automation processes .
- Complementary Outputs: The PNP configuration provides both Normally Open (NO) and Normally Closed (NC) signals simultaneously, offering greater wiring flexibility and control logic options for your system .
- Robust Protection: Certified with IP67 and IP68 protection ratings, the sensor is protected against dust and temporary immersion, ensuring reliable operation in demanding industrial settings .
Technical Specifications
| Product Category | Inductive Proximity Sensor |
| Rated Operating Distance | 8mm |
| Installation | Flush |
| Output Type | PNP, 4-wire, Complementary (NO+NC) |
| Supply Voltage | 5...36 V DC |
| Housing Material | Nickel-plated brass |
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
