Product Overview

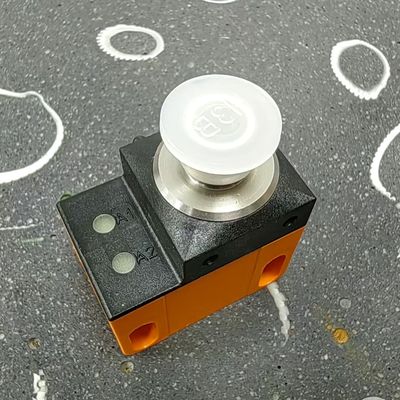

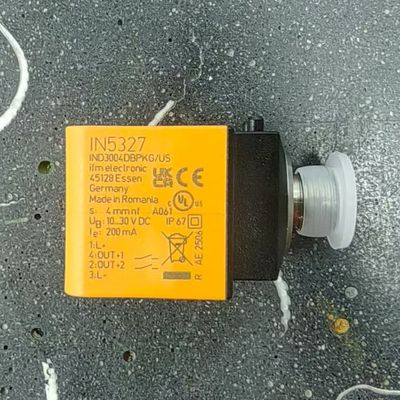

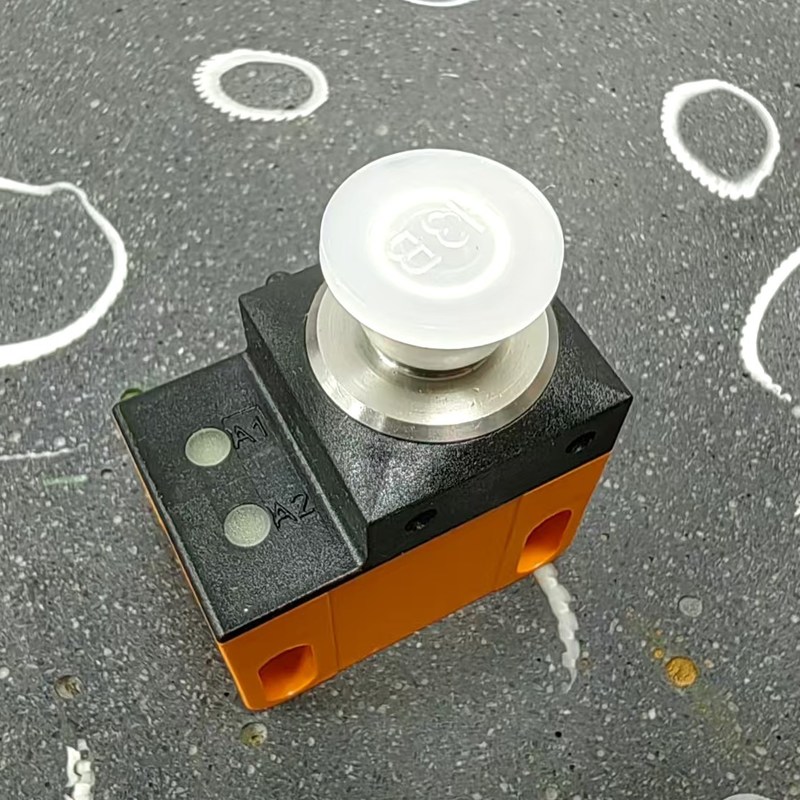

The ​IFM IN5327​ is a high-performance inductive dual sensor specifically designed for valve actuator position monitoring in industrial applications. This robust sensor features two independent sensing elements in a compact housing, providing reliable position feedback for valve control systems. With gold-plated contacts and high vibration resistance, it ensures accurate detection in demanding environments.

Key Features

• ​Dual Sensing Technology​ - Two independent sensors in one housing

• ​Valve Position Monitoring​ - Specifically designed for valve actuator applications

• ​Gold-Plated Contacts​ - Superior conductivity and corrosion resistance

• ​High Vibration Resistance​ - Designed for demanding industrial environments

• ​Quick Installation​ - Three-screw mounting system for easy setup

• ​Self-Cleaning Design​ - Non-contact operation prevents contamination

• ​LED Status Indicators​ - Visual feedback for both sensors

Technical Specifications

Electrical Characteristics

Power Specifications

• ​Voltage Range​ | 10-36V DC operating voltage

• ​Current Draw​ | 15mA typical at 24V DC

• ​Reverse Polarity​ | Protected against reverse voltage

• ​Protection Class​ | Class II

Output Specifications

• ​Output Configuration​ | 2 independent PNP outputs

• ​Output Function​ | Normally open (NO)

• ​Maximum Current​ | 250mA per output

• ​Voltage Drop​ | ≤2.5V DC at rated current

• ​Short-Circuit Protection​ | Pulsed protection with auto-recovery

• ​Overload Protection​ | Electronic overload protection

Performance Characteristics

Sensing Performance

• ​Sensing Distance​ | 4mm ±10%

• ​Operating Distance​ | 0-3.25mm

• ​Hysteresis​ | 1-15% of sensing distance

• ​Response Time​ | <0.4ms typical

• ​Repeat Accuracy​ | ±10% of sensing distance

Material Sensitivity

• ​Correction Factors:

  • Steel: 1.0

  • Stainless Steel: 0.7

  • Brass: 0.4

  • Aluminum: 0.3

  • Copper: 0.2

Mechanical Specifications

Construction Details

• ​Housing Material​ | PBT (glass-fiber reinforced)

• ​Connector Material​ | Stainless steel M12 connector

• ​Contact Material​ | Gold-plated contacts

• ​Sealing​ | IP67 rated seals

Mounting Specifications

• ​Mounting Method​ | Three-screw mounting

• ​Mounting Orientation​ | Any position

• ​Non-Flush Mounting​ | Requires air gap around sensing area

• ​Mounting Torque​ | Standard screw torque values

Connection & Interface

Electrical Connection

• ​Connector Type​ | M12, 4-pin, A-coded

• ​Pin Configuration:

  • Pin 1: Output 1

  • Pin 2: Output 2

  • Pin 3: 0V DC

  • Pin 4: +V DC

• ​Cable Options​ | M12 connector for cable connection

Status Indicators

• ​LED Indicators​ | 2 yellow LEDs (one for each sensor)

• ​Status Indication​ | LED on when target detected

• ​Visual Feedback​ | Easy status monitoring

Applications

The IFM IN5327 is ideal for:

• ​Valve Actuators​ - Position monitoring and feedback

• ​Process Control​ - Valve position verification

• ​Fluid Handling​ - Pump and valve status monitoring

• ​Industrial Automation​ - Machine control and positioning

• ​Manufacturing Equipment​ - Position sensing in automated systems

• ​Material Handling​ - Conveyor system position detection

• ​Robotic Systems​ - End effector position verification

Certifications & Compliance

• ​EMC Standards:

  • EN 60947-5-2 (Industrial equipment)

  • EN 55011 Class B (Emissions)

• ​Safety Standards:

  • UL Listed (File number UL E174191)

  • Protection Class II

• ​Environmental Standards:

  • IP67 protection rating

  • RoHS compliant

• ​Quality Standards:

  • MTTF: 1064 years (Mean Time To Failure)

  • ISO 9001 manufacturing

Installation & Operation

Mounting Instructions

• ​Mounting Preparation​ | Clean mounting surface

• ​Screw Installation​ | Use three mounting screws

• ​Sensing Gap​ | Maintain proper clearance around sensor

• ​Alignment​ | Ensure proper alignment with target

Electrical Installation

• ​Voltage Supply​ | 10-36V DC power source

• ​Load Connection​ | Connect load between output and ground

• ​Cable Connection​ | M12 connector mating

• ​Polarity Observation​ | Observe correct polarity

Why Choose IFM IN5327?

• ​Dual Sensor Design​ - Two independent sensors in compact package

• ​Valve-Specific Design​ - Optimized for valve actuator applications

• ​High Reliability​ - Gold-plated contacts and robust construction

• ​Easy Installation​ - Quick three-screw mounting system

• ​Environmental Resistance​ | IP67 rating for harsh conditions

• ​High Performance​ | Fast 1300Hz switching frequency

• ​Global Compliance​ | International certifications and approvals

Maintenance & Service

• ​Visual Inspection​ | Regular check of housing and connector

• ​Cleaning​ | Clean sensing face as needed

• ​Functional Test​ | Verify operation with test target

• ​Connector Check​ | Inspect M12 connector for damage

• ​Documentation​ | Keep installation records
