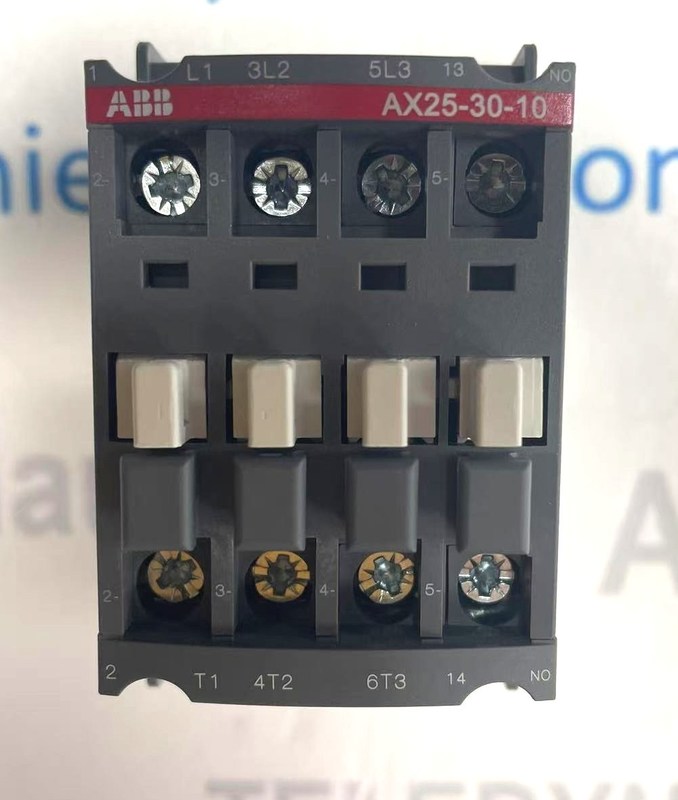

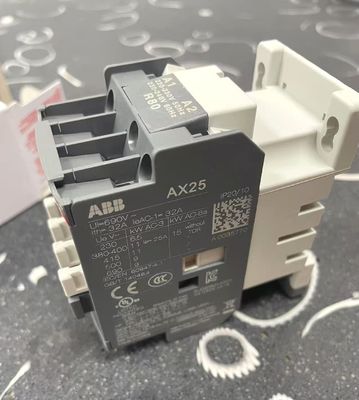

ABB AX25-30-10-80 Industrial Circuit Breaker Advanced Protection Device
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Leakage Current: | ≤ 0.5 MA | No-load Current: | ≤ 20 MA |
|---|---|---|---|
| Short-circuit Protection: | Pulse | Reverse Polarity Protection: | Yes |
| Switching Frequency: | 0 ... 230 Hz | Hysteresis: | Typically 5% |
| Highlight: | ABB industrial circuit breaker,25A industrial circuit breaker,ax25 30 10 80 |
||
ABB AX25-30-10-80 | Industrial Circuit Breaker | Advanced Protection Device
Product Description
ABB (Asea Brown Boveri) is a pioneering Swiss-Swedish multinational corporation specializing in electrification, industrial automation, robotics, and motion technologies. Founded in 1988 through the merger of ASEA (Sweden) and BBC Brown Boveri (Switzerland), ABB's innovative products include industrial robots, PLCs, drives, and smart grid solutions. Serving sectors like manufacturing, energy, and transportation globally, ABB drives digital transformation with its Industry 4.0-ready technologies and commitment to sustainable operations.
Product Overview
The ABB AX25-30-10-80 is a high-performance industrial circuit breaker designed for reliable circuit protection in demanding electrical distribution systems. Part of ABB's comprehensive circuit protection portfolio, this advanced breaker combines precise overcurrent protection with modern safety features, providing exceptional performance for industrial, commercial, and utility applications. With its robust construction and intelligent protection capabilities, it ensures electrical system safety and reliability.
Key Features
-
Advanced Protection - Precise overcurrent and short-circuit protection
-
Compact Design - Space-efficient form factor for panel optimization
-
High Breaking Capacity - Superior fault current interruption capability
-
Adjustable Settings - Configurable protection parameters
-
Visual Indicators - Clear status and trip indication
-
Easy Installation - DIN rail mounting for quick deployment
-
Robust Construction - Industrial-grade materials for longevity
-
Safety Compliance - Meets international safety standards
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
AX25-30-10-80 |
|
Product Type |
Industrial Circuit Breaker |
|
Pole Configuration |
3P (Three Pole) |
|
Rated Current |
25A |
|
Rated Voltage |
400V AC |
|
Rated Frequency |
50/60Hz |
|
Breaking Capacity |
30kA at 400V AC |
|
Trip Characteristics |
Adjustable (typically B, C, or D curve) |
|
Rated Insulation Voltage |
800V |
|
Rated Impulse Voltage |
8kV |
|
Mounting |
DIN Rail (35mm) |
|
Electrical Life |
10,000 operations |
|
Mechanical Life |
20,000 operations |
|
Operating Temperature |
-25°C to +60°C |
|
Protection Degree |
IP20 (front) |
|
Weight |
Approximately 0.5kg |
Electrical Characteristics
Rating Specifications
-
Rated Current (In) | 25A
-
Rated Voltage (Ue) | 400V AC
-
Rated Frequency | 50/60Hz
-
Rated Short-circuit Capacity (Icn) | 30kA at 400V AC
-
Utilization Category | A (according to IEC 60947-2)
-
Pollution Degree | 3
Protection Characteristics
-
Overload Protection | Adjustable thermal magnetic trip
-
Short-circuit Protection | Electromagnetic instant trip
-
Trip Curve | Configurable characteristics (B/C/D)
-
Time-Current Characteristics | Inverse time delay for overloads
Performance Data
-
Breaking Capacity | 30,000A at 400V AC
-
Energy Limiting Class | 3
-
Contact Position Indicator | Visible ON/OFF position
-
Trip Indicator | Visual and mechanical trip indication
Mechanical Specifications
Physical Dimensions
-
Number of Poles | 3 Poles
-
Module Width | 54mm (3 modules)
-
Height | 85mm
-
Depth | 75mm
-
Mounting | 35mm DIN rail
-
Terminal Type | Screw terminals
-
Torque Specification | 2.5-3.0 Nm
Construction Details
-
Housing Material | Thermoplastic (flame-retardant, self-extinguishing)
-
Contact Material | Silver alloy with arc-resistant properties
-
Arc Chute | Advanced de-ion arc quenching system
-
Operating Mechanism | Quick-make, quick-break mechanism
-
Terminal Design | Cage clamp technology for secure connections
Protection Features
Adjustable Settings
-
Overload Protection | Adjustable current setting
-
Short-circuit Protection | Adjustable instantaneous trip
-
Time Delays | Configurable delay characteristics
-
Ground Fault Protection | Optional ground fault capability
Safety Features
-
Isolation Function | Safe isolation capability
-
Shock Protection | Touch-safe terminal design
-
Arc Containment | Effective arc flash protection
-
Mechanical Interlock | Prevent accidental operation
Applications
The ABB AX25-30-10-80 is ideal for:
-
Industrial Plants - Machine and equipment circuit protection
-
Commercial Buildings - Distribution board protection
-
Data Centers - Critical power distribution protection
-
HVAC Systems - Large heating and cooling equipment
-
Manufacturing Facilities - Production line power distribution
-
Utility Applications - Electrical distribution systems
-
Renewable Energy - Solar and wind power systems
Installation & Operation
Mounting Requirements
-
DIN Rail Mounting | Standard 35mm DIN rail
-
Orientation | Any mounting position
-
Spacing | Adequate ventilation space required
-
Group Mounting | Can be mounted adjacent to other devices
Electrical Connections
-
Wire Size | 1.5-35mm² (AWG 16-2)
-
Terminal Type | Screw terminals with pressure plates
-
Torque Settings | 2.5-3.0 Nm recommended
-
Connection Preparation | Strip length 10-12mm
-
Busbar Connection | Compatible with standard busbars
Operation
-
Manual Operation | ON/OFF toggle handle
-
Trip Indication | Visual trip position indicator
-
Reset Operation | Manual reset after tripping
-
Status Monitoring | Clear position indication
Certifications & Compliance
-
International Standards:
-
IEC 60947-2
-
EN 60947-2
-
UL 489
-
CE Marked
-
-
Safety Certifications:
-
Short-circuit tested to 30kA
-
Overload tested to standards
-
-
Quality Standards:
-
ISO 9001 manufacturing
-
RoHS compliant
-
-
Environmental Ratings:
-
Operating temperature: -25°C to +60°C
-
Storage temperature: -40°C to +70°C
-
Why Choose ABB AX25-30-10-80?
-
Reliable Protection - ABB's quality and performance assurance
-
High Breaking Capacity - 30kA interruption capability
-
Adjustable Settings - Customizable protection parameters
-
Compact Design - Space-efficient 3-module width
-
Easy Installation - DIN rail mounting and clear termination
-
Visual Indication - Clear ON/OFF and trip status
-
Global Compliance - International standards certification
-
Technical Support - Backed by ABB's global network
Maintenance & Service
-
Visual Inspection | Regular check of physical condition
-
Operational Test | Periodic manual operation test
-
Connection Check | Verify terminal tightness
-
Environmental Check | Ensure operating within temperature limits
-
Functional Test | Verify trip characteristics periodically
