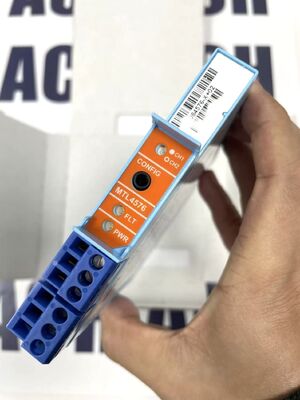

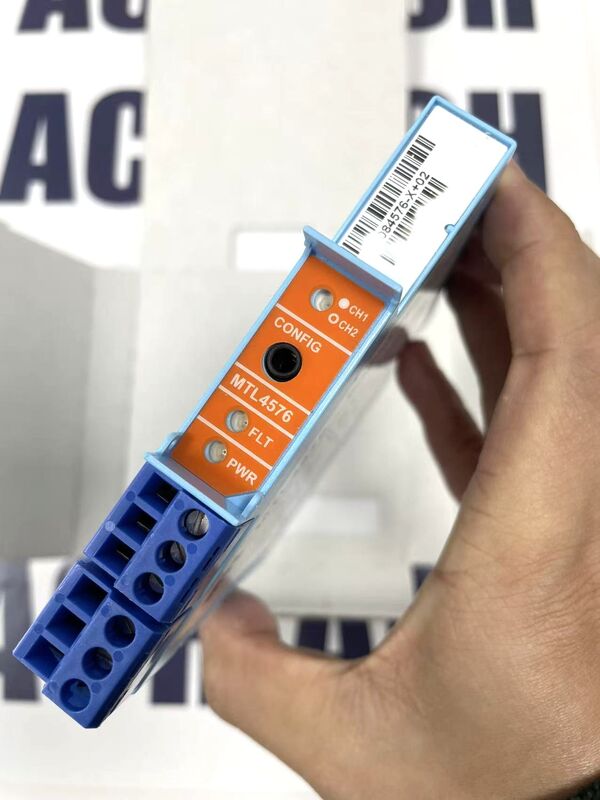

MTL 4576 | IS-Barrier (Safety Barrier) for Analog Signals
Product Overview
The MTL 4576 is a galvanic isolator and safety barrier designed to protect signals in hazardous areas. It is used to interface a 2-wire, 4-20 mA transmitter located in a potentially explosive atmosphere (Zones 0, 1, 2, 20, 21, 22) with control system equipment in the safe area. It provides intrinsic safety (IS) protection by limiting the energy that can reach the hazardous area, preventing ignition.
Key Features
-
Intrinsic Safety (IS) Protection: Certified for use with field devices in hazardous areas.
-
Galvanic Isolation: Provides 1500V AC isolation between input, output, and power circuits, eliminating ground loops and protecting equipment.
-
Signal Conditioning: Passes a standard 4-20 mA analog signal with high accuracy.
-
Compact Design: Part of the MTL 7000 Series, designed for high-density DIN-rail mounting.
-
Live Maintenance: Allows for safe disconnection and connection ("hot swapping") in the safe area without shutting down the hazardous area circuit.
-
Robust & Reliable: High-performance design for critical process safety applications.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
4576 (Base Model. Specific suffix required for full code, e.g., 4576-Ω1) |
|
Manufacturer |
MTL (MTL Instruments, part of ABB) |
|
Type |
Galvanically Isolated, 4-20 mA Input/Output Safety Barrier |
|
Hazardous Area (Field) |
Input (to Hazardous Area) |
|
Entity Parameters [Ui, Ii, Pi, Ci, Li] |
Typically Ui=28V, Ii=93mA, Pi=0.65W, Ci=∞, Li=∞ (Verify with specific model's certificate) |
|
Safe Area (Control System) |
Output (to Safe Area) |
|
Supply Voltage Range |
20 - 30V DC |
|
Nominal Voltage |
24V DC |
|
Input/Output Signal |
4-20 mA (Passive) |
|
Output Signal (to Control System) |
4-20 mA (Isolated) |
|
Maximum Load (in Safe Area) |
Typically 300Ω (at 24V supply) |
|
Voltage Drop (Intrinsically Safe Loop) |
Typically 7.0V (Check data sheet for exact value) |
|
Accuracy |
Typically ±0.1% of span |
|
Isolation |
1500V AC between input, output, and supply |
|
Operating Temperature |
-20°C to +60°C |
|
Mounting |
35mm DIN Rail |
|
Certifications |
ATEX, IECEx, UKEX, FM, CSA (Specific approvals vary by suffix/model) |
Applications
-
Process Industries: Connecting 4-20 mA transmitters (e.g., pressure, temperature, flow) from hazardous areas in oil & gas, chemical, and pharmaceutical plants to safe-area DCS/PLC systems.
-
Intrinsic Safety Loops: Forming a critical part of an intrinsically safe measurement circuit.
-
Signal Isolation and Ground Loop Elimination: Used even in non-hazardous areas for signal integrity.
Installation & Safety Notes
-
Must be installed in a safe area, typically within a certified enclosure with a separated power supply.
-
The intrinsically safe (field) wiring must be physically separated from non-intrinsically safe wiring as per standards.
-
Entity parameters (Ui, Ii, Pi, Ci, Li) must be checked against the field device's parameters to ensure compatibility and safety.
-
Correct model suffix selection is critical for the required certifications and system voltage.
