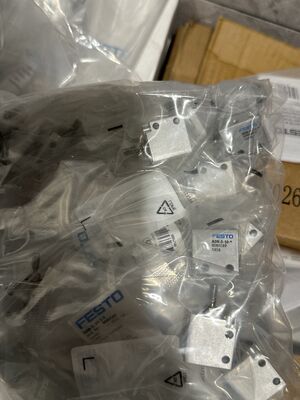

FESTO ADN-S-10-5-A Compact Cylinder

The FESTO ADN-S-10-5-A​ is a compact double-acting cylinder​ from the ADN-S series, featuring 10mm bore diameter​ and 5mm stroke. This compact pneumatic cylinder is designed for space-constrained automation applications requiring short-stroke linear motion. With no cushioning and external thread piston rod configuration, it provides a cost-effective solution for light-duty positioning and actuation tasks.

Key Features

• Compact Design:​ Small footprint ideal for tight installation spaces

• Double-Acting Operation:​ Provides force in both extension and retraction directions

• External Thread Piston Rod:​ Standard M5x0.8 thread for easy mounting

• No Cushioning:​ Basic configuration without end-position damping

• Lightweight Construction:​ Aluminum housing suitable for precision applications

• Wide Operating Pressure:​ 1-8 bar operating range for flexible use

Technical Specifications

Model Number Decoding (ADN-S-10-5-A)

• ADN-S:​ Series designation (Compact Cylinder Series, short version)

• 10:​ Bore diameter (10 mm)

• 5:​ Stroke length (5 mm)

• A:​ Piston rod type (A = external thread)

• No suffix:​ Indicates no cushioning and standard configuration

Note:​ The absence of cushioning designation (P, PPS, etc.) in the model number indicates this is a basic version without end-position damping.

Key Differences from Similar Models

Compared to other ADN-S series cylinders:

• ADN-S-10-5-A:​ 10mm bore, 5mm stroke, no cushioning, external thread (this model)

• ADN-S-10-5-A-P:​ Same bore/stroke but with elastic cushioning

• ADN-S-10-5-I:​ Same specifications but with internal thread piston rod

• ADN-S-10-10-A:​ Same bore but 10mm stroke

• ADN-S-16-5-A:​ 16mm bore with same stroke

The 5mm stroke​ and no cushioning​ make this model suitable for applications requiring very short, precise movements without the need for end-position damping.

Typical Applications

• Precision Positioning:​ Short-stroke positioning in small assembly automation

• Clamping Devices:​ Light-duty workpiece clamping in fixtures

• Valve Actuation:​ Operating small valves in control systems

• Electronics Assembly:​ Component insertion and placement operations

• Medical Equipment:​ Precise linear motion in medical devices

• Testing Equipment:​ Positioning in small test stands

• Light-Duty Actuation:​ General-purpose linear motion where damping is not required

Important Selection & Installation Notes

1. Stroke Consideration:​ The 5mm stroke is very short. Ensure this meets your application's movement requirements. For longer strokes, select appropriate models.

2. No Cushioning:​ This model has no end-position damping. For applications with high speeds or heavy loads, consider models with cushioning (P or PPS) to reduce impact and noise.

3. Operating Pressure:​ Do not exceed 8 bar maximum operating pressure. For optimal performance, operate between 4-6 bar.

4. Air Quality:​ Use filtered, lubricated or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. If using lubricated air, maintain consistent lubrication.

5. Mounting:​ Ensure proper alignment during installation to avoid side loads, which can reduce seal life.

6. Position Sensing:​ This model is compatible with proximity sensors for position detection. Ensure the piston has a magnetic ring (standard on most ADN-S models) if position sensing is required.

7. Light-Duty Applications:​ With 47N maximum force at 6 bar, this cylinder is suitable for light-duty applications only. For higher force requirements, select larger bore sizes.

8. Maintenance:​ Regular inspection of seals is recommended. Check for air leaks and proper operation periodically.

Note: Specifications are based on FESTO ADN-S series technical documentation and industry standards. The exact configuration for this specific model number includes 10mm bore, 5mm stroke, external thread piston rod, and no cushioning. For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official FESTO ADN-S Series Technical Manual​ or contact FESTO technical support.
