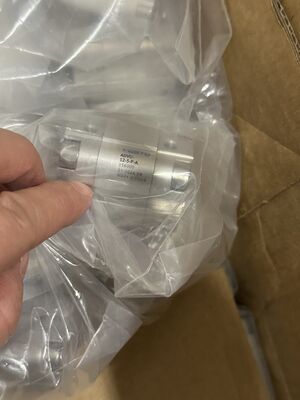

FESTO ADVU-12-5-P-A Compact Cylinder

The FESTO ADVU-12-5-P-A​ is a compact double-acting cylinder​ from the ADVU series, featuring 12mm bore diameter​ and 5mm stroke. This compact pneumatic cylinder is designed for space-constrained automation applications requiring short-stroke linear motion. With elastic cushioning (P) and female thread piston rod configuration, it provides reliable performance for light-duty positioning and actuation tasks in industrial automation systems.

Key Features

• Compact Design:​ Space-efficient footprint ideal for tight installation spaces

• Double-Acting Operation:​ Provides force in both extension and retraction directions

• Female Thread Piston Rod:​ Standard female thread for mounting accessories

• Elastic Cushioning:​ P-type cushioning rings/plates at both ends for smooth end-position damping

• Position Sensing Compatible:​ Supports proximity sensor installation for position detection

• Wide Operating Pressure:​ 1-10 bar operating range for flexible use

Technical Specifications

Model Number Decoding (ADVU-12-5-P-A)

• ADVU:​ Series designation (Compact Cylinder Series, double-acting)

• 12:​ Bore diameter (12 mm)

• 5:​ Stroke length (5 mm)

• P:​ Cushioning type (P = elastic cushioning rings/plates)

• A:​ Position sensing capability (A = compatible with proximity sensors)

Note:​ The absence of additional suffixes indicates standard configuration with female thread piston rod and standard temperature range.

Key Differences from Similar Models

Compared to other ADVU series cylinders:

• ADVU-12-5-P-A:​ 12mm bore, 5mm stroke, female thread, elastic cushioning (this model)

• ADVU-12-5-A-P-A:​ Same bore/stroke but with male thread piston rod

• ADVU-12-10-P-A:​ Same bore but 10mm stroke

• ADVU-16-5-P-A:​ 16mm bore with same stroke

• ADVU-12-5-P-A-S6:​ Same specifications but with heat-resistant seals (max 120°C)

The 5mm stroke​ and female thread configuration​ make this model suitable for applications requiring very short, precise movements with female-thread mounting accessories.

Typical Applications

• Precision Positioning:​ Short-stroke positioning in small assembly automation

• Clamping Devices:​ Light-duty workpiece clamping in fixtures

• Valve Actuation:​ Operating small valves in control systems

• Electronics Assembly:​ Component insertion and placement operations

• Medical Equipment:​ Precise linear motion in medical devices

• Testing Equipment:​ Positioning in small test stands

• Light-Duty Actuation:​ General-purpose linear motion in automation systems

Important Selection & Installation Notes

1. Stroke Consideration:​ The 5mm stroke is very short. Ensure this meets your application's movement requirements. For longer strokes, select appropriate models.

2. Piston Rod Thread:​ This model has female thread configuration. If you need male thread for direct mounting, select "A" type models (e.g., ADVU-12-5-A-P-A).

3. Cushioning Performance:​ P-type elastic cushioning provides basic end-position damping. For applications with higher speeds or heavier loads, consider models with adjustable cushioning if available.

4. Operating Pressure:​ Do not exceed 10 bar maximum operating pressure. For optimal performance and longevity, operate between 4-6 bar.

5. Air Quality:​ Use filtered, lubricated or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. If using lubricated air, maintain consistent lubrication.

6. Mounting:​ Ensure proper alignment during installation to avoid side loads, which can reduce seal life and cause premature failure.

7. Position Sensing:​ This model is compatible with proximity sensors for position detection. Ensure the piston has a magnetic ring (standard on most ADVU models) if position sensing is required.

8. Light-Duty Applications:​ With 68N maximum force at 6 bar, this cylinder is suitable for light-duty applications only. For higher force requirements, select larger bore sizes.

9. Maintenance:​ Regular inspection of seals is recommended. Check for air leaks and proper cushioning performance periodically.

Note: Specifications are based on FESTO ADVU series technical documentation and industry standards. The exact configuration for this specific model number includes 12mm bore, 5mm stroke, female thread piston rod, and elastic cushioning. For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official FESTO ADVU Series Technical Manual​ or contact FESTO technical support.
