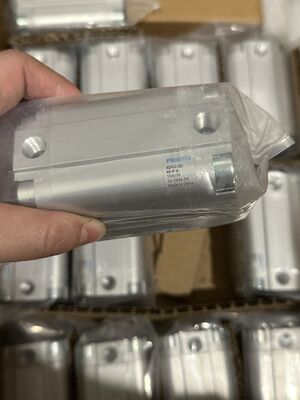

FESTO ADVU-32-40-P-A-01 Compact Cylinder

The FESTO ADVU-32-40-P-A-01​ is a compact double-acting cylinder​ from the ADVU series, featuring 32mm bore diameter​ and 40mm stroke. This pneumatic cylinder is designed for industrial automation applications requiring reliable linear motion with end-position damping. With elastic cushioning (P) and female thread piston rod configuration, it provides smooth operation for medium-duty applications. The "-01" suffix indicates a specific variant or special configuration within the ADVU series, typically related to special seals, materials, or mounting options.

Key Features

• Compact Design:​ Space-efficient footprint suitable for various mounting configurations

• Double-Acting Operation:​ Provides force in both extension and retraction directions

• Female Thread Piston Rod:​ Standard female thread for mounting accessories

• Elastic Cushioning:​ P-type cushioning rings/plates at both ends for smooth end-position damping

• Position Sensing Compatible:​ Supports proximity sensor installation for position detection

• Special Variant:​ "-01" designation indicates specific configuration (e.g., special seals, materials, or mounting options)

• Wide Operating Pressure:​ 1-10 bar operating range for flexible use

Technical Specifications

Model Number Decoding (ADVU-32-40-P-A-01)

• ADVU:​ Series designation (Compact Cylinder Series, double-acting)

• 32:​ Bore diameter (32 mm)

• 40:​ Stroke length (40 mm)

• P:​ Cushioning type (P = elastic cushioning rings/plates)

• A:​ Position sensing capability (A = compatible with proximity sensors)

• -01:​ Special variant designation (typically indicates specific configuration, seals, materials, or mounting options)

Note:​ The "-01" suffix in Festo model numbers typically denotes a special variant that may differ from the standard configuration in aspects such as seals (e.g., special temperature range, chemical resistance), materials, mounting options, or other specific features. For exact differences, consult the manufacturer's documentation.

Key Differences from Similar Models

Compared to other ADVU series cylinders:

• ADVU-32-40-P-A-01:​ 32mm bore, 40mm stroke, female thread, elastic cushioning, special variant​ (this model)

• ADVU-32-40-P-A:​ Same bore/stroke but standard configuration (without "-01" suffix)

• ADVU-32-40-A-P-A:​ Same bore/stroke but with male thread piston rod

• ADVU-32-30-P-A:​ Same bore but 30mm stroke

• ADVU-32-50-P-A:​ Same bore but 50mm stroke

The 40mm stroke​ provides moderate travel distance, while the "-01" designation​ indicates this is a special variant that may offer specific features not available in standard models (e.g., enhanced seal materials for specific applications).

Typical Applications

• Industrial Automation:​ Part positioning and transfer in assembly lines

• Clamping Devices:​ Workpiece clamping in machining and welding fixtures

• Valve Actuation:​ Operating valves in process control systems

• Material Handling:​ Product positioning and sorting mechanisms

• Packaging Machinery:​ Ejection and positioning operations

• Testing Equipment:​ Linear actuation in test stands

• Special Environments:​ Applications requiring specific seal materials or configurations (as indicated by "-01" suffix)

Important Selection & Installation Notes

1. Special Variant Consideration:​ The "-01" suffix indicates this is a special configuration. Verify the exact specifications and differences from standard ADVU-32-40-P-A models before selection. This may include special seals, materials, or other features.

2. Stroke Consideration:​ The 40mm stroke provides moderate travel distance. Ensure this meets your application's movement requirements. For longer or shorter strokes, select appropriate models.

3. Piston Rod Thread:​ This model has female thread configuration. If you need male thread for direct mounting, select "A" type models (e.g., ADVU-32-40-A-P-A).

4. Cushioning Performance:​ P-type elastic cushioning provides end-position damping. For applications with high speeds or heavy loads, ensure cushioning is properly adjusted.

5. Operating Pressure:​ Do not exceed 10 bar maximum operating pressure. For optimal performance and longevity, operate between 4-6 bar.

6. Air Quality:​ Use filtered, lubricated or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. If using lubricated air, maintain consistent lubrication.

7. Mounting:​ Ensure proper alignment during installation to avoid side loads, which can reduce seal life and cause premature failure.

8. Position Sensing:​ This model is compatible with proximity sensors for position detection. Ensure the piston has a magnetic ring (standard on most ADVU models) if position sensing is required.

9. Force Requirements:​ With 483N maximum force at 6 bar, this cylinder is suitable for medium-duty applications. For higher force requirements, select larger bore sizes.

10. Special Variant Verification:​ For the "-01" variant, confirm the specific features (e.g., special seal materials for specific media, temperature ranges, or chemical resistance) to ensure compatibility with your application.

11. Maintenance:​ Regular inspection of seals is recommended. Check for air leaks and proper cushioning performance periodically.

Note: Specifications are based on FESTO ADVU series technical documentation and industry standards. The "-01" suffix indicates a special variant that may have specific differences from standard ADVU-32-40-P-A models. For complete installation guidelines, dimensional drawings, and detailed technical data including the exact differences of the "-01" variant, consult the official FESTO ADVU Series Technical Manual​ or contact FESTO technical support.
