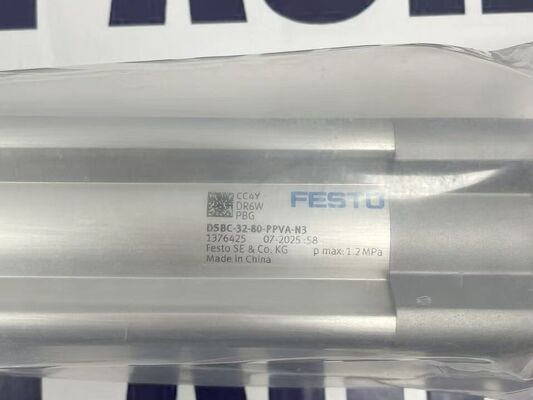

FESTO DBSC-32-80-PPVA-N3 ISO Cylinder

The FESTO DBSC-32-80-PPVA-N3​ is a standards-based double-acting pneumatic cylinder​ from the DBSC series, featuring 32mm bore diameter​ and 80mm stroke. This ISO 15552 compliant cylinder is designed for industrial automation applications requiring reliable linear motion with adjustable pneumatic cushioning. With profile barrel design, male thread piston rod, and compatibility with proximity sensors, it provides robust performance for medium-duty applications in manufacturing, packaging, and material handling systems.

Key Features

• ISO 15552 Compliance:​ Standardized dimensions and mounting for easy integration

• Double-Acting Operation:​ Provides force in both extension and retraction directions

• Pneumatic Cushioning:​ Adjustable cushioning at both ends for smooth end-position damping

• Profile Barrel Design:​ Standard profile with sensor slots for position detection

• Male Thread Piston Rod:​ M10x1.25 external thread for accessory mounting

• Wide Operating Pressure:​ 0.6 to 12 bar operating range

• Position Sensing Compatible:​ Supports proximity sensor installation (requires magnetic piston)

• Standard Mounting:​ Multiple mounting options with ISO mounting pattern

Technical Specifications

Model Number Decoding (DBSC-32-80-PPVA-N3)

• DBSC:​ Series designation (Standards-based cylinder, double-acting)

• 32:​ Bore diameter (32 mm)

• 80:​ Stroke length (80 mm)

• PP:​ Cushioning type (PP = pneumatic cushioning, adjustable)

• V:​ Piston rod type (V = male thread, external thread)

• A:​ Position sensing capability (A = compatible with proximity sensors)

• N3:​ Standard designation (N3 = standard configuration according to ISO)

Note:​ The "PP" designation indicates pneumatic cushioning with adjustable end-position damping. The "V" specifies male thread piston rod configuration.

Key Differences from Similar Models

Compared to other DBSC series cylinders:

• DBSC-32-80-PPVA-N3:​ 32mm bore, 80mm stroke, pneumatic cushioning, male thread (this model)

• DBSC-32-80-PPSA-N3:​ Same bore/stroke but with self-adjusting pneumatic cushioning

• DBSC-32-80-PPVA-N3-R:​ Same specifications but with enhanced corrosion resistance (R variant)

• DBSC-32-50-PPVA-N3:​ Same bore but 50mm stroke

• DBSC-32-100-PPVA-N3:​ Same bore but 100mm stroke

• DBSC-40-80-PPVA-N3:​ 40mm bore with same stroke

The 80mm stroke​ and pneumatic cushioning​ make this model suitable for applications requiring moderate travel distance with adjustable end-position damping.

Typical Applications

• Industrial Automation:​ Part positioning and transfer in assembly lines

• Clamping Devices:​ Workpiece clamping in machining and welding fixtures

• Material Handling:​ Conveyor and sorting system actuation

• Packaging Machinery:​ Product positioning and ejection operations

• Valve Actuation:​ Operating valves in process control systems

• Testing Equipment:​ Linear actuation in test stands

• General Automation:​ Medium-duty linear motion applications

Important Selection & Installation Notes

1. Stroke Consideration:​ The 80mm stroke provides moderate travel distance. Ensure this meets your application's movement requirements. For longer or shorter strokes, select appropriate models.

2. Piston Rod Thread:​ This model has male thread (external thread) configuration. If you need female thread for mounting, select "I" type models (e.g., DBSC-32-80-PPIA-N3).

3. Cushioning Performance:​ Pneumatic cushioning provides adjustable end-position damping. For applications with high speeds or heavy loads, ensure cushioning is properly adjusted.

4. Operating Pressure:​ Do not exceed 12 bar maximum operating pressure. For optimal performance and longevity, operate between 4-6 bar.

5. Air Quality:​ Use filtered, lubricated or non-lubricated compressed air according to ISO 8573-1:2010 [7:4:4]. If using lubricated air, maintain consistent lubrication.

6. Mounting:​ Ensure proper alignment during installation to avoid side loads, which can reduce seal life and cause premature failure.

7. Position Sensing:​ This model is compatible with proximity sensors for position detection. Ensure the piston has a magnetic ring (standard on most DBSC models) if position sensing is required.

8. Force Requirements:​ With 483N maximum force at 6 bar, this cylinder is suitable for medium-duty applications. For higher force requirements, select larger bore sizes.

9. Temperature Range:​ Do not operate outside -20°C to +80°C range. For extreme temperatures, consider special variants.

10. Maintenance:​ Regular inspection of seals is recommended. Check for air leaks and proper cushioning performance periodically.

Note: Specifications are based on FESTO DBSC series technical documentation and industry standards. The exact configuration for this specific model number includes 32mm bore, 80mm stroke, pneumatic cushioning, and male thread piston rod. For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official FESTO DBSC Series Technical Manual​ or contact FESTO technical support.
