FESTO SDE5-D10-O-Q6-P-M8 pressure sensor specifications. 0-10 bar measuring range, PNP output, QS-6 pneumatic port, M8 electrical connector, IP40 protection. For industrial automation and process control applications.

Product Overview

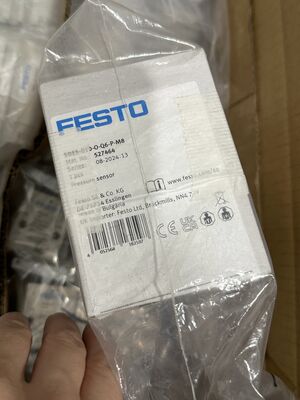

The FESTO SDE5-D10-O-Q6-P-M8​ is a piezoresistive pressure sensor​ from the SDE5 series, designed for precise pressure monitoring in industrial automation systems. This model features a 0-10 bar measuring range, PNP switching output, QS-6 pneumatic port, and M8 electrical connector. The "O" designation indicates threshold value with fixed hysteresis switching function, providing reliable on/off control based on preset pressure thresholds. This compact sensor delivers accurate pressure measurement with 0.3% FS repeatability, making it suitable for applications requiring precise pressure monitoring and control.

Technical Specifications

Note: Specifications are based on FESTO SDE5 series technical documentation. The "SDE5-D10-O-Q6-P-M8" model specifically indicates 0-10 bar range, threshold switching function, QS-6 port, and M8 electrical connection. Actual specifications may vary slightly depending on production batch.

Model Number Decoding (SDE5-D10-O-Q6-P-M8)

• SDE5:​ Series designation (SDE5 pressure sensor series)

• D10:​ Pressure measuring range (D10 = 0-10 bar)

• O:​ Output function (O = Threshold value with fixed hysteresis, N/O contact)

• Q6:​ Pneumatic connection (Q6 = QS-6 push-in fitting, 6 mm)

• P:​ Electrical output (P = PNP output)

• M8:​ Electrical connection (M8 = M8 plug, 3-pin)

Note:​ The "D10" designation corresponds to the 0-10 bar pressure range category. The "O" suffix indicates the specific switching function configuration. The "Q6" specifies the pneumatic port type, and "M8" indicates the electrical connector type.

Key Features

• Precise Pressure Measurement:​ 0-10 bar range with ±0.3% FS repeatability

• PNP Switching Output:​ Compatible with standard PLC and controller inputs

• QS-6 Pneumatic Port:​ Quick-connect push-in fitting for 6 mm tubing

• M8 Electrical Connector:​ Standard industrial 3-pin connector for easy wiring

• Threshold Switching:​ Fixed hysteresis switching function for reliable on/off control

• LED Status Indication:​ Yellow LED for visual switching status indication

• Compact Design:​ Lightweight (19 g) for space-constrained installations

• Wide Voltage Range:​ 15-30V DC operation for flexible power supply options

• Reverse Polarity Protection:​ Built-in protection against incorrect wiring

• Short Circuit Protection:​ Protected output against short circuits

Typical Applications

• Industrial Automation:​ Pressure monitoring in pneumatic systems

• Process Control:​ Pressure threshold detection in manufacturing processes

• Machine Protection:​ Overpressure or underpressure protection

• Packaging Machinery:​ Air pressure control and monitoring

• Assembly Systems:​ Component handling and positioning pressure verification

• Test Equipment:​ Laboratory and production test setups

• HVAC Systems:​ Air pressure monitoring in ventilation systems

Important Technical Notes

1. Pressure Range:​ The measuring range is 0-10 bar. Do not exceed the maximum operating pressure.

2. Media Compatibility:​ Designed for compressed air. Verify compatibility with other gases or fluids before use.

3. Electrical Connection:​ Use 15-30V DC power supply. Ensure correct polarity (reverse polarity protected).

4. Pneumatic Connection:​ Use 6 mm outer diameter tubing with QS-6 push-in fitting. Ensure tubing is cut squarely and inserted fully.

5. Mounting:​ Can be mounted in any position. Avoid excessive vibration or shock.

6. Setting Adjustment:​ Threshold setting can be adjusted via teach-in function or potentiometer (if equipped).

7. Temperature Limits:​ Operating temperature range is 0°C to 50°C. Do not use outside this range.

8. Maintenance:​ Periodically check for leaks and proper operation. Clean pneumatic port if clogged.

Note: For complete installation guidelines, dimensional drawings, and detailed technical data, consult the official FESTO SDE5 Series Technical Manual. Always verify the exact model number configuration with the manufacturer, as notation variations may occur.
