Product Overview

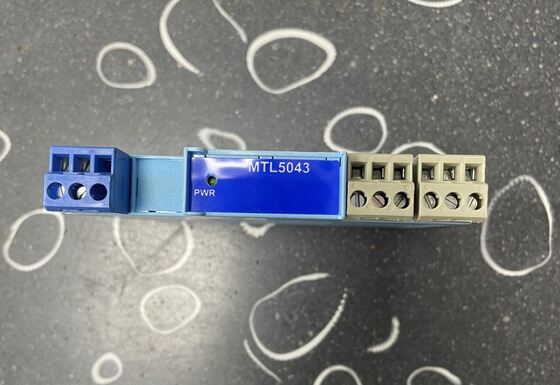

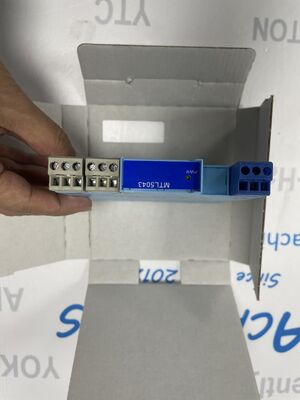

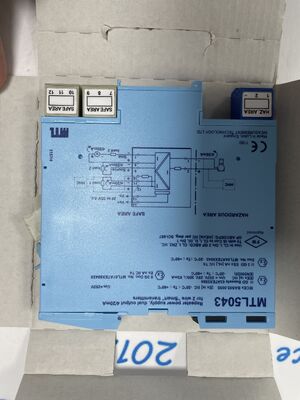

The MTL 5043​ is a temperature transmitter isolator​ from MTL's 5000 series, designed to interface RTD, thermocouple, and millivolt signals​ from hazardous areas and provide an isolated 4-20mA output. This device provides intrinsic safety protection, signal conditioning, and linearization​ for temperature sensors, and carries FM, ATEX, and IECEx approvals​ for Zone 1 hazardous locations. The "5043" designation identifies this specific model configured for temperature transmitter applications. This unit is a versatile solution for safely connecting a wide variety of temperature sensors to control systems in explosive atmospheres.

Technical Specifications

Note: Specifications are based on MTL 5000 series documentation. The 5043 supports multiple sensor types via configuration. Always verify with the latest product datasheet.

Key Features

• Multi-Sensor Support:​ Accepts RTD, thermocouple, and mV inputs in a single unit

• High Accuracy:​ ±0.1% accuracy for precise temperature measurement

• Intrinsic Safety:​ Approved for Zone 1 hazardous locations

• Automatic CJC:​ Built-in cold junction compensation for thermocouples

• RTD Lead Compensation:​ Supports 2-, 3-, and 4-wire RTD connections

• Flexible Configuration:​ Configurable via DIP switches or software

• Burnout Protection:​ Selectable up-scale/down-scale/hold for sensor failure

• Compact Design:​ Only 12.5mm wide for high-density installations

• Isolated Design:​ 500V AC isolation between input, output, and power

• Global Approvals:​ Certified for international hazardous area applications

Input Types and Ranges

Note: Specific ranges are configurable. Not all ranges may be available simultaneously.

Entity Parameters (for Hazardous Area Design)

Note: The 5043 is an associated apparatus. Connected temperature sensors in the hazardous area must be certified as intrinsically safe or be simple apparatus.

Configuration Options

Typical Applications

• Process Temperature Monitoring:​ RTD and thermocouple signals from hazardous area process vessels

• Furnace/Heater Control:​ Temperature measurement in heating applications

• Pipeline Monitoring:​ Temperature measurement for gas and liquid pipelines

• Reactor Control:​ Temperature signals from chemical reactors

• Storage Tank Monitoring:​ Temperature measurement in storage tanks

• HVAC in Hazardous Areas:​ Temperature control in classified buildings

• Motor Bearing Temperature:​ Monitoring of motor bearings in hazardous locations

• Any application requiring​ intrinsic safety isolation for temperature sensors in Zone 1 areas

Important Technical Notes

1. Sensor Certification:​ Temperature sensors installed in the hazardous area must be certified as intrinsically safe or qualify as "simple apparatus."

2. RTD Wiring:​ For highest accuracy, use 3- or 4-wire RTD connections to eliminate lead resistance errors. 2-wire connections are suitable for shorter distances.

3. Thermocouple Cold Junction:​ The 5043 provides automatic cold junction compensation. Ensure the unit is mounted in a location with stable ambient temperature for accurate CJC.

4. Configuration:​ Proper configuration of input type, range, and burnout response is critical. Document all settings for maintenance purposes.

5. Power Supply:​ Use a certified intrinsically safe power supply or ensure the loop power supply meets IS requirements for the entire circuit.

6. Grounding:​ Follow manufacturer's grounding recommendations. Typically, the isolator should be grounded to the system ground for noise immunity.

7. Environmental Considerations:​ The operating temperature range is -20°C to +60°C. For outdoor installations, ensure appropriate environmental protection.

8. Burnout Protection:​ Configure the burnout response based on process safety requirements. "Up-scale" is typically used for safety-critical applications.

9. Certification Compliance:​ Verify that the 5043's certifications match the hazardous area classification and temperature rating of your application.

10. Calibration:​ While the unit is highly accurate, periodic calibration may be required based on process criticality and quality system requirements.

Note: This data sheet provides general specifications for the MTL 5043 temperature transmitter isolator. For complete installation guidelines, configuration procedures, wiring diagrams, and safety instructions, consult the official MTL 5000 Series Technical Manual. Always verify that the product configuration and certifications match your specific application requirements.
