Product Overview

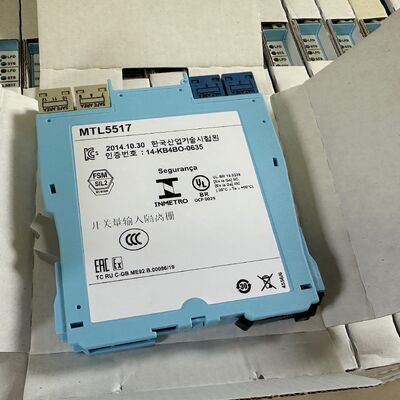

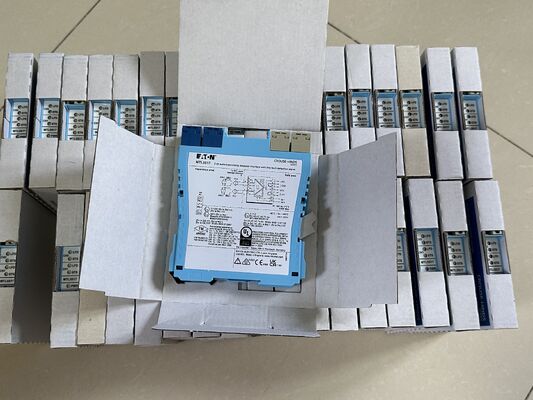

The MTL 5517 is a dual-channel HART signal repeater and isolator designed to extend the communication distance of HART networks in intrinsically safe applications. It receives a weakened 4-20mA+HART signal, regenerates it to full strength, and transmits it while maintaining galvanic isolation between field and safe areas. It is specifically designed to overcome signal degradation in long cable runs in hazardous locations.

Technical Specifications

Key Features

• HART Signal Regeneration:​ Amplifies and reconstructs HART signals for long-distance transmission

• Cable Length Extension:​ Enables HART communication over distances beyond standard limits

• Dual Independent Channels:​ Two fully isolated HART signal repeater channels

• Complete Signal Integrity:​ Maintains both analog accuracy (±0.05%) and digital HART data

• Intrinsic Safety:​ Certified for Zone 1/21 hazardous locations

• Galvanic Isolation:​ 500V isolation between field and safe areas

• Transparent Operation:​ Passes HART protocol unchanged; no addressing required

• Software Configurable:​ Set fail-safe modes and other parameters via PC

• Visual Diagnostics:​ Per-channel LEDs indicate power and HART communication activity

• Network Expansion:​ Allows connection of HART devices over extended plant areas

Applications

• Extending HART network distance in large process plants

• Overcoming signal attenuation in long cable runs

• Industrial sites with distributed field instruments over wide areas

• Oil and gas fields with remote measurement points

• Water and wastewater treatment plants with extended piping

• Any application where HART signal strength degrades below reliable levels

Important Notes

1. The 5517 regenerates both the 4-20mA analog signal and HART digital signal

2. It requires external 24V DC power for operation

3. Field devices still require separate loop power (IS power supply)

4. Maximum extension distance depends on cable type, gauge, and installation conditions

5. Configuration is required via MTL software for proper operation
