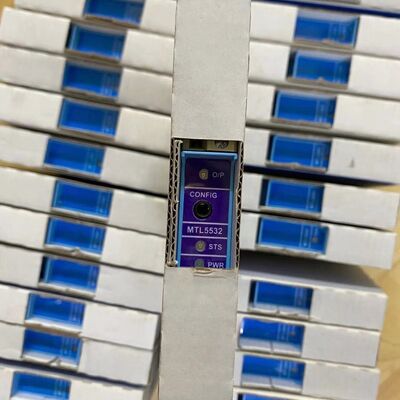

MTL 5532 Temperature Transmitter | RTD/Thermocouple Input, 4-20mA Output, IS, DIN Rail, ATEX/FM/CSA

MTL 5532 Temperature Transmitter | RTD/Thermocouple Input, 4-20mA Output, IS, DIN Rail, ATEX/FM/CSA

MTL 5532 temperature transmitter specifications. Accepts RTD/thermocouple inputs, outputs 4-20mA, galvanic isolation, 24V DC, hazardous area certified, dual-channel.

Product Overview

The MTL 5532 is a dual-channel temperature transmitter and isolator that accepts direct inputs from RTD or thermocouple sensors in hazardous areas. It converts the temperature sensor signal to an isolated 4-20mA output, provides linearization, cold junction compensation (for T/Cs), and intrinsic safety (IS) isolation. It is designed for direct connection to temperature sensors without additional transmitters.

Technical Specifications

Key Features

• Universal Temperature Input:​ Supports multiple RTD and thermocouple types

• Direct Sensor Connection:​ Connects directly to temperature sensors without additional transmitters

• Built-in Linearization:​ Provides accurate temperature-to-current conversion

• Cold Junction Compensation:​ Integrated for thermocouple measurements

• Dual Independent Channels:​ Two fully isolated temperature channels

• Intrinsic Safety:​ Certified for Zone 1/21 hazardous locations

• Complete Isolation:​ 500V isolation prevents ground loops

• High Accuracy:​ ±0.1% for RTD, ±0.2% for thermocouple inputs

• Software Configurable:​ Sensor type, range, fail-safe mode via PC

• Visual Diagnostics:​ Per-channel LEDs for status monitoring

Applications

• Direct temperature measurement with RTD sensors in hazardous areas

• Thermocouple temperature monitoring in process industries

• Furnace, oven, and heater temperature control

• Pipeline and vessel temperature monitoring

• Safety instrumented systems (SIL 2 capable) for temperature measurement

Important Notes

1. The 5532 provides sensor excitation for RTDs and cold junction compensation for thermocouples

2. Configuration is required via MTL software to set sensor type, temperature range, and other parameters

3. The 4-20mA output is active and requires an external 24V DC supply for the output loop

4. Use appropriate thermocouple extension wire or RTD cable for accurate measurements

5. Each channel is independently configurable for different sensor types
