Parker P2LAZ511EENDCB49 specifications. 5/2 way directional control valve, single solenoid, ISO 5599/1 interface, for pneumatic systems.

Product Overview

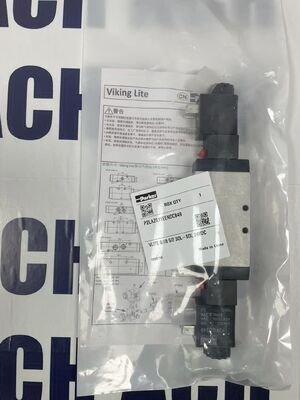

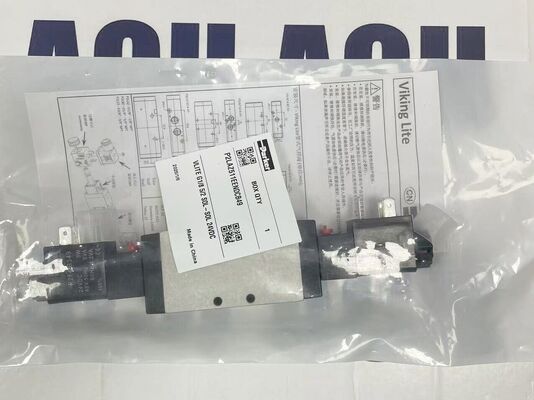

The Parker P2LAZ511EENDCB49 is a 5/2 way, single solenoid, spring return directional control valve from the Parker P2L series. It conforms to the ISO 5599/1 interface standard, ensuring interchangeability with other valves of the same footprint. This valve is designed for precise control of double-acting pneumatic actuators, such as cylinders, in automated machinery.

Technical Specifications

Key Features

• ISO 5599/1 Interface:​ Ensures easy mounting and interchangeability on subplates or manifolds

• Single Solenoid Operation:​ Energize to shift, spring returns to normal position

• High Flow Capacity:​ Optimized internal design for efficient air flow

• Low Power Consumption:​ Efficient solenoid design

• Manual Override:​ Allows manual actuation for setup and troubleshooting

• LED Status Indicator:​ Often included for visual confirmation of energization

• Robust Construction:​ Designed for reliable operation in industrial environments

• Versatile Mounting:​ Can be mounted directly or on subplates/manifolds

Applications

• Control of double-acting pneumatic cylinders

• Actuator control in packaging machinery

• Material handling and automation systems

• Robotic end-effector control

• General industrial pneumatic circuits

Important Notes

1. The exact coil voltage (e.g., 24V DC) is defined by the 'E' suffix; other voltages are available

2. Requires a compatible ISO 5599/1 subplate or manifold for mounting

3. Ensure air supply is clean, dry, and lubricated if specified

4. The valve's default position (spring return) is defined by the port labeling (e.g., A, B, P, R, S)

5. Installation must comply with relevant pneumatic and electrical safety standards
