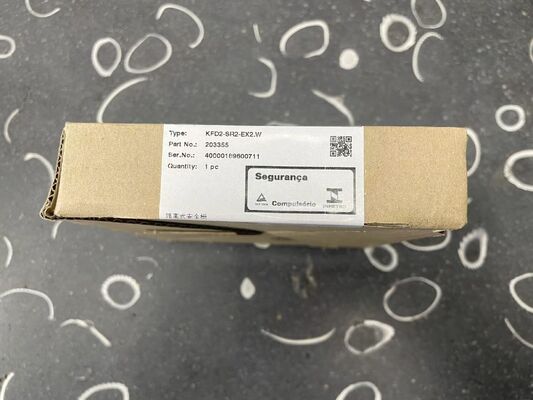

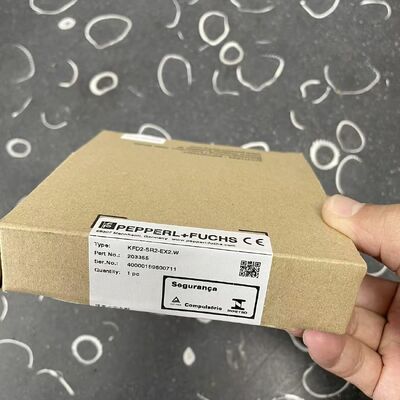

Pepperl+Fuchs KFD2-SR2-EX2.W Isolated Barrier | 2-Channel, Relay Output, SIL 2, SMART

Pepperl+Fuchs KFD2-SR2-EX2.W Isolated Barrier | 2-Channel, Relay Output, SIL 2, SMART

Pepperl+Fuchs KFD2-SR2-EX2.W barrier specifications. 2-channel isolated barrier, relay output, 24V DC, SIL 2, for proximity sensors.

Product Overview

The Pepperl+Fuchs KFD2-SR2-EX2.W is a 2-channel isolated barrier from the K-System. It is designed for the intrinsically safe operation of proximity sensors, mechanical contacts, and optical encoders located in hazardous areas (Zone 0/1, Zone 20/21). It transfers the switching status from the hazardous area to the safe area via two independent, volt-free relay outputs.

Technical Specifications

Key Features

• 2 Fully Independent Channels:​ Each channel operates autonomously with its own relay output

• Intrinsically Safe Input:​ Certified for connection to sensors in Zone 0/1 and Zone 20/21 hazardous areas

• Volt-Free Relay Contacts:​ Suitable for PLC interfacing and switching AC or DC loads

• SMART Technology:​ Supports sensor fault monitoring (line break, short circuit) per NAMUR NE44

• Functional Safety:​ SIL 2 certified per IEC 61508 for safety-related applications

• Galvanic Isolation:​ 3-port isolation (input, output, power) prevents ground loops

• LED Diagnostics:​ Clear visual indication of channel state and device status

• DIN Rail Mount:​ 35 mm mounting rail (EN 60715)

Applications

• **Signal transfer from NAMUR proximity sensors in hazardous areas

• **Switching status feedback from mechanical contacts or limit switches

• ​Isolated interface between safety PLC/DCS and field devices

• ​Sensor fault monitoring in chemical, oil & gas, and pharmaceutical industries

• ​SIL-rated logic input interfacing

Important Notes

1. **This barrier requires an external 24V DC power supply unit.

2. **Relay contacts are volt-free; external power is required to switch the load.

3. ​The device detects sensor line faults (wire break/short circuit) if a suitable NAMUR sensor is used.

4. ​For functional safety (SIL) applications, proper system integration and validation are mandatory.

5. ​Mounting is on standard 35 mm DIN rail; housing width is 20 mm.
