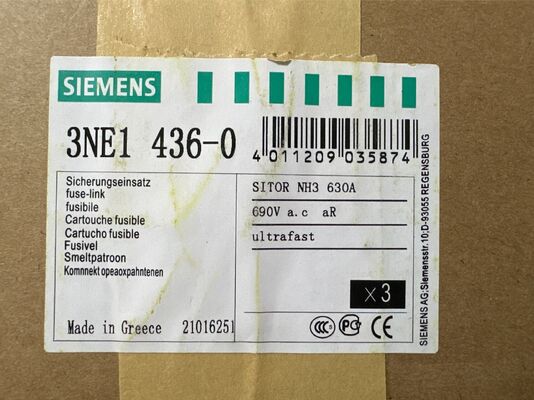

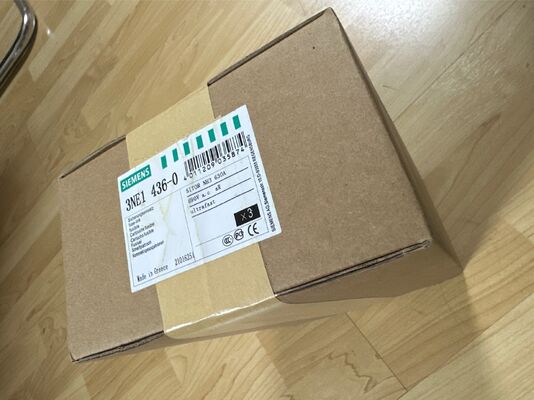

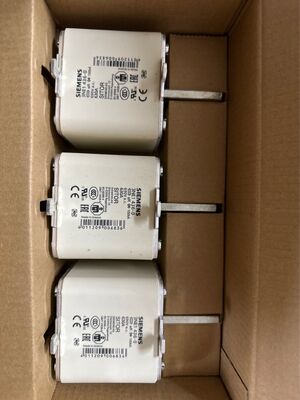

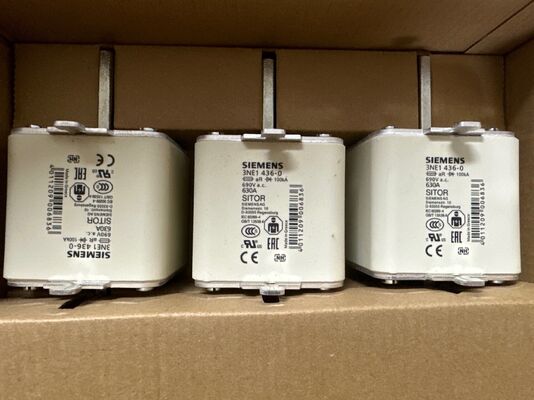

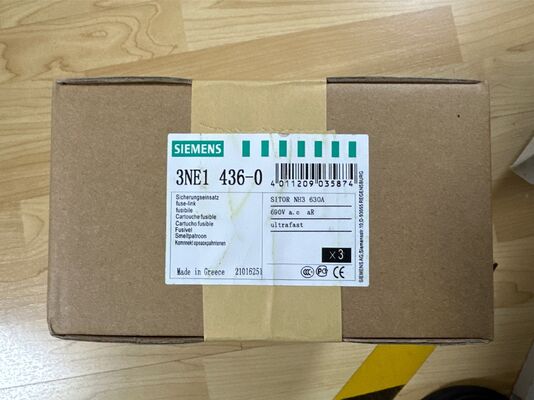

SIEMENS 3NE1436-0 Fuse | Semiconductor, 630A, 800V, aR/gR, for Drive Protection

Large Image : SIEMENS 3NE1436-0 Fuse | Semiconductor, 630A, 800V, aR/gR, for Drive Protection Get Best Price

Product Details:

Place of Origin:	GR
Brand Name:	SIEMENS
Certification:	ATEX
Model Number:	3NE1 436-0
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

SIEMENS semiconductor fuse 630A

800V drive protection fuse

SIEMENS aR gR fuse

SIEMENS 3NE1436-0 Fuse | Semiconductor, 630A, 800V, aR/gR, for Drive Protection

SIEMENS 3NE1436-0 fuse specifications. Semiconductor protection fuse, 630A, 800V, aR/gR, fast-acting, for inverter/rectifier protection.

Product Overview

The SIEMENS 3NE1436-0 is a semiconductor protection fuse from the 3NE1 series. It is a fast-acting, high-breaking capacity fuse designed specifically to protect sensitive semiconductor components like IGBTs, diodes, and thyristors in power electronic equipment. This specific model is rated for 630 Amperes at 800 Volts and meets the aR (partial range) and gR (full range) protection characteristics according to IEC standards. It is commonly used in drive systems, rectifiers, and soft starters.

Technical Specifications (Electrical)

Parameter	Specification
Manufacturer	Siemens AG
Series	3NE1 (Semiconductor Protection Fuses)
Model	3NE1436-0
Product Type	Semiconductor Protection Fuse
Rated Voltage (Un)	800 V AC
Rated Current (In)	630 A
Breaking Capacity (Icu)	Up to 100 kA (at 800V)
Protection Characteristic	aR (partial range), gR (full range)
Energy I²t	Very low (for semiconductor protection)

Technical Specifications (Mechanical/General)

Parameter	Specification
Fuse Size	Standard 00 (large cylindrical)
Contact Type	Blade (knife contact)
Mounting	For fuse bases (e.g., 3NE1 8.. series)
Indicator	Striker pin for trip indication
Standards	IEC 60269-4, UL 248-12
Certifications	CE, cULus

Key Features

Ultra-Fast Operation: Very low melting I²t value for fast protection of semiconductors
High Breaking Capacity: Safely interrupts high fault currents
aR/gR Characteristic: Provides both partial and full range short-circuit protection
Striker Pin Indication: Mechanically indicates fuse operation for auxiliary circuit signaling
Robust Construction: For reliable protection in demanding industrial applications
Proven Technology: Standard protection component in SINAMICS and other power converters

Applications

Protection of IGBTs and diodes in SINAMICS frequency converters and rectifiers
Semiconductor protection in DC link circuits
Soft starter and UPS (Uninterruptible Power Supply) protection
General overcurrent and short-circuit protection in power electronic equipment
