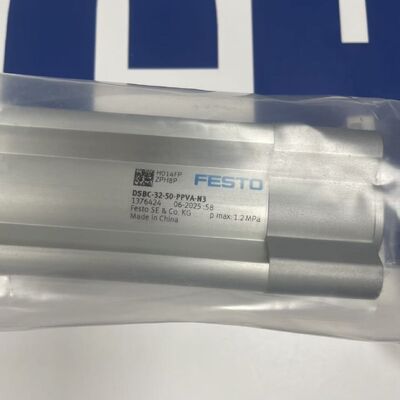

Festo DSBC-32-50-PPVA-N3 Cylinder | ISO 15552, 32mm Bore, 50mm Stroke, Rod, Magnetic, Piston

Large Image : Festo DSBC-32-50-PPVA-N3 Cylinder | ISO 15552, 32mm Bore, 50mm Stroke, Rod, Magnetic, Piston Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	FESTO
Certification:	ATEX
Model Number:	DSBC-32-50-PPVA-N3
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

12-30 V DC (Two-wire)

Ambient Temperature:

-40°C To 80°C (-40°F To 176°F)

Electrical Rating:

General Purpose, Explosion-proof, Intrinsic Safety (depends On Certification)

Certifications:

Standard Models Include ATEX, IECEx, SIL 2 (consult Manual For Specific Ratings)

Highlight:

Festo ISO 15552 cylinder

32mm bore pneumatic cylinder

50mm stroke magnetic piston cylinder

Festo DSBC-32-50-PPVA-N3 Cylinder | ISO 15552, 32mm Bore, 50mm Stroke, Rod, Magnetic, Piston

Festo DSBC-32-50-PPVA-N3 specifications. Standard ISO 15552 pneumatic cylinder, 32mm bore, 50mm stroke, magnetic piston, with cushioning.

Product Overview

The Festo DSBC-32-50-PPVA-N3 is a standard pneumatic cylinder compliant with ISO 15552 (previously VDMA 24562). It features a 32mm bore, a 50mm stroke, and a single-rod design. The cylinder incorporates a magnetic piston for non-contact position sensing and adjustable pneumatic cushioning at both ends to decelerate the piston gently. Its robust design makes it a versatile component for linear actuation in a wide range of industrial automation applications.

Technical Specifications (Cylinder)

Parameter	Specification
Manufacturer	Festo AG & Co. KG
Series	DSBC (ISO Cylinder)
Model	DSBC-32-50-PPVA-N3
Cylinder Type	Double-acting, Single-rod
Piston Diameter (Bore)	32 mm
Piston Rod Diameter	12 mm
Stroke Length	50 mm
Cushioning	Adjustable pneumatic cushions at both ends
Piston Position Sensing	Magnetic piston (for use with reed or cylinder sensors)

Technical Specifications (Performance/Mechanical)

Parameter	Specification
Operating Pressure	1.5 to 10 bar (21.8 to 145 psi)
Theoretical Force at 6 bar	483 N (advancing) / 424 N (retracting)
Piston Speed	0.1 to 1.5 m/s
Operating Medium	Compressed air, lubricated or non-lubricated
Operating Temperature	-20 to 80°C (-4 to 176°F)
Port Thread	M5
Mounting	Multiple options via accessory mounting kits
Material, Barrel	Anodized aluminum alloy
Material, Piston Rod	Stainless steel
Seals	NBR (standard)

Key Features

ISO 15552 Standard: Ensures dimensional interchangeability with other manufacturer's cylinders
Adjustable Cushioning: Reduces impact noise and wear at stroke ends
Magnetic Piston: Enables easy integration of position sensing switches
Robust Construction: Anodized aluminum barrel and stainless-steel piston rod for long life
Wide Pressure Range: Operates from 1.5 to 10 bar
Flexible Mounting: Compatible with a wide range of Festo mounting accessories
High Piston Speed: Suitable for fast-cycling applications
Universal Medium: Works with lubricated or non-lubricated air

Applications

General linear motion in automation and handling systems
Clamping, pressing, and lifting operations
Material handling and packaging machinery
Transfer lines and assembly stations
