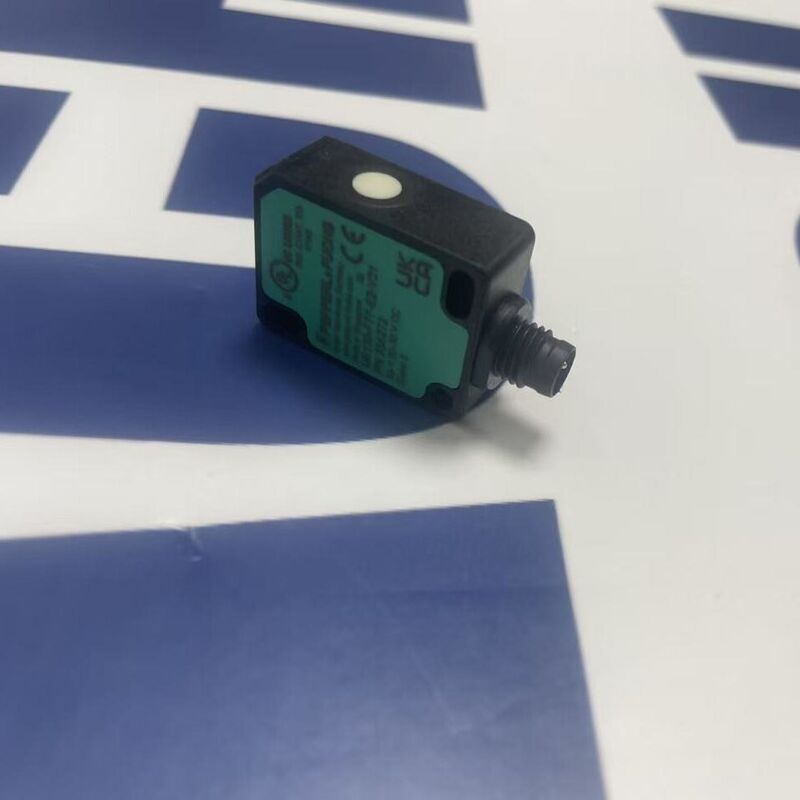

Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8

Large Image : Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8 Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	Pepperl+Fuchs
Certification:	ATEX
Model Number:	UB100-F77-E2-V31
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Pepperl Fuchs ultrasonic sensor 10-100mm

PNP M8 ultrasonic proximity sensor

Pepperl Fuchs safety barrier sensor

Pepperl+Fuchs UB100-F77-E2-V31 | 10-100mm Micro Ultrasonic, PNP, M8

Pepperl+Fuchs UB100-F77-E2-V31 ultrasonic proximity sensor. 10-100mm range, PNP NO output, 20-30V DC, M8 connector, IP67, teach-in function.

Product Overview

The Pepperl+Fuchs UB100-F77-E2-V31 is a micro-style ultrasonic proximity sensor designed for precise object detection in compact spaces. It operates on a 10 to 100 mm sensing range with an adjustable switching point via a built-in teach-in function. Key features include a PNP normally open output, a wide 20-30V DC operating voltage, and an M8 4-pin connector for quick installation. This sensor is ideal for applications requiring reliable detection of various materials, including transparent objects and liquids.

Technical Specifications (Electrical & Functional)

Parameter	Specification
Part Number	UB100-F77-E2-V31
Sensor Type	Ultrasonic Proximity (Direct Reflection)
Operating Voltage	20 ... 30 V DC (Ripple ≤10%)
Output Type	PNP, Normally Open (NO)
Switching Current	Max. 200 mA
Sensing Range	10 ... 100 mm
Adjustable Range	30 ... 100 mm (via Teach-in)
Dead Zone	0 ... 10 mm
Switching Frequency	10 Hz
Repeat Accuracy	± 1 mm
Teach-in Method	Program Input (Pin 4)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Housing Material	Polycarbonate
Transducer Face	Epoxy / Glass Microspheres
Connection	M8 x 1, 4-pin Connector
Degree of Protection	IP67
Operating Temperature	-10 ... +50 °C
Storage Temperature	-40 ... +85 °C
Dimensions (L x W x H)	23 mm x 12 mm x 31 mm
Weight	Approx. 10 g
Mounting	Any Position

Key Features

Material-Independent Detection: Utilizes ultrasonic technology to reliably detect objects regardless of color, transparency, or material (e.g., glass, plastic, liquid levels).
Simple Teach-in Setup: The switching point can be easily programmed via a digital input, allowing for quick commissioning and adjustment without tools.
Compact Micro Design: The small 23x12x31 mm housing enables installation in extremely tight spaces where standard sensors cannot fit.

Applications

Bottle and container presence detection on conveyor belts
Liquid level monitoring in small tanks and reservoirs
Transparent object detection in packaging and assembly machinery[citation:available:1][citation:available:2][citation:web:1]
