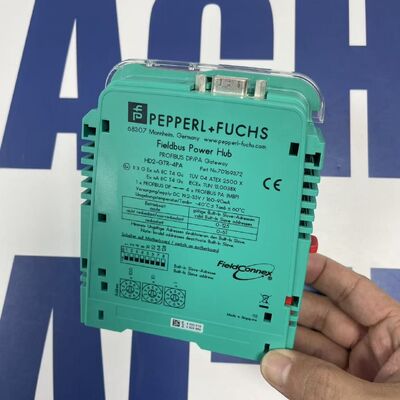

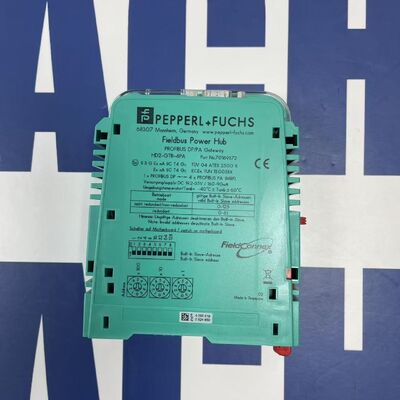

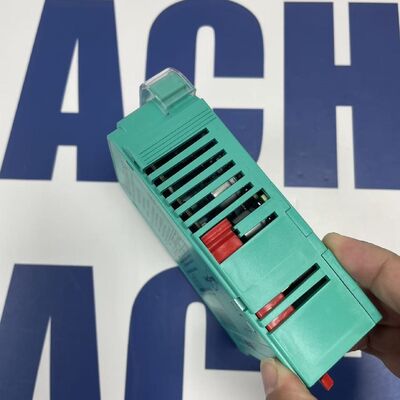

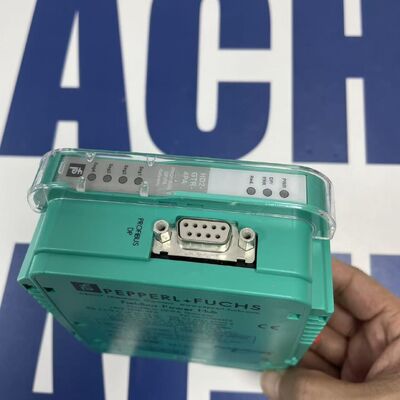

Pepperl+Fuchs HD2-GTR-4PA | PROFINET to 4x PROFIBUS PA Gateway

Large Image : Pepperl+Fuchs HD2-GTR-4PA | PROFINET to 4x PROFIBUS PA Gateway Get Best Price

Product Details:

Place of Origin:	DE
Brand Name:	PEPPERL+FUCHS
Certification:	ATEX
Model Number:	HD2-GTR-4PA
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

PROFINET to PROFIBUS PA gateway

Pepperl Fuchs safety barrier

HD2-GTR-4PA industrial gateway

Pepperl+Fuchs HD2-GTR-4PA | PROFINET to 4x PROFIBUS PA Gateway

Pepperl+Fuchs HD2-GTR-4PA fieldbus gateway. Converts PROFINET RT to 4 isolated PROFIBUS PA segments, 19.2-35V DC supply, IP20, Zone 2/Div. 2 rated.

Product Overview

The Pepperl+Fuchs HD2-GTR-4PA is a PROFIBUS gateway from the FieldConnex® series. It acts as a protocol converter, linking a PROFINET RT master network to up to four isolated PROFIBUS PA segments. Designed for process automation, it supports up to 32 devices per segment and is certified for use in Zone 2 / Class I Division 2 hazardous areas. The device features a motherboard design for 35mm DIN rail mounting and is powered by a 24V DC nominal supply.

Technical Specifications (System & Electrical)

Parameter	Specification
Product Family	FieldConnex® HD2 Series
Function	PROFINET RT to 4x PROFIBUS PA Gateway
Rated Supply Voltage	19.2 ... 35 V DC (SELV/PELV)
Rated Current	typ. 135 mA (at 24V DC)
Power Dissipation	approx. 3.5 W
PROFIBUS PA Segments	4 (Galvanically Isolated)
Max. Devices per Segment	32
PROFIBUS DP Interface	9-pin Sub-D socket
Galvanic Isolation	50 V (PROFIBUS DP/Supply)

Technical Specifications (Physical & Environmental)

Parameter	Specification
Mounting	35 mm DIN Rail (Motherboard Style)
Degree of Protection	IP20 (EN 60529)
Operating Temperature	-40 °C ... +60 °C
Storage Temperature	-40 °C ... +85 °C
Relative Humidity	< 95% (non-condensing)
Hazardous Area Approval	Zone 2, II 3G Ex nA IIC T4 Class I Div. 2
Vibration Resistance	1 g (58 ... 150 Hz)
Shock Resistance	15 g, 11 ms
EMC	EN 61326, EN 61326-3-1

Key Features

Segment Protection: Four independent, isolated PROFIBUS PA segments with individual short-circuit and overload protection.
PROFINET Integration: Seamless integration into PROFINET RT networks as an IO device with integrated webserver for diagnostics.
Harsh Environment Ready: Wide operating temperature range (-40°C to +60°C) and certifications for use in potentially explosive atmospheres (Zone 2).
Easy Configuration: Simple parameterization via GSDML file in the PLC engineering tool.

Applications

Process control systems in chemical and pharmaceutical plants
Integration of PROFIBUS PA field devices (e.g., pressure transmitters, level sensors) into PROFINET-based DCS
Remote I/O and gateway applications in oil & gas and water/wastewater treatment
