Large Image :  694391164 Get Best Price

Product Details:
Place of Origin: CN
Brand Name: FESTO
Certification: ATEX
Model Number: ADNGF-25-25-P-A
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Festo pneumatic cylinder

,

Festo cylinder with warranty

,

industrial Festo cylinder

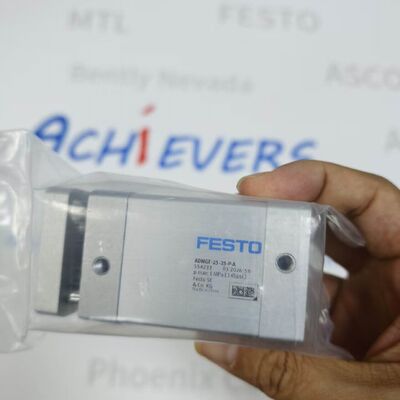

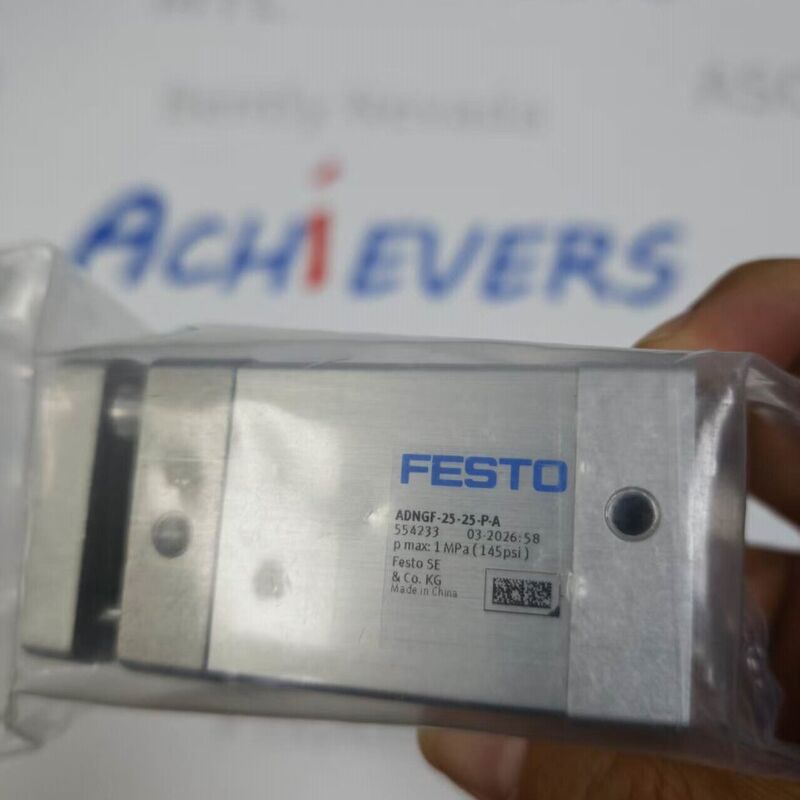

Festo ADNGF-25-25-P-A | ISO 21287 Compact Cylinder 25mm Bore 25mm Stroke
Festo ADNGF-25-25-P-A compact pneumatic cylinder. ISO 21287, 25mm bore, 25mm stroke, double-acting, P: male piston rod thread, A: elastic cushioning, magnetic piston for sensor.

Product Overview

The Festo ADNGF-25-25-P-A​ is a compact double-acting pneumatic cylinder​ conforming to ISO 21287​ standard. It features a 25 mm bore, 25 mm stroke, a male piston rod thread (P), and elastic cushioning (A)​ at both ends. The piston incorporates a magnetic ring​ for position sensing with proximity switches. This space-saving design is ideal for applications where installation height or footprint is critical.

Technical Specifications (Dimensional & Mechanical)

Parameter
Specification
Model Code​
ADNGF-25-25-P-A​
Bore Diameter​
25 mm​
Stroke Length​
25 mm​
Piston Rod Thread​
Male (M10x1.25)​ — denoted by "P"
Cushioning​
Elastic Cushioning Rings (A)​ — non-adjustable
Position Sensing​
Yes (Magnet Ring for Proximity Sensor)​
Ports​
G1/8"​ (BSPP)
Mounting Style​
Through-holes / Female thread on front cap (ISO 21287)

Technical Specifications (Performance & Operating)

Parameter
Specification
Action​
Double-acting​
Operating Pressure​
0.6 … 10 bar​
Theoretical Force @ 6 bar​
~294 N (Advance), ~270 N (Retract — accounts for rod area)
Operating Medium​
Filtered Compressed Air (to ISO 8573-1:2010 Class 4)
Ambient Temperature​
-20 … +80 °C​ (Standard)
Conforms to​
ISO 21287​
Material (Barrel/Rod)​
Hard-anodized Aluminum Alloy / High-alloy Steel (Chrome-plated)

Key Features

  • ISO 21287 Compliance:​ Standardized dimensions ensure interchangeability and smaller footprint than ISO 15552 cylinders.
  • Magnetic Piston:​ Built-in magnet allows easy mounting of slot-type proximity sensors (e.g., Festo SME/SMT series).
  • Elastic End Cushioning:​ Absorbs impact energy to reduce noise and wear—no adjustment needed.
  • Male Rod Thread:​ Simplifies direct attachment of clevis, eye, or custom tooling without adapter nuts.

Applications

  • Pick & Place Modules:​ Short-stroke clamping, ejecting, or pressing in assembly automation.
  • Packaging Machinery:​ Actuating folder flaps, pusher plates in confined spaces.
  • Testing Fixtures:​ Applying light clamping force in jigs and inspection stations.
Note: For adjustable pneumatic cushioning, see the "PPS" variant. Sensors (SME-8M...) are ordered separately and clip into the cylinder body groove.
