Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC

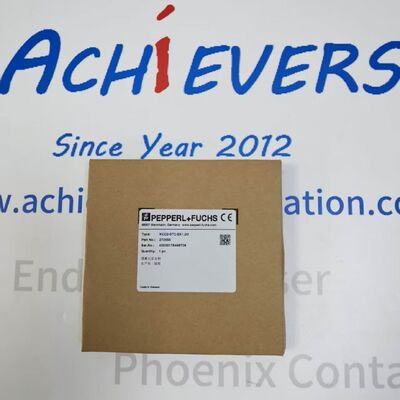

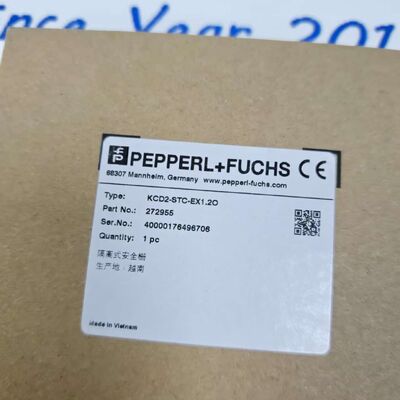

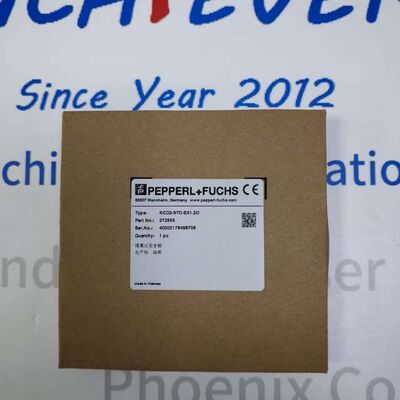

Large Image : Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC Get Best Price

Product Details:

Place of Origin:	VN
Brand Name:	Pepperl+Fuchs
Certification:	ATEX
Model Number:	KCD2-STC-EX1
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

HART-transparent isolated barrier

2-wire transmitter safety barrier

24V DC isolated barrier

Pepperl+Fuchs KCD2-STC-Ex1 | HART-Transparent Isolated Barrier for 2-Wire Transmitters, 24V DC

Pepperl+Fuchs KCD2-STC-Ex1 isolated barrier for 2-wire 4-20mA HART transmitters. Ex ia/IIC, 24V DC supply, HART passthrough, DIN rail mount, SIL 2/3.

Product Overview

The Pepperl+Fuchs KCD2-STC-Ex1 (Order No. KCD2-STC-Ex1) is a single-channel isolated barrier from the K-System (KCD2) series, designed to power and isolate a 2-wire (loop-powered) 4-20mA HART transmitter installed in a hazardous area (Zone 0/1, Division 1). It provides intrinsic safety (Ex ia) energy limitation to the field side and a HART-transparent 4-20mA analog output to the safe-area control system. The device is SIL 2/3 capable and mounts on a standard 35mm DIN rail.

Technical Specifications (Electrical & Function)

Parameter	Specification
Order Number	KCD2-STC-Ex1
Function	Isolated Barrier for 2-Wire 4-20mA Transmitters (with HART Passthrough)
Supply Voltage (Terminals 7-8)	20 … 30 V DC (Nominal 24 V DC)
Field-Side Output Voltage (Uo)	≤ 28 V DC (Typical 24 V DC to power transmitter)
Field-Side Max. Current (Io)	≤ 93 mA (sufficient for 2-wire Tx + HART)
Field-Side Max. Power (Po)	≤ 0.65 W
Safe-Area Output	4 … 20 mA (Active / Passive — mirrors field current)
HART Transparency	Yes — Full HART FSK Signal Passthrough (No HART filter / blocking)
Galvanic Isolation	3 kV AC (Test) between Input/Output/Supply
Terminals	Screw Clamp (Cage Clamp)

Technical Specifications (Mechanical & Certification)

Parameter	Specification
Mounting	35 mm DIN Rail (EN 60715, Top-hat)
Housing Width	12.5 mm (K-System compact)
Connection Type	Screw Terminals (solid/stranded wire)
Operating Temperature	-20 … +60 °C
Storage Temperature	-40 … +85 °C
Protection Rating	IP20 (Enclosed in Cabinet)
Hazardous Area Approval	ATEX / IECEx: [Ex ia] IIC T4/T6 FM / cCSAus: Class I, Div. 1, Groups A-D
Functional Safety (SIL)	SIL 2 (SIL 3 via Architecture) per IEC 61508 / IEC 61511
Standards	IEC 60079-0, IEC 60079-11, EN 50270 (EMC)

Key Features

HART Protocol Transparency: Passes HART FSK digital communication bidirectionally — enables remote configuration, trim, and diagnostics of smart transmitters without removing the barrier.
Galvanic 3-Way Isolation: Separates hazardous area, safe area, and power supply — protects control system from ground loops and transient surges.
Universal 2-Wire Transmitter Support: Powers any standard 4-20mA loop-powered HART transmitter (pressure, temperature, flow, level) in Ex ia circuits.
Compact DIN Rail Footprint: 12.5 mm width — high-density marshalling in system cabinets.

Applications

Hazardous Area Analog Loops: Connecting 4-20mA HART transmitters (e.g., Endress+Hauser, Yokogawa,) in Zone 1/Division 1 to DCS/PLC analog input cards.
SIS & Process Control: SIL 2/3 capable — suitable for safety-related measurement loops where an isolated barrier is required.
Fieldbus Migration: Retrofit legacy non-smart loops with HART-enabled transmitters — barrier remains in place without rewiring.

Note: For 2-channel version see KCD2-STC-Ex1.2 or KCD2-STC-Ex2 (dual channel). For non-HART / filtered version (blocks digital comms), see KCD2-SD-Ex1.xxx. Always verify Entity Parameters (Uo, Io, Po, Ci, Li) against your transmitter's Ex ia certification before installation.
