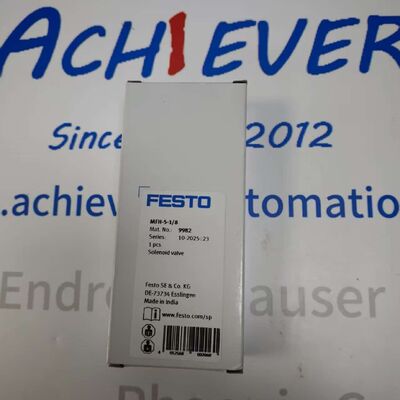

Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent

Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent
Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent

Large Image :  Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent Get Best Price

Product Details:
Place of Origin: IN
Brand Name: FESTO
Certification: ATEX
Model Number: MFH-5-18
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Festo 5/2 hand lever valve G1/8

,

Festo spring return hand lever valve

,

Festo detent hand lever valve

Festo MFH-5-1/8 | 5/2 Hand Lever Valve G1/8, Spring Return or Detent

Festo MFH-5-1/8 5/2 way hand-operated pneumatic valve. G1/8 ports, 1.5-10 bar, lever actuation with spring return or detent, aluminum body, for manual air control.

Product Overview

The Festo MFH-5-1/8​ is a manually operated 5/2-way directional control valve​ from the MFH (Manual Foot/Hand) series, used for direct manual piloting or air shut-off in pneumatic circuits. It features G1/8" port threads, an aluminum body, and is actuated via a hand lever​ — available in either spring return (monostable)​ or detent/latched (bistable)​ version depending on the exact suffix. This valve is commonly used as a local manual override, test purge valve, or operator-controlled air supply for small actuators.

Technical Specifications (Pneumatic & Performance)

Parameter
Specification
Model Code Base​
MFH-5-1/8​ (MFH = Manual 5-port, 5/2 way, 1/8" ports)
Function​
5/2 Way — 5 Ports, 2 Positions (Mono or Bi-stable by suffix)​
Port Size​
G1/8"​ (BSP Parallel Female)
Operating Pressure​
1.5 … 10 bar​
Nominal Flow (Qn at 6 bar, Δp=1 bar)​
Approx. 300 … 400 L/min​ (Typical for G1/8 MFH)
Operating Medium​
Filtered Compressed Air (ISO 8573-1 Class 4, lubricated or non-lubricated)
Actuation​
Hand Lever​ — Push/Pull or Toggle (Return: Spring-return or Detent/Latch — check full code)
Leakage (Internal)​
< 50 cm³/min (Seat-sealed poppet/spool)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Mounting​
Through-holes (Base)​ or optional sub-base (VS series)​
Body Material​
Die-Cast Aluminum (Anodized)
Seal Material​
NBR (Standard)
Ambient Temperature​
-10 … +60 °C​
Weight (Approx.)​
~0.25 kg
Conforms to​
ISO 5599/1 (Port Pattern — mini version, not full ISO 5599 size 1)

Key Features

  • Manual Override Capability:​ Provides a simple mechanical means to apply/vent air to a cylinder or pilot line — useful during commissioning, fault-finding, or as a local operator control.
  • G1/8 Compact Footprint:​ Small form factor suitable for test benches, training rigs, and machine-mounted manual air isolation.
  • Choice of Return Action:​ Available in spring-return (returns to home on lever release) or detent/latch (stays in last position) — select based on application need.
  • Direct Porting or Sub-Base:​ Can be piped directly via G1/8 ports or mounted on a matching Festo VS sub-base for cleaner panel installation.

Applications

  • Manual Cylinder Control:​ Direct hand-operated extend/retract of small double-acting cylinders in jigs and fixtures.
  • Test & Commissioning Bench:​ Purge, blow-down, or manually pilot larger solenoid valves during startup.
  • Operator Air Supply Switch:​ Local on/off for air to a workbench tool or small vacuum/ejector unit.
  • Training / Demonstration:​ Used in pneumatics labs to illustrate 5/2 way spool valve operation.
Note: The base code MFH-5-1/8​ is often followed by a suffix indicating lever style and return — e.g., MFH-5-1/8-S (spring return)​ or MFH-5-1/8-B (detent/bistable). For foot-operated version see MFH-5-1/4-F. Sub-base (VS-…-1/8) and mufflers (UM-…) are ordered separately if not using direct port piping.
