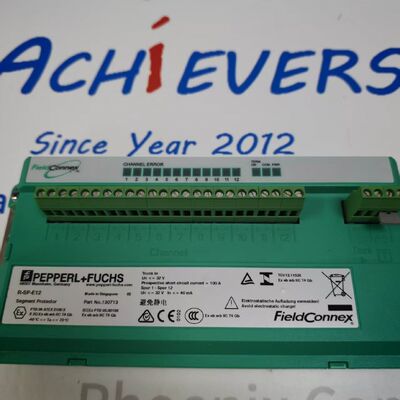

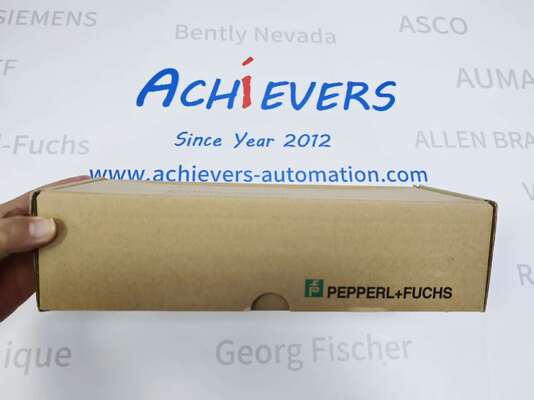

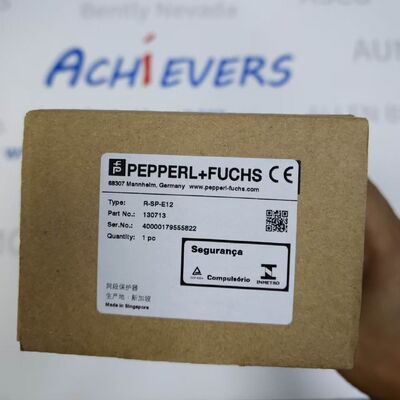

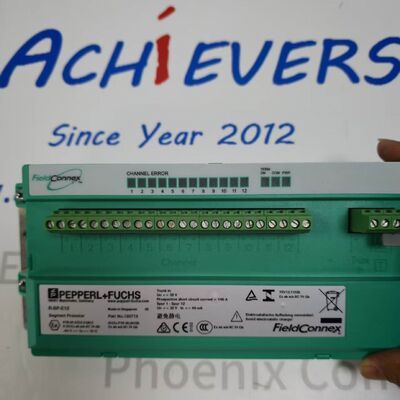

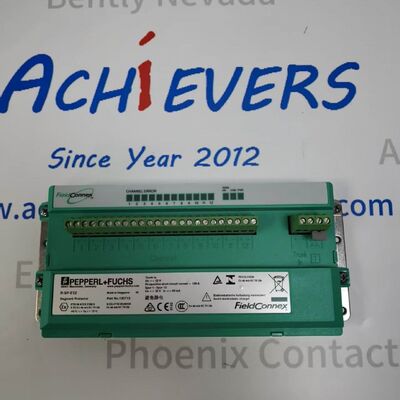

Pepperl+Fuchs R-SP-E12 | FieldConnex Segment Protector, 12 Spurs, Ex eb mb, DIN Rail

Pepperl+Fuchs R-SP-E12 | FieldConnex Segment Protector, 12 Spurs, Ex eb mb, DIN Rail
Pepperl+Fuchs R-SP-E12 | FieldConnex Segment Protector, 12 Spurs, Ex eb mb, DIN Rail
video play

Large Image :  Pepperl+Fuchs R-SP-E12 | FieldConnex Segment Protector, 12 Spurs, Ex eb mb, DIN Rail Get Best Price

Product Details:
Place of Origin: SG
Brand Name: PEPPERL+FUCHS
Certification: ATEX
Model Number: R-SP-E12
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Pepperl+Fuchs fieldconnex segment protector

,

DIN rail safety barrier

,

Ex eb mb segment protector

Pepperl+Fuchs R-SP-E12 | FieldConnex Segment Protector, 12 Spurs, Ex eb mb, DIN Rail
Pepperl+Fuchs R-SP-E12 Fieldbus Segment Protector with 12 short-circuit protected spurs for FOUNDATION Fieldbus H1 & PROFIBUS PA. Ex eb mb IIC T4 Gb, DIN rail mount, integrated 100 Ω terminator.

Product Overview

The Pepperl+Fuchs R-SP-E12​ is a FieldConnex® Segment Protector​ designed for cabinet installation in hazardous areas (Zone 1 / Div. 2). It provides 12 individually short-circuit-protected spur outputs (Ex e)​ for connecting field instruments on FOUNDATION Fieldbus H1 or PROFIBUS PA​ segments. Each spur has independent current limitation to prevent a fault on one device from bringing down the entire bus segment. The unit features an integrated selectable 100 Ω terminating resistor, trunk/spur surge protection, and diagnostic LEDs (Power, Bus Activity, Termination ON, Channel Error). It is housed in a resin-filled polycarbonate enclosure for DIN rail mounting and carries ATEX / IECEx Ex eb mb IIC T4 Gb​ certification.

Technical Specifications (Fieldbus & Electrical)

Parameter
Specification
Order Code​
R-SP-E12​
Function​
Segment Protector — 12 Spur Outputs with Individual Short-Circuit Limitation
Supported Protocols​
FOUNDATION Fieldbus H1, PROFIBUS PA (IEC 61158-2)
Trunk Rated Voltage​
9 … 32 V DC​
Spur Rated Voltage / Current​
Max. 32 V DC / Max. 40 mA per spur
Spur Short-Circuit Current​
Max. 52 mA​ per spur
Self Current Consumption​
Max. 9 mA
Voltage Drop (Trunk → Spur)​
Max. 1.3 V
Integrated Terminating Resistor​
Selectable 100 Ω​ (via jumper)
Surge Protection​
Trunk & Spurs — activates > typ. 39 V (max. 41 V)
Hazardous Area Rating​
II 2 G Ex eb mb IIC T4 Gb​ (ATEX/IECEx)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Number of Spurs​
12​ (screw terminals, fixed)
Trunk Connection​
Screw terminal, fixed
Wire Cross Section​
Max. 2.5 mm² / AWG 12–24​
Mounting​
35 mm DIN Rail​
Housing Material​
Polycarbonate, resin-filled
Degree of Protection​
IP20​ (when mounted in cabinet)
Dimensions (H × W × D)​
100 × 216 × 50 mm
Weight​
Approx. 800 g​
Ambient Temperature​
-40 … +70 °C​
Storage Temperature​
-40 … +85 °C
Indicators (LEDs)​
PWR (green), COM (yellow), TERM ON (yellow), CH ERROR (red flash per spur)

Key Features

  • Individual Spur Short-Circuit Protection:​ A shorted field device on one spur does not disrupt communication on the remaining 11 spurs — maximizes segment availability.
  • Ex eb mb Certification:​ Suitable for installation in Zone 1/Div. 2 with field devices in Zone 1/Div. 1.
  • Built-In Terminator & Surge Protection:​ Reduces external wiring; trunk and spur overvoltage protection included.
  • Diagnostic LEDs:​ Immediate visual indication of power presence, bus activity, terminator engagement, and which specific spur has a fault.
  • Resin-Filled Enclosure:​ Enhances ingress and vibration resistance for cabinet-mounted process automation environments.

Typical Applications

  • Process Plant Fieldbus Segments:​ Distributing FOUNDATION Fieldbus H1 or PROFIBUS PA to 12 instruments in oil & gas, petrochemical, and pharmaceutical plants.
  • Hazardous Area Retrofits:​ Upgrading existing analog loops to digital fieldbus with short-circuit isolation per spur.
  • Panel Builders / System Integrators:​ DIN-rail mounted segment protection inside certified enclosures for Zone 1 installations.
