Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread

Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread
Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread

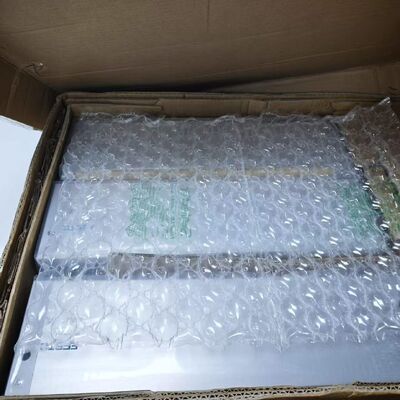

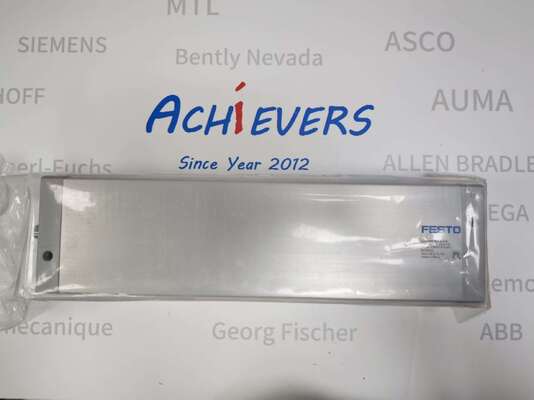

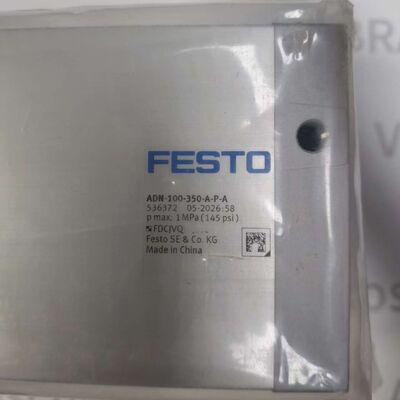

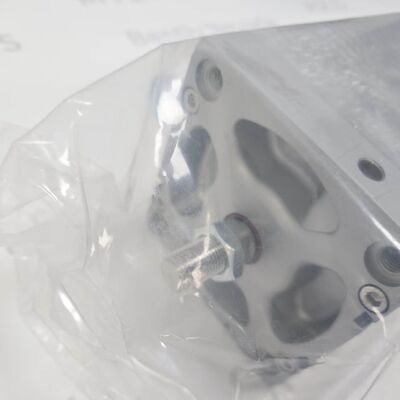

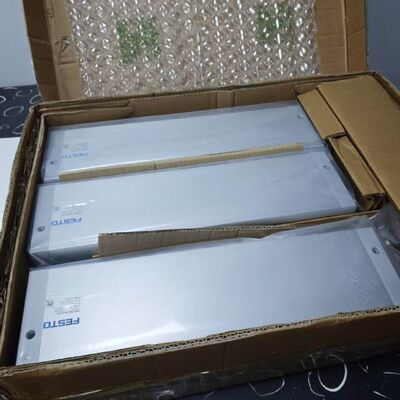

Large Image :  Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread Get Best Price

Product Details:
Place of Origin: CN
Brand Name: FESTO
Certification: ATEX
Model Number: ADN-100-350-A-P-A
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Festo ADN compact cylinder 100mm

,

Festo cylinder 350mm stroke

,

ADN cylinder male thread cushion

Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread

Festo ADN-100-350-A-P-A double-acting compact pneumatic cylinder per ISO 21287. 100mm bore, 350mm stroke, elastic cushioning both ends, male piston rod thread (M20×1.5), G1/2 ports, magnetic piston for proximity sensing.

Product Overview

The Festo ADN-100-350-A-P-A​ is a double-acting compact pneumatic cylinder​ conforming to ISO 21287, offering up to 50% space saving versus ISO 15552 cylinders. It features a 100 mm bore, 350 mm stroke, elastic cushioning rings/pads at both ends (P-code), and a male piston rod thread (A-code = M20×1.5). The cylinder has an integrated magnetic piston​ for non-contact position detection via slot-mounted proximity switches (SMT/SME series). Pneumatic ports are G1/2"​ and the body is anodized aluminum alloy with PUR seals. Suitable for space-limited automation where longer strokes are required.

Technical Specifications (Dimensional & Mechanical)

Parameter
Specification
Order Code​
ADN-100-350-A-P-A​
Series​
Festo ADN — Compact Cylinder per ISO 21287
Bore Diameter​
100 mm​
Stroke Length​
350 mm​ (X-stroke / extended stroke option)
Piston Rod Thread​
Male M20 × 1.5​ (Code A)
Cushioning​
P — Elastic Cushioning Rings/Pads Both Ends​
Position Sensing​
Yes — Magnetic Piston, side sensor slot (T-slot/C-slot compatible)
Ports (Pneumatic)​
G1/2"​ (BSPP Female)
Mounting​
Via through-holes in end caps or with ISO accessory kits

Technical Specifications (Performance & Operating)

Parameter
Specification
Action​
Double-Acting​
Operating Pressure​
0.06 … 1.0 MPa (0.6 … 10 bar)​
Theoretical Force @ 6 bar​
Advance: 4712 N​ / Retract: 4418 N​ (accounting for rod area)
Operating Medium​
Filtered Compressed Air per ISO 8573-1:2010 [7:4:4], lubricated or non-lubricated
Ambient / Fluid Temp.​
-20 … +80 °C​
Conforms to​
ISO 21287​
Materials​
Anodized Aluminum Barrel / High-Alloy Steel Piston Rod / Die-Cast Aluminum End Caps (PUR seals, CRC Class 2)
Weight (Approx.)​
~8.3 kg (estimated for 350 mm stroke; base 10 mm ≈ 3.7 kg + ~13 g/mm)

Key Features

  • ISO 21287 Compact Design:​ Up to 50% shorter than ISO 15552 cylinders — ideal for tight envelope installations.
  • Elastic End Cushioning (P):​ Polymer buffer rings absorb residual kinetic energy at end positions — no adjustment required, suitable for moderate loads/speeds.
  • Magnetic Piston + Sensor Slot:​ Accepts Festo SMT-8 / SME-8 proximity switches for end-position feedback without mechanical contact.
  • Male Piston Rod (A):​ Includes piston rod nut — ready for clevis, eye, or custom coupling.
  • Extended Stroke Availability:​ X-strokes (up to 500 mm for Ø100) allow compact footprint with longer travel than standard ADN catalog stroke range.

Typical Applications

  • Pick-and-Place / Transfer:​ Where a compact footprint is required but stroke exceeds typical ADN standard range (5–80 mm).
  • Press / Clamp Fixtures:​ High thrust (Ø100) in confined machine frames.
  • Packaging Machinery:​ Actuating gates, strippers, or ejectors where ISO 15552 tie-rod cylinders are too bulky.
  • Retrofit in Tight Spaces:​ Replacing bulkier ISO 15552 cylinders while maintaining same bore/stroke performance.
Code Decode: ADN = Compact cylinder ISO 21287 | -100 = Ø100 mm bore | -350 = 350 mm stroke (X-stroke) | -A = Male piston rod thread | -P = Elastic cushioning both ends | -A = With air connections / standard sealing. For self-adjusting pneumatic cushion use -PPS instead of -P; for female piston rod thread use -I.

Festo ADN-100-350-A-P-A | ADN Compact Cylinder Ø100mm 350mm Stroke, Elastic Cushion, Male Thread 0
