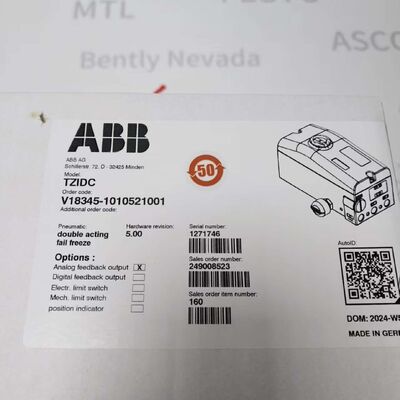

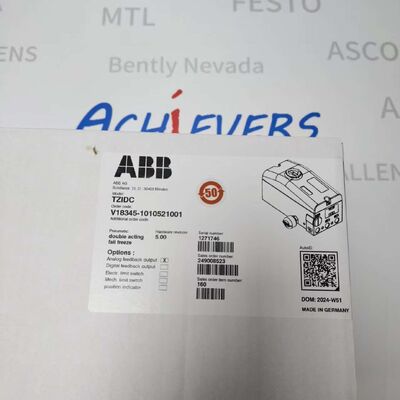

ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting

ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting
ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting

Large Image :  ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting Get Best Price

Product Details:
Place of Origin: DE
Brand Name: ABB
Certification: ATEX
Model Number: TZIDC
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

ABB TZIDC HART valve positioner

,

NAMUR mount valve positioner

,

4-20mA double acting positioner

ABB TZIDC V18345 | Intelligent HART Valve Positioner 4–20mA, NAMUR Mount, 1/2" NPT — Single / Double Acting
ABB TZIDC (V18345 series) intelligent electro-pneumatic valve positioner with HART protocol, 4–20 mA input, single/double-acting, NAMUR mount, IP66, auto-calibration. Compatible with linear & rotary pneumatic actuators.

Product Overview

The ABB TZIDC (Type V18345 series)​ is a microprocessor-based intelligent electro-pneumatic positioner​ for mounting on pneumatic linear or rotary actuators. It accepts a standard 4–20 mA DC (two-wire) setpoint signal​ with HART 5/7 communication​ superimposed, and converts it to a pneumatic output (single-acting: 1 output; double-acting: 2 outputs) to drive the valve to the commanded position. The positioner features fully automatic calibration (auto-zero, auto-travel, auto-PID tuning)​ via three pushbuttons and a local LCD, NAMUR / VDI-VDE 3845 mounting, and IP65/IP66 aluminum housing. Electrical connection is 1/2"-14 NPT​ with 1/4"-18 NPT pneumatic ports. Typical reference models include V18345-1010121001​ (single-acting, fail-safe, 4–20 mA feedback) and V18345-1010421001​ (double-acting, fail-safe, 4–20 mA feedback). Suitable for chemical, oil & gas, power, water treatment, and pharma process control loops.

Technical Specifications (Electrical & Signal)

Parameter
Specification
Series / Type​
ABB TZIDC — V18345 Series Intelligent Positioner
Input Signal​
4–20 mA DC, two-wire (loop-powered), load ≤ 485 Ω
Communication Protocol​
HART 5 / HART 7​ (FSK modulated on 4–20 mA loop)
Position Feedback (Optional)​
4–20 mA DC​ analog (two-wire), or digital switch contact
Supply / Loop Power​
Powered from 4–20 mA signal loop (nom. 7.5–30 V DC across terminals)
Digital Inputs​
1 × for remote open/close or disable (0–5 V / 11–30 V logic)
Digital Outputs​
1 × NAMUR-type limit switch output (optional)
Accuracy / Linearity​
±0.5 % FS​ (typical), hysteresis ≤ 0.1 % FS
Dead Band (Adjustable)​
0.1 – 10 % of span

Technical Specifications (Pneumatic & Mechanical)

Parameter
Specification
Actuator Type​
Single-Acting (1 output + spring return)​ or Double-Acting (2 outputs)​ — per model selected
Supply Air Pressure​
1.4 – 6.0 bar (20 – 90 psi)​ — filtered, oil-free (ISO 8573-1 Class 3)
Output Pressure​
0 – Supply Pressure (linear)
Air Consumption (Steady State)​
≤ 0.03 kg/h (≈ 0.015 scfm) @ 1.4 bar supply
Travel Range​
Linear: 10–100 mm (std), extendable; Rotary: up to 90° (std), up to 270° with extended sensor
Mounting Standard​
NAMUR (VDI/VDE 3845)​ for rotary actuators; direct link for linear actuators (DIN/IEC 534)
Electrical Connection​
1/2"-14 NPT​ (threaded) — cable gland typically supplied
Pneumatic Connection​
1/4"-18 NPT​ (supply & output) — also available with G 1/4"
Housing / Protection​
Die-cast Aluminum, epoxy painted — IP65 / IP66 (NEMA 4X)​
Ambient Temperature​
-40 … +85 °C​ (some variants -25 … +70 °C)
Vibration Resistance​
10 g (10–150 Hz)​ per IEC 60068-2-6
Weight (Approx.)​
1.7 kg
Safety / SIL​
SIL 2 capable (per IEC 61508, with appropriate configuration)
Hazardous Area Approval​
Non-Ex (std.), or Ex ia / Ex d / Ex nA — per suffix

Key Features

  • One-Button Auto-Calibration:​ Full auto-tuning of zero, span, direction, and PID in < 3 min — drastically reduces commissioning time.
  • HART Communication:​ Remote configuration, diagnostics, and valve signature testing via handheld or DCS — no separate comms card needed.
  • Universal Actuator Fit:​ NAMUR rotary mount + linear link kit — works with virtually all major pneumatic actuator brands.
  • Adaptive Control Algorithm:​ Microprocessor continuously optimizes gain to suit valve/actuator dynamics — stable on both fast small valves and large sluggish ones.
  • Low Air Consumption & Self-Diagnostics:​ < 0.03 kg/h steady-state air use; built-in checks for valve sticking, packing friction, air supply loss, and sensor drift.

Typical Applications

  • Process Control Valves:​ Flow, pressure, level, and temperature control loops in refineries, petrochemical, and fine chemical plants.
  • Power Generation:​ Boiler feedwater, steam extraction, and desuperheating station control valves.
  • Water & Wastewater:​ Chlorine dosing, pH control, and sludge line modulating valves.
  • Pharmaceutical & Food:​ CIP/SIP skid valve control where traceability and HART diagnostics are required.
Typical representative model codes: V18345-1010121001​ = Single-acting, fail-safe (go to spring position on signal loss), non-Ex, 4–20 mA feedback, 1/2" NPT / 1/4" NPT — V18345-1010421001​ = Double-acting same options. For double-acting with fail-freeze (3-way protection module) or Ex d/ia variants, adjust the 4th & 5th digit groups accordingly (e.g. V18345-2010421001 for double-acting Ex d with mechanical indicator).
