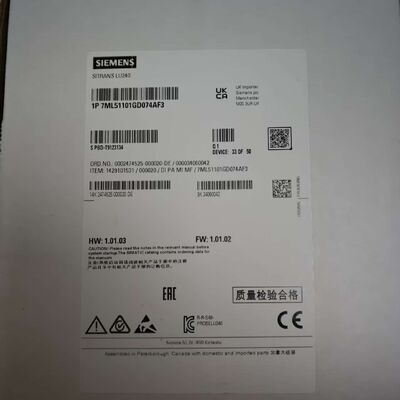

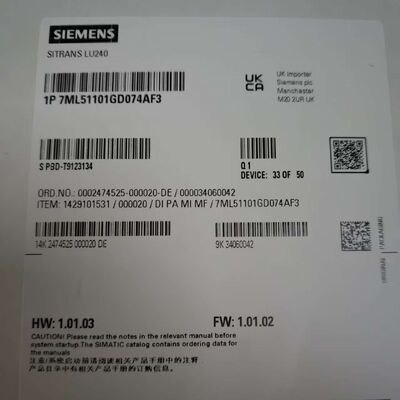

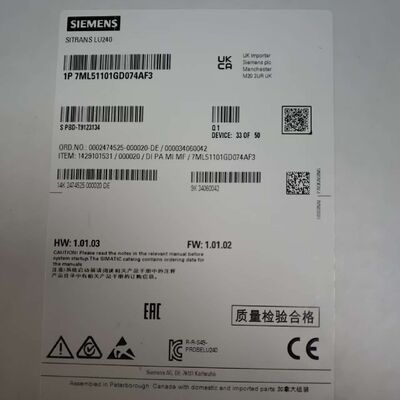

7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X

7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X
7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X 7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X 7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X

Large Image :  7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X Get Best Price

Product Details:
Place of Origin: CA
Certification: ATEX
Model Number: 7ML51101GD074AF3
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Sitrans LUT420 ultrasonic level controller

,

Sitrans LUT420 2-relay controller

,

Sitrans LUT420 HART level controller

7ML5110-1GD07-4AF3 | Sitrans LUT420 Ultrasonic Level Controller, 2-Relay, 4–20mA, HART, NEMA 4X
 7ML5110-1GD07-4AF3 (Sitrans LUT420) ultrasonic level / flow controller — 1 transducer, 2×SPDT relays, 1×4–20mA, HART, backlit LCD, 100–240V AC, NEMA 4X / IP66. Compatible with XRS-5 / XPS-15 / ST-H transducers.

Product Overview

7ML5110-1GD07-4AF3​ is a Sitrans LUT420 series ultrasonic level and open-channel flow controller​ — the mid-tier model in the LUT400 family. It accepts one ultrasonic transducer (compatible with  XRS-5, XPS-15, ST-H, and third-party 420/485 kHz probes) and provides continuous non-contact level measurement plus open-channel flow calculation per ISO 1438/ISO 772 flume/weir tables. The unit features a backlit graphical LCD, 2 programmable SPDT relay contacts​ (alarm / pump control / alternating), 1 isolated 4–20 mA output​ (level or flow), and HART communication​ superimposed on the analog loop. Power is 100–240 V AC 50/60 Hz. The NEMA 4X / IP66 polycarbonate enclosure is suitable for wall or pipe mounting in municipal and industrial sites. Programming is via front keypad or SIMATIC PDM / HART handheld.

Technical Specifications (Measurement & I/O)

Parameter
Specification
Order Code​
7ML5110-1GD07-4AF3​ (Sitrans LUT420 — 1 Transducer, 2 Relays, 1 AO, HART)
Series​
 Sitrans LUT400 — LUT420 (Level + Open-Channel Flow + Differential Level)
Connected Transducer​
1 × Ultrasonic (XRS-5 / XPS-10 / XPS-15 / ST-H 42kHz or 485kHz; 420kHz also supported on select probe)
Measuring Range (Typical)​
0.3 … 15 m (depends on transducer — e.g. XRS-5: 0.3–8 m liquid, XPS-15: 0.25–15 m)
Resolution​
3 mm or 0.1 % of measured value
Accuracy (Electronics)​
± 0.1 % FS (level calc.); overall accuracy limited by transducer & install conditions
Blanking / Deadband​
Programmable 0–3 m (excludes transducer ringing zone)
Open-Channel Flow​
Built-in ISO 1438 flumes (Parshall, Palmer-Bowlus) & V-notch / rectangular weirs; custom K-factor
Analog Output​
1 × Isolated 4–20 mA DC​ (sourcing/sinking selectable) — assignable to level, flow, % or differential
Relay Outputs​
2 × SPDT (Form C) electromechanical relays​ — 5 A @ 250 V AC / 30 V DC resistive — Hi / Lo / Hi-Hi / Lo-Lo / Pump Alternating / Failure
Digital Comm.​
HART 5/6/7​ (on 4–20 mA loop); optional RS-485 Modbus RTU on LUT430/440 models (not std. on LUT420)
Display​
Backlit graphic LCD (128 × 64 px) — level bar graph, numeric value, relay status, diagnostics

Technical Specifications (Mechanical & Electrical)

Parameter
Specification
Power Supply​
100–240 V AC (±10 %), 50/60 Hz, typ. 10 VA
Enclosure Material​
Polycarbonate, gray (NEMA 4X / IP66) — gasketed with transparent window
Mounting​
Wall-mount (std. — 4 × M5 screws) or 2″ pipe-mount bracket (ordered separately)
Electrical Connection​
Screw terminals — power, analog loop, relay contacts, transducer pigtail (shielded cable recommended)
Transducer Cable (Max.)​
Recommended ≤ 150 m (500 ft) — coax or twisted pair shielded, check attenuation
Operating Temp. (Ambient)​
-20 … +60 °C​ (-4 … +140 °F)
Humidity​
0–95 % RH non-condensing
Certifications​
CE, cULus Listed (General Purpose / Type 4X), FM (some variants Class I Div 2 — confirm per region), EAC
Dimensions (H × W × D)​
≈ 244 × 190 × 114 mm (wall-mount version)
Weight (Approx.)​
1.6 kg

Key Features

  • One-Transducer Ultrasonic Level + Flow:​ Measures level then computes open-channel flow — eliminates separate flow meter for Parshall flume / V-notch weir applications.
  • HART on 4–20 mA Loop:​ Remote configuration, echo-profile viewing via PDM or handheld — no extra comms wiring.
  • Two Programmable Pump-Control Relays:​ Supports lead-lag alternating, run-time equalization, and failure alarms — ideal for lift-station duplex pump control.
  • Echo-Loss & Built-Up Diagnostics:​ Detects foam, turbulence, or transducer fouling; programmable fail-safe action on lost echo.
  • NEMA 4X / IP66 Polycarbonate Housing:​ UV-stabilized, suitable for outdoor municipal wet wells and washdown areas.

Typical Applications

  • Wastewater Lift Stations:​ Duplex pump control via 2 relays + level readout to SCADA via 4–20 mA HART.
  • Storm / Sanitary Sewer Monitoring:​ Open-channel flow in Parshall flume with level backup — report both to plant DCS.
  • Industrial Process Sumps:​ Acid / alkali sump level with high/low alarm and pump interlock.
  • Cooling Tower Basin Level:​ Non-contact level in harsh environments where float switches foul.
