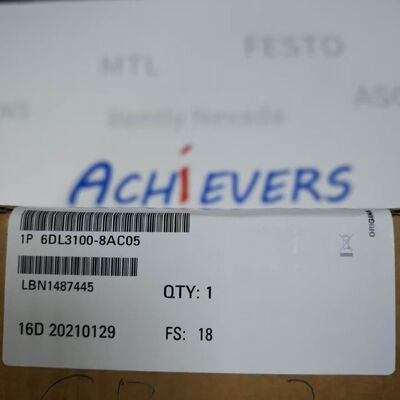

6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC

6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC
6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC 6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC 6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC

Large Image :  6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC Get Best Price

Product Details:
Place of Origin: DE
Certification: ATEX
Model Number: 6DL3100-8AC05
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

SIMATIC S5-115U CPU 943 PLC

,

48 KB work memory PLC

,

24V DC SIMATIC S5-115U

6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC
6DL3100-8AC05 SIMATIC S5-115U CPU 943 central processing unit — 48 KB work memory, 2× serial IF (PG/OP), 2× S5 system bus, 24 V DC powered. For S5-115U rack (UR/ER), programmed with STEP 5.

Product Overview

6DL3100-8AC05​ (also listed as 6ES5943-8AC05​ — S5-115U CPU 943) is the central processing unit for the SIMATIC S5-115U programmable controller system. It provides 48 KB work memory (RAM, expandable with EPROM memory sub-module), two integrated serial interfaces (IF1 = PG/OP for programming/HMI at 9.6–19.2 kbps AS511; IF2 = optional PG/OP or printer/baud rate selectable), and connects to up to two S5 I/O buses​ for central and expansion racks (UR/ER with IM 305/306/308). The CPU is powered from the S5-115U rack's 24 V DC supply module (PS 942 / PS 945)​ — no separate power connection on the CPU itself. Programming is via STEP 5 (PG720/740/760 or SIMATIC Manager with S5 option package). This is a legacy / mature product —  recommends migration to SIMATIC S7-1500 / S7-1200 for new projects.

Technical Specifications (CPU & Memory)

Parameter
Specification
Order Number​
6DL3100-8AC05​ (equivalent 6ES5943-8AC05 — S5-115U CPU 943)
Series​
SIMATIC S5 — S5-115U Central Processing Unit (CPU 943)
Work Memory (Internal RAM)​
48 KB​ (user program + data)
Memory Expansion​
Via memory sub-module (EPROM / Flash-EPROM / RAM): 8 / 16 / 32 / 64 KB — plug-in on CPU front (e.g. 6ES5 374-0AA21 = 64 KB EPROM)
Flags (M-Bits)​
2048 (M 0.0 – M 255.7)
Timers (S5-T)​
128 (T 0 – T 127)
Counters (S5-C)​
128 (C 0 – C 127)
Local Data Stack​
256 bytes / priority level (4 priority levels: OB1, OB20–OB23/OB30–OB33/OB35–OB38)
Scan Time (Typical)​
1.2 ms / 1K statements (binary ops); 2.5 ms / 1K statement (word ops) — depends on program
Serial Interfaces​
IF1:​ PG/OP (AS511), fixed 9.6 kbps for PG, 19.2 kbps for OP
IF2:​ PG/OP or Printer (selectable baud 300–19200 bps) — 15-pin Sub-D female

Technical Specifications (System & Mechanical)

Parameter
Specification
S5 Bus Connection​
2 × S5 system bus connectors (rear of CPU) — for UR (central) + ER (expansion via IM 305/306)
Max. I/O Address Space​
1024 DI + 1024 DO + 128 AI + 128 AO (within S5-115U rack limit)
Max. Expansion Racks​
Up to 3 × ER (Expansion Racks) via IM 305 / IM 306 / IM 308
Power Supply Requirement​
Powered via S5-115U rack backplane from PS 942 (24 V DC, 4 A)​ or PS 945 (24 V DC, 8 A)​ — no separate CPU power terminal
Operating Temp.​
0 … +60 °C​
Storage Temp.​
-40 … +85 °C
Mounting​
S5-115U rack slot 1 (leftmost) — 1 slot width (standard S5 module format ~ 80 mm W)
Dimensions (W × H × D)​
≈ 80 × 290 × 210 mm
Weight (Approx.)​
0.8 kg
Certifications​
CE, cULus (some variants), DIN / IEC 61131-2 (legacy)
Software​
STEP 5 V7.x (last version) / S5 option in STEP 7 (requires S5-PCI/PCMCIA adapter for online)

Key Features

  • Proven S5-115U Architecture:​ Widely deployed in process and manufacturing — direct spare/replacement for existing installed base.
  • Dual Serial Ports:​ IF1 for PG/OP programming & HMI; IF2 configurable as second PG/OP or printer output for hardcopy diagnostics/logs.
  • EPROM Sub-Module Support:​ Program can be burned to EPROM for non-volatile operation — no battery dependency for code retention (battery backs up retentive data only).
  • Two S5 Bus Interfaces:​ Connects central UR + up to 3 expansion ERs — scales to typical medium-size machine/process applications.
  • STEP 5 Compatible:​ Familiar programming environment (STL/LAD/CSF) for maintenance teams with legacy S5 expertise.

Typical Applications

  • Legacy Process Plant Retrofit / Spare:​ Replacement CPU for running S5-115U systems in water treatment, batch mixing, boiler control where full migration is deferred.
  • Machine Tool / Special Machinery Service:​ Keeping older transfer lines, presses, and custom-built equipment operational with original S5 control logic.
  • OEM Stand-Alone Equipment (Installed Base):​ Where S5-115U was specified originally and only a like-for-like replacement is acceptable to avoid re-validation.
  • Training / Maintenance Stock:​ Strategic spare held by facilities running S5 to minimize downtime.

6DL3100-8AC05 | SIMATIC S5-115U CPU 943, 48 KB Work Mem., 2× PG/OP IF, 2× S5 Bus, 24V DC 0
