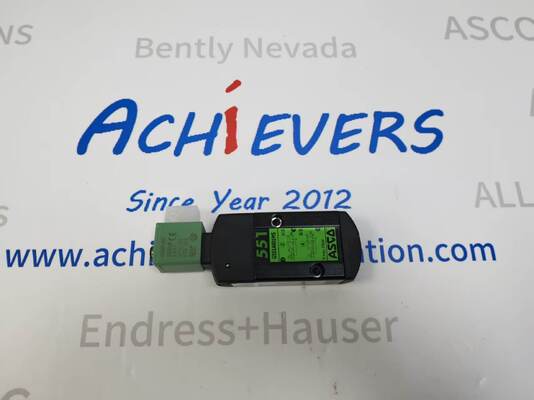

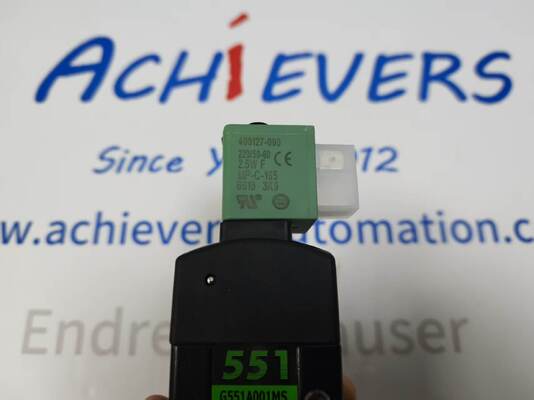

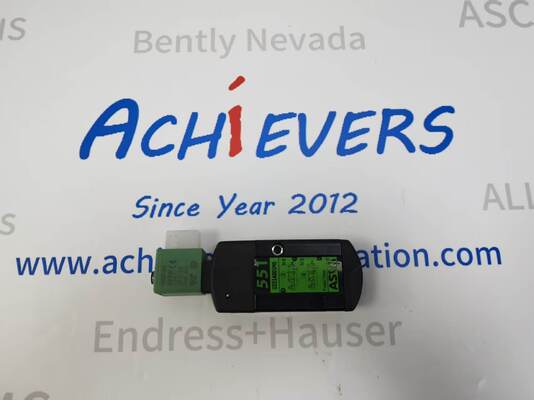

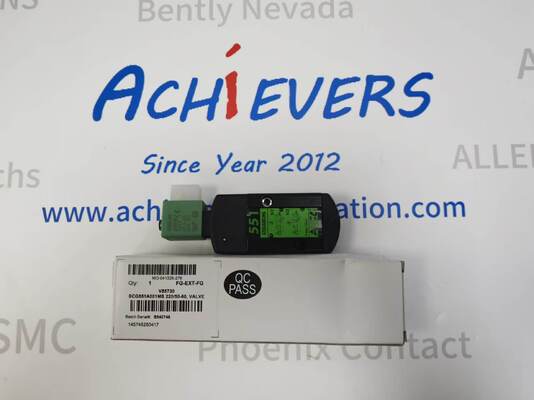

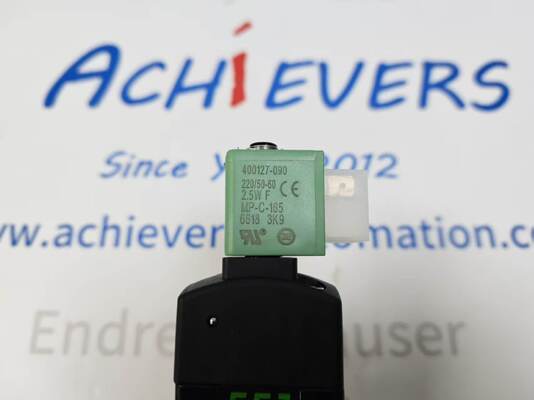

ASCO SCG551A001MS | 551 Series 5/2 Solenoid Valve 1/4" NPT, 24V DC, Spring Return, Namur Mount

Large Image : ASCO SCG551A001MS | 551 Series 5/2 Solenoid Valve 1/4" NPT, 24V DC, Spring Return, Namur Mount Get Best Price

Product Details:

Place of Origin:	SG
Brand Name:	ASCO
Certification:	ATEX
Model Number:	SCG551A001MS
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

ASCO 551 Series solenoid valve 24V DC

1/4 NPT solenoid valve spring return

Namur mount solenoid valve with warranty

ASCO SCG551A001MS | 551 Series 5/2 Solenoid Valve 1/4" NPT, 24V DC, Spring Return, Namur Mount

ASCO SCG551A001MS 551 series 5/2 or 3/2 way solenoid valve — 1/4" NPT ports, Namur interface, spring return (monostable), 24 V DC, 3–10 bar. For piloting pneumatic actuators & cylinders.

Product Overview

The ASCO SCG551A001MS (commonly referenced as SCG551A001MS, Numatics/ASCO 551 Series) is a 4-way (5/2 or 3/2 convertible) solenoid pilot valve with a Namur direct-mounting interface for controlling single-acting or double-acting pneumatic actuators. It features 1/4" NPT ports (or G1/4" in metric regions — Suffix MS typically denotes Metric/G threads or special seal material; base 551A001 = 1/4" NPT), spring return (monostable / single solenoid), and is supplied for 24 V DC (8 W coil, Class F) operation. The valve is convertible between 5/2 (double-acting cylinder pilot) and 3/2 (single-acting cylinder / normally closed) by rotating the exhaust blanking plugs. Body is anodized aluminum; seals are NBR (Buna-N) standard. Suitable for piloting process valves, air cylinders, and clamping devices in general industrial automation.

Technical Specifications (Valve & Flow)

Parameter	Specification
Model / Order Code	SCG551A001MS (ASCO Numatics 551 Series — Monostable, Namur, 24 V DC)
Series	ASCO / Numatics 551 — Sub-base / Namur Mountable 4/2–5/2–3/2 Spool Valve
Function	5/2 Way (Double Solenoid convertible to 3/2 NC) — spool type
Actuation	Single Solenoid, Spring Return (Monostable) — de-energize → spool returns to home position
Port Size	1/4" NPT Female (base ports — P, A, B, R, S); Exhaust ports R/S can be plugged for 3/2 use
Nominal Flow (Cv / qₙ)	Cv ≈ 1.2 (≈ 700 L/min ANR @ ΔP 1 bar)
Orifice Size	6 mm (typical for 551 series spool)
Media	Filtered Compressed Air (40 µm prefilter recommended), lubricated or non-lubricated
Operating Pressure Range	3 … 10 bar (0.3 … 1.0 MPa / 45 … 145 psig) — pilot pressure must be ≥ 3 bar
Pilot Pressure (Min.)	Same as operating pressure (self-piloted from P-port)

Technical Specifications (Electrical & Mechanical)

Parameter	Specification
Solenoid Voltage / Power	24 V DC, 8 W (Hot — Class F insulated coil) — 100 % ED (continuous duty)
Response Time (Typical)	≤ 30 ms (energize), ≤ 40 ms (de-energize) @ 6 bar
Manual Override	Lockable push-button (press to shift; twist to latch — for commissioning/test)
Seal Material	NBR (Buna-N / Nitrile) — standard; FKM optional on -V suffix variants
Body / Spool Material	Anodized Aluminum Alloy / Hardened Aluminum Spool
Mounting Interface	Namur VDI/VDE 3845 (ISO 5599-2 mini Namur pattern) — direct mount on actuator or sub-base
Ambient Temperature	-20 … +50 °C (NBR seals / DC coil)
Electrical Connection	DIN 43650 Form A (ISO 4400) 3-pin plug with LED + surge suppressor (often ordered separately: 238714-006)
Weight (Approx.)	0.45 kg
Certifications	CE, cULus (File SA5835), RoHS compliant (newer production)

Key Features

Namur Direct-Mount Capable: Bolts directly onto the pilot port of a pneumatic actuator — eliminates tubing between valve and actuator for single solenoid 5/2 or 3/2 applications.
Convertible 5/2 ↔ 3/2: Rotate exhaust blanking plugs / re-arrange port labeling — one valve covers both double-acting (5/2) and single-acting spring-return (3/2 NC) pilots.
Spring Return (Monostable): Fails to safe position on loss of power / air — important for safety-related actuator fail-close/fail-open logic.
Manual Override with Lock: Allows bench-test and commissioning without energizing coil; lockable to prevent accidental operation.
Interchangeable with Competitors: Dimensionally compatible with Festo MN1H / SMC VQC / Norgren 8400 series Namur-mount spool valves in same envelope.

Typical Applications

Pneumatic Actuator Pilot: Single solenoid 5/2 pilot for double-acting process/quarter-turn valve actuators; 3/2 NC pilot for spring-return actuators.
Air Cylinder Directional Control: Small-bore cylinder control where Namur-mount simplifies panel layout.
Clamping / Fixture Air Circuits: Start/stop air to vacuum cups, toggle clamps, and grippers.
OEM Packaging / Converting Machinery: Compact pilot valve for integrated manifold or actuator-direct-mount.

551 Series typical option decode: 551 = Series | A = Single solenoid spring return, Namur mount, NPT ports | 001 = 24 V DC 8 W coil, NBR seals, DIN plug (no plug shipped) | MS = Often denotes Metric/G thread variant or special packaging — verify against ASCO cross-reference if G1/4 required. For double solenoid (no spring return / bistable) see 551B… ; for 110/230 V AC coil see -Axxx suffix variants. DIN 43650 connector with LED+spike suppression (e.g. ASCO 238714-006 or generic Hirschmann / Binder) ordered separately.
