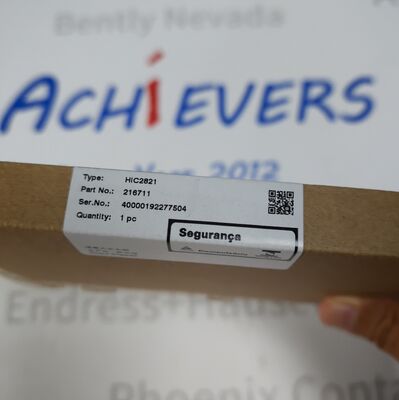

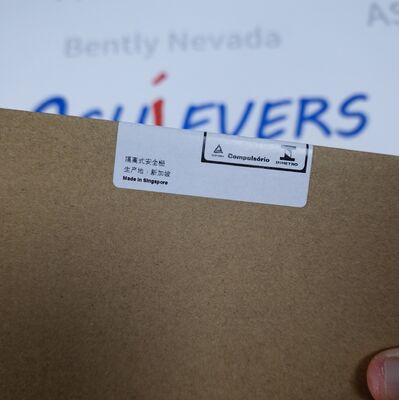

HiC2821 | 1-Ch Isolated Barrier, 24V DC Bus Powered, 2 Relay Outputs, SIL 2

Large Image : HiC2821 | 1-Ch Isolated Barrier, 24V DC Bus Powered, 2 Relay Outputs, SIL 2 Get Best Price

Product Details:

Brand Name:	P+F
Certification:	ATEX
Model Number:	HiC2821
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Pepperl Fuchs safety barrier 24V DC

Isolated safety barrier SIL 2

1-Ch safety barrier relay outputs

HiC2821 | 1-Ch Isolated Barrier, 24V DC Bus Powered, 2 Relay Outputs, SIL 2

P+F HiC2821 switch amplifier — 1-ch isolated barrier for NAMUR/dry contact inputs, 24V DC bus powered via termination board, 2 relay outputs + fault relay, SIL 2 per IEC 61508. H-System module.

Product Overview

The P+F HiC2821 is a 1-channel switch amplifier (isolated barrier) belonging to the H-System family — designed for intrinsic safety applications in hazardous areas. It transfers digital signals from NAMUR sensors or mechanical contacts (located in Zone 0/1/2) to the non-hazardous control room via galvanically isolated relay outputs. The device is 24 V DC bus powered through the HiC termination board, eliminating the need for a separate auxiliary power supply. Key capabilities include signal splitting (1 input → 2 outputs), line fault detection (LFD) with configurable thresholds, and a reversible mode of operation via DIP switches. It achieves SIL 2 systematic capability per IEC/EN 61508, making it suitable for safety-relevant control loops in oil & gas, chemical, and pharma plants.

Technical Specifications (Input & Output)

Parameter	Specification
Model	HiC2821 (P+F H-System Switch Amplifier)
Signal Type	Digital Input (NAMUR or dry contact)
Supply	19 … 30 V DC, bus powered via Termination Board (SL1), ripple ≤ 10 %, Ir ≤ 30 mA
NAMUR Characteristics	Open-circuit voltage ≈ 10 V DC, short-circuit current ≈ 8 mA
Switching Point / Hysteresis	1.2 … 2.1 mA / approx. 0.2 mA
Line Fault Detection (LFD)	Breakage I ≤ 0.1 mA, Short-circuit I ≥ 6.7 mA
Outputs	2 × Relay Contact (output I: signal; output II: signal or fault message), 50 V DC / 0.5 A per contact
Fault Output	Open collector transistor on internal fault bus (SL1: 6b)
Switching Frequency	≤ 10 Hz
Energize/De-energize Delay	≤ 20 ms / ≤ 20 ms
Mechanical Life	10^7 switching cycles

Technical Specifications (Safety & Mechanical)

Parameter	Specification
Safety Integrity Level	SIL 2 acc. to IEC/EN 61508, Systematic Capability SC 3
Hazardous Area Marking (Input)	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (allows sensors in Zone 0/1/2, 20/21/22, M1)
Hazardous Area Marking (Output)	II 3G Ex nA nC IIC T4 Gc (safe-side, non-Ex area)
Galvanic Isolation	Input/Output & Input/Supply: 375 V peak per IEC/EN 60079-11
Maximum Safe Voltage (Um)	253 V AC (both input & output sides)
Mounting	On HiC Termination Board (12.5 mm module width, coding pins 1 and 2 pre-trimmed)
Configuration	Via DIP switches on front panel (mode reversal, LFD on/off, output II function)
Indicators	3 × LEDs: Power (green), Status/Fault (yellow/red)
Ambient Temperature	-20 … +60 °C
Ingress Protection	IP20
Dimensions (W × H × D)	12.5 × 106 × 128 mm
Weight	≈ 100 g
Approvals	ATEX (BASEEFA 06 ATEX 0093 X), IECEx (BAS 06.0026X), FM, UL
Directive Compliance	2014/34/EU, 2014/30/EU, EN 61326-3-2 (industrial immunity)

Key Features

Bus-Powered via Termination Board: No separate 24 V DC wiring to each module — power and signal routed through the common termination board, simplifying panel layout.
Dual Relay Outputs (Signal Splitting): One field input drives two independently configurable relay outputs — enables signal duplication to two separate control systems (e.g., DCS + SIS) without extra components.
Reversible Mode & Configurable Second Output: DIP switches allow reversing the input logic (NO↔NC behavior) and repurposing output II as a fault indication instead of a second signal — highly flexible commissioning.
Line Fault Detection (LFD): Automatically detects sensor wire break or short to ground, forcing relays to de-energize and signaling fault per NAMUR NE 44 — critical for safety loops.
SIL 2 / SC 3 Capable: Suitable for safety instrumented functions up to SIL 2 when integrated with appropriate logic solvers.

Typical Applications

Oil & Gas / Petrochemical: NAMUR proximity switch and flame detector signals from Zone 1 to DCS/SIS.
Chemical Plant Hazardous Areas: Conductive level switch and solenoid valve limit switches in Zone 0/1.
Pharmaceutical & Biotech: Safety interlocks for agitators, valves, and cleanroom door switches.
Mining & Grain Handling: Dust ignition protection (Ex ia Da IIIC) for equipment in combustible dust zones.

The HiC2821 is the H-System module version — it mounts on a HiC termination board (e.g., HiCTB04, HiCTB08, HiCTB16). For the K-System DIN-rail version with identical electrical specs, see KCD2-SR-EX2.R or KFD2-SR-EX2.R (single/dual channel equivalents). The 0000 suffix is not a valid P+F ordering code for this device — HiC2821 is the complete type designation.
