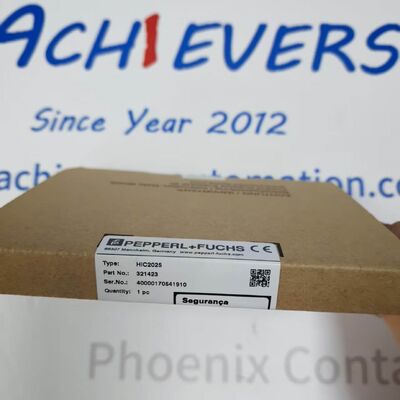

P+F HiC2025 | 1-CH Isolated Barrier for 2-Wire SMART Transmitter, 4-20mA/1-5V Out, SIL 2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power Supply: | 1 | Ambient Temperature: | - |
|---|---|---|---|
| Electrical Rating: | G | Certifications: | S |
| Highlight: | P+F HiC2025 isolated barrier,2-wire SMART transmitter barrier,SIL 2 safety barrier |
||
P+F HiC2025 | 1-CH Isolated Barrier for 2-Wire SMART Transmitter, 4-20mA/1-5V Out, SIL 2
P+F HiC2025 H-System SMART transmitter power supply — 1-channel isolated barrier, 24V DC bus powered, input for 2-wire 4-20mA SMART transmitters, output 4-20mA source/sink or 1-5V, SIL 2 (SC 3), Ex ia IIC. Mounts on HiC termination board.
Product Overview
The P+F HiC2025 is a 1-channel isolated barrier / SMART transmitter power supply belonging to the H-System family, designed for intrinsic safety applications in hazardous areas. It supplies power to 2-wire SMART transmitters and current sources located in Zone 0/1/2 and transfers the 4…20 mA analog signal to the non-hazardous control room as an isolated 4…20 mA current source/sink or 1…5 V voltage output. The module is 24 V DC bus powered through the HiC termination board, eliminating the need for a separate auxiliary power supply. Output mode is selectable via DIP switches (current source 4…20 mA / voltage source 1…5 V / current sink 4…20 mA). It supports bidirectional SMART communication (HART) through the isolation barrier. The device achieves SIL 2 (Systematic Capability SC 3) per IEC/EN 61508 and carries ATEX / IECEx Ex ia IIC certification for Zone 0/1/2, Zone 20/21/22, and M1 applications.
Technical Specifications (Electrical & Signal)
|
Parameter
|
Specification
|
|---|---|
|
Model
|
HiC2025 (P+F H-System SMART Transmitter Power Supply)
|
|
Signal Type
|
Analog Input — 2-wire SMART transmitter / current source
|
|
Supply Voltage (Ur)
|
19 … 30 V DC — bus powered via Termination Board (SL1)
|
|
Rated Current (Ir)
|
≤ 45 mA @ 24 V, 20 mA source mode output
|
|
Power Dissipation / Consumption
|
≤ 800 mW / ≤ 1.1 W
|
|
Input Signal
|
4 … 20 mA (limited to approx. 26 mA)
|
|
Input Voltage Drop
|
≈ 5 V (on SL2: 5a(+), 1b(-))
|
|
Available Voltage at Field Side
|
≥ 15 V @ 20 mA, ≥ 18 V @ 4 mA
|
|
Output Signal
|
Source mode: 4…20 mA or 1…5 V (internal shunt 250 Ω, 0.1 %)
Sink mode: 4…20 mA, operating voltage 10…30 V |
|
Output Load (Source Mode)
|
0 … 350 Ω
|
|
Transfer Deviation @ 20°C
|
< 0.1 % FS (4…20 mA), ≤ ± 0.2 % FS (1…5 V)
|
|
Frequency Response
|
0 … 3 kHz (-3 dB) — bidirectional (field↔control)
|
|
Rise / Fall Time
|
≤ 10 ms
|
|
Safety Integrity Level
|
SIL 2, Systematic Capability SC 3 per IEC/EN 61508
|
Technical Specifications (Mechanical, Isolation & Certification)
|
Parameter
|
Specification
|
|---|---|
|
Galvanic Isolation
|
Input/Output: safe electrical isolation per IEC/EN 60079-11, peak voltage 375 V
Input/Supply: safe electrical isolation, peak voltage 375 V Output/Supply: basic insulation per IEC/EN 61010-1, 60 V eff rated |
|
Hazardous Area Marking (Input)
|
[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I — allows transmitters in Zone 0/1/2, 20/21/22, M1
|
|
Maximum Safe Voltage (Um)
|
250 V AC (non-energized, safety parameter only)
|
|
Ex ia Parameters (SL2: 5a+/5b-)
|
Uo = 25.2 V, Io = 100 mA, Po = 630 mW, Ci = 5.7 nF, Li ≈ 0
|
|
Ex ia Parameters (SL2: 5a+/1b-)
|
Uo = 7.2 V, Io = 100 mA, Po = 25 mW, Ci = 5.7 nF, Li ≈ 0
|
|
Non-Hazardous Side Marking
|
II 3G Ex ec IIC T4 Gc
|
|
Configuration
|
Via DIP Switches (S1–S4) on front panel — output mode select
|
|
Indicator
|
1 × green LED (power supply status)
|
|
Mounting
|
On HiC Termination Board (coding pins 1 and 3 trimmed for polarization)
|
|
Dimensions (W × H × D)
|
12.5 × 106 × 128 mm
|
|
Weight
|
≈ 100 g
|
|
Degree of Protection
|
IP20
|
|
Ambient Temperature
|
-40 … +70 °C
|
|
Approvals
|
ATEX (CESI 19 ATEX 027 X), IECEx (IECEx CES 06.0002X), cFMus FM, cULus (E106378), CCC
|
|
EMC Compliance
|
EN 61326-1:2013, NE 21:2017, EN 61326-3-2:2018
|
Key Features
-
SMART / HART Pass-Through: Bidirectional communication (0…3 kHz bandwidth) allows HART handheld or asset management system to communicate with the field transmitter through the barrier without additional coupling — full SMART diagnostics preserved.
-
Selectable Output Mode (DIP Switch): Configure as 4…20 mA current source (default), 1…5 V voltage source, or 4…20 mA current sink — adapts to DCS/PLC analog input card requirements without hardware change.
-
Bus-Powered via Termination Board: No separate 24 V DC wiring to each module — power and signal routed through the common HiC termination board, simplifying panel layout and reducing wiring.
-
Up to SIL 2 / SC 3 Capable: Suitable for safety-relevant analog loops (e.g., SIL-rated pressure/temperature trip) when integrated with appropriate logic solver.
-
Zone 0 Capable Input: Ex ia Ga IIC certification permits connection to intrinsically safe transmitters installed in the most hazardous (Zone 0) locations.
Typical Applications
-
Oil & Gas / Petrochemical: Powering and isolating 2-wire 4…20 mA SMART pressure, temperature, level, and flow transmitters in Zone 1/2 process areas — signal transferred to DCS/SIS in the safe area.
-
Chemical & Pharmaceutical Plants: Hazardous-area transmitter loops requiring HART asset management through the barrier — enables predictive maintenance without compromising intrinsic safety.
-
SIL 2 Safety Loops: Analog input conditioning for Safety Instrumented Functions (e.g., high-pressure trip) where SIL 2 is required per IEC 61511.
-
Offshore / Marine: Compact H-System barrier on termination board for efficient use of cabinet space — low power dissipation (≤ 800 mW) minimizes heat load in enclosed panels.
