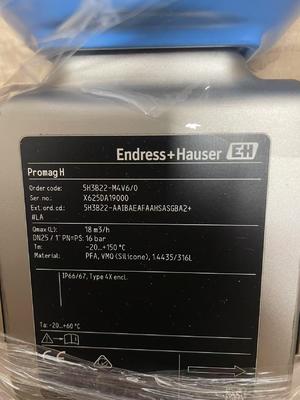

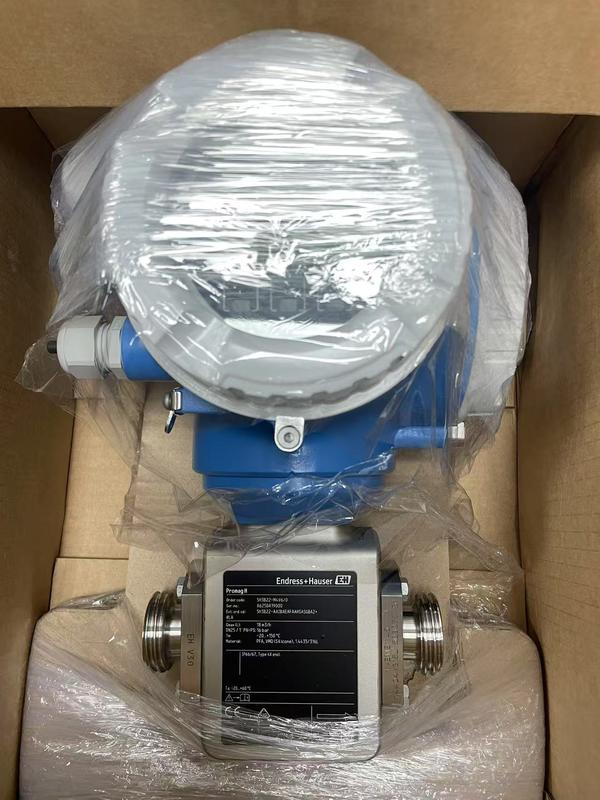

5H3B22-M4V60 Proline Promag H 300 Electromagnetic Flowmeter E+H

I. Core Technical Specifications: Accuracy & Stability Combined
 1. Measurement Accuracy & Range
- **Maximum Measurement Error**:
  Standard volume flow: ±0.5% of reading (or ±1 mm/s / 0.04 in/s);
  Optional volume flow: ±0.2% of reading (or ±2 mm/s / 0.08 in/s)—guaranteeing precise measurement for the **5H3B22-M4V6/0** across both low and high flow scenarios.
- **Measuring Range**: 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min), covering flow needs from laboratory-scale testing to industrial mass production.

 2. Environmental & Pressure Compatibility
- **Medium Temperature Range**: –20 to +150 °C (–4 to +302 °F), withstanding high-temperature sterilization and low-temperature storage.
- **Maximum Process Pressure**: PN 40, Class 150, 20K—suitable for pressure requirements of most hygienic pipelines.

 3. Wetted Materials: Hygiene & Corrosion Resistance
The **5H3B22-M4V6/0** uses industry-compliant wetted components to ensure hygiene and durability:
- Liner: PFA (chemical-resistant, easy to clean);
- Electrodes: 1.4435 (316L), Alloy C22 (2.4602/UNS N06022), Tantalum, Platinum (compatible with different corrosive media);
- Process Connections: Stainless steel 1.4404 (F316L), PVDF, PVC adhesive sleeve (adapting to diverse pipeline setups);
- Seals: O-ring seals (EPDM, FKM, Kalrez), aseptic molded seals (EPDM, FKM, Silicone)—supporting CIP/SIP cleaning;
- Grounding Rings: Stainless steel 1.4435 (316L), Alloy C22, Tantalum—ensuring measurement stability.

 II. Key Features of Promag H 5H3B22-M4V6/0
1. **Hygienic Design**: Sensor housing made of stainless steel, compliant with 3A and EHEDG hygiene certifications. Wetted materials resist CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes, with no hygiene dead zones.
2. **Compact Dual-Compartment Housing**: IP69 protection rating, supporting up to 3 I/O ports—ideal for wet, high-pressure washdown industrial environments.
3. **Smart Operation**: Backlit touchscreen display with WLAN access; optional remote display. All operations can be completed from one side, enhancing installation flexibility.
4. **Bidirectional Measuring Principle**: Results are independent of pressure, density, temperature, and viscosity—suitable for multi-component or high-viscosity media (e.g., syrups, ointments).

III. Product Benefits: Cost Efficiency & Performance
1. **Flexible Installation**: Multiple hygienic process connection options adapt to different pipeline layouts, reducing installation and modification costs.
2. **Energy-Saving (No Pressure Loss)**: No cross-section constriction design eliminates media pressure loss, lowering pump energy consumption.
3. **Maintenance-Free**: No moving parts minimize failure risks and maintenance costs, extending equipment lifespan.
4. **Full Data Visibility**: Supports multiple I/O and Ethernet connections for real-time access to flow data and diagnostics—facilitating system integration.
5. **Compliance Assurance**: Integrated Heartbeat Technology continuously verifies performance, meeting industry standards (e.g., FDA, GMP).
6. **Simplified Sizing**: Configurable I/O functions reduce model variety, cutting inventory and management complexity.

 IV. Applications
The **Promag H 5H3B22-M4V6/0** is engineered for high-hygiene scenarios, including:
- Food & Beverage: Flow measurement and process control for dairy, fruit juices, sauces, beer, etc.
- Life Sciences: Aseptic media transfer measurement in pharmaceuticals, biopharmaceuticals, and medical device manufacturing.
