Endress+Hauser Prowirl F 200 Vortex Flowmeter E&H Instruments
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Industrial And Laboratory Use | Display: | Digital Or Analog |
|---|---|---|---|
| Type: | Measurement Instruments | Power Supply: | Battery Or AC Power |
| Interface: | USB, RS232, Ethernet, Etc. | Warranty: | 1 Year Limited Warranty |
| Highlight: | Industrial endress hauser prowirl f 200,Laboratory endress hauser prowirl f 200,endress hauser prowirl 200 |
||

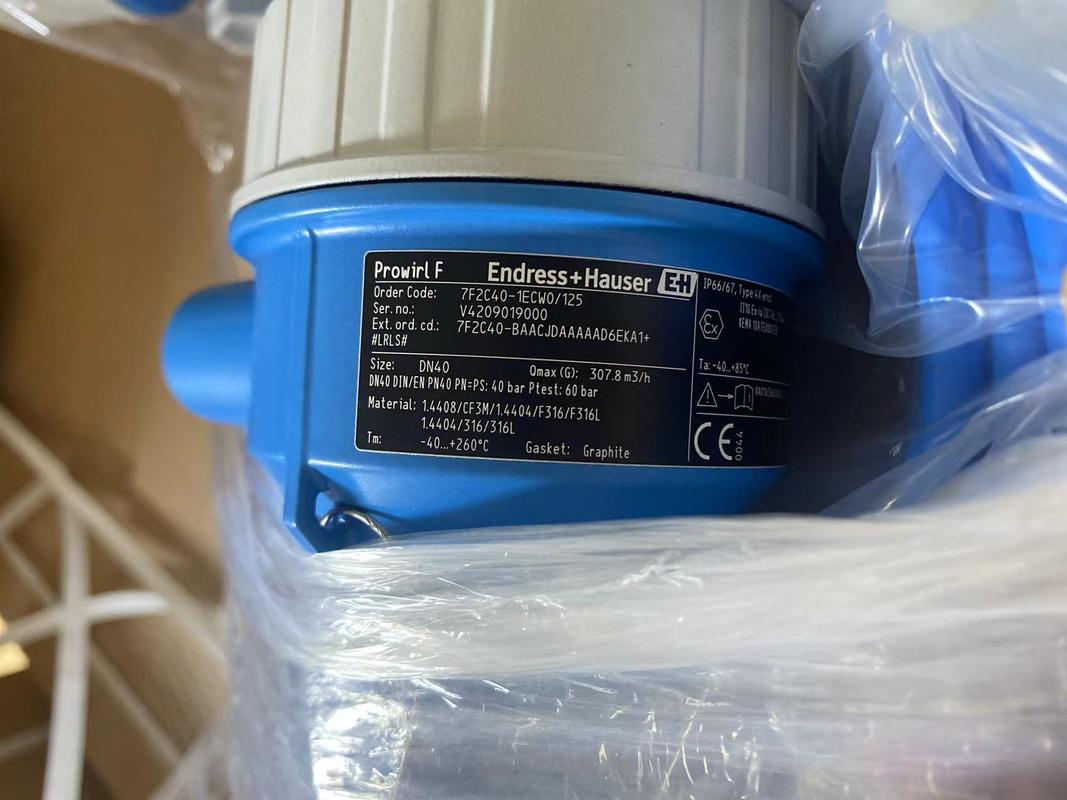

E&H (Endress+Hauser) Proline Prowirl F 200 vortex flowmeter
Product Description
The Founded in 1953, Endress+Hauser (E+H) is a Swiss-Swedish multinational specializing in industrial measurement/automation solutions.
Its core offerings cover flow, level, pressure, temperature, and analytics—with products like the Promag H series (e.g., 5H3B22-M4V6/0) meeting strict demands of food & beverage, life sciences, and other sectors, ensuring efficiency and compliance.
Present in 100+ countries with 15,000+ employees, E+H blends global R&D (focused on digitalization/sustainability) with local expertise. It also provides end-to-end services, solidifying its role as a trusted partner for operational reliability.
The E+H (Endress+Hauser) Prowirl F 200 is a high-precision vortex flowmeter designed for steam, gas, and liquid applications. With wet steam measurement capabilities, PremiumCal calibration, and Heartbeat Technology, it ensures maximum accuracy, process safety, and long-term stability.
Thanks to its loop-powered design and global SIL/hazardous area approvals, the Prowirl F 200 is the preferred choice for reliable steam energy management, gas monitoring, and liquid flow measurement.
Technical Specifications
Accuracy
| Measurement Type | Accuracy |
|---|---|
| Liquid volume flow | ±0.75 % (optional ±0.65 %) |
| Gas/steam volume flow | ±1.00 % |
| Mass flow (saturated steam) | ±1.7 % (temperature compensated); ±1.5 % (temperature/pressure compensated) |
| Mass flow (superheated steam/gas) | ±1.5 % (temperature/pressure compensated); ±1.7 % (temperature + external pressure compensation) |
| Mass flow (liquid) | ±0.85 % |
Measuring Range
| Medium | Range | Conditions (reference) |
|---|---|---|
| Liquids | 0.2 to 2100 m³/h (0.15 to 1520 ft³/min) | Water, 1 bar a, 20 °C (14.5 psi a, 68 °F) |
| Steam & gases | 1.5 to 28000 m³/h (0.9 to 16600 ft³/min) | Steam 180 °C, 10 bar a (356 °F, 145 psi a); Air 25 °C, 4.4 bar a (77 °F, 63.8 psi a) |
Process Conditions
| Parameter | Specification |
|---|---|
| Medium temperature | Standard: –40 to +260 °C (–40 to +500 °F)Option: –200 to +400 °C (–328 to +752 °F) |
| Max. process pressure | PN 100, Class 600, 20K |
| Wetted materials | 1.4408 (CF3M); CX2MW ~ Alloy C22 (2.4602) |
Key Features & Benefits
-
Optimized for steam: wet, saturated, and superheated steam measurement
-
High safety: SIL certified, hazardous area approvals worldwide
-
Energy management: integrated temperature & pressure measurement
-
Stable & reliable: capacitive sensor, drift-free long-term operation
-
Smart maintenance: Heartbeat Technology for online diagnostics & verification
-
Flexible installation: modular pressure cell, industrial siphon design
-
Easy integration: loop-powered device with Ethernet communication options
Applications
-
Steam measurement: boiler efficiency, steam distribution, energy management
-
Gas measurement: compressed air, natural gas, process gases
-
Liquid measurement: cooling water, process liquids, cryogenic media
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
