Rosemount 396 Submersion Insertion PH Sensor PH Measurement For Harsh Applications
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Highlight: | Insertion rosemount 396,Harsh Applications rosemount 396,Submersion rosemount ph |
||
|---|---|---|---|
Rosemount 396 Submersion/Insertion pH Sensor | Reliable pH Measurement for Harsh Applications
Product Description
Rosemount Inc., a renowned subsidiary of Emerson Electric Co., is a global leader in precision industrial measurement and automation instrumentation. Founded in 1956 and acquired by Emerson in 1976, it is headquartered in Shakopee, Minnesota, USA. The company specializes in designing and manufacturing highly reliable sensors and transmitters for measuring pressure, temperature, level, and flow, with its iconic 3051 Pressure Transmitter series being an industry benchmark. Its products are critical to operations in oil & gas, power, chemical, and other process industries worldwide, serving over 100 countries. Renowned for innovation, quality, and a strong customer focus, Rosemount provides essential solutions for process optimization, safety, and efficiency.
Product Overview

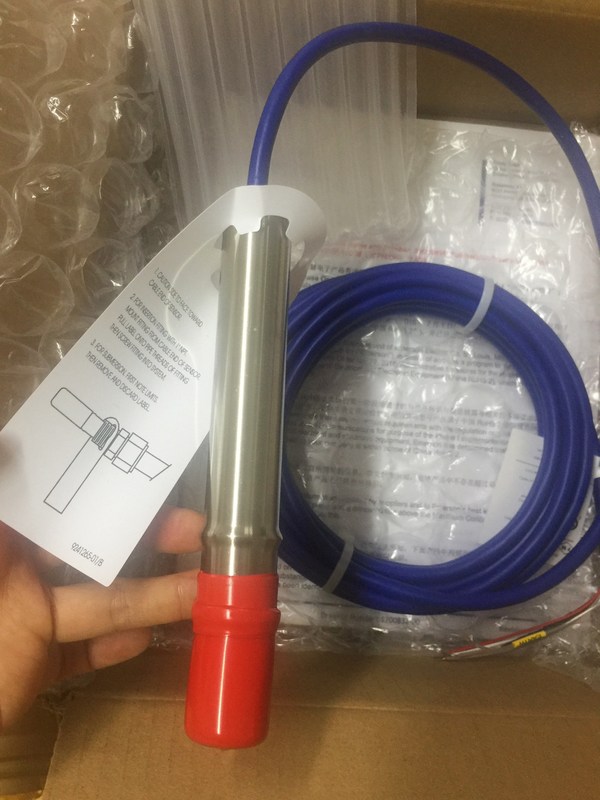

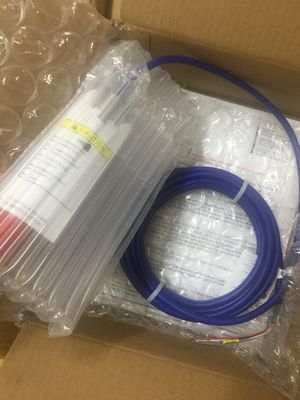

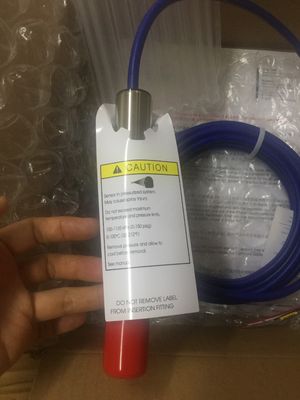

The Rosemount 396 Submersion/Insertion pH Sensor is engineered for demanding pH measurement applications where harsh, dirty, and abrasive conditions with suspended solids are present. This robust sensor features integral cable construction and advanced reference technology, making it ideal for challenging industrial environments where reliable pH monitoring is critical.
Key Features
-
Robust Sensor Design - Built to withstand harsh, abrasive applications with suspended solids
-
SMART Sensor Technology - Eliminates field calibration requirements
-
Helical Reference Pathway - Reduces reference poisoning and extends sensor life
-
ACCUGLASS® pH Glass - Special formulation minimizes glass cracking for enhanced performance
-
Advanced Diagnostics - Provides comprehensive pH and reference signal diagnostics when used with Rosemount transmitters
-
Integral Cable - 15 ft coaxial with BNC connection for reliable signal transmission
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Sensor Type |
Submersion/Insertion pH Sensor |
|
Connection |
Integral cable, 15 ft coaxial with BNC |
|
Weight |
0.45 kg/0.9 kg (1 lb/2 lb) |
|
Ambient Temperature |
0-100 °C (32-212 °F) |
|
Maximum Pressure |
150 psig (1135 kPa [abs]) at 100 °C (212 °F) |
|
pH Range |
Standard pH measurement ranges |
|
Construction |
Robust design for harsh environments |
|
Reference Technology |
Advanced reference system resistant to poisoning |
Applications
The Rosemount 396 pH Sensor is ideal for:
-
Wastewater Treatment - pH monitoring in clarifiers, aeration basins, and effluent streams
-
Chemical Processing - Aggressive chemical applications with suspended solids
-
Mining Operations - Abrasive slurry applications and leaching processes
-
Pulp & Paper - pH measurement in pulping and bleaching operations
-
Food & Beverage - Tough processing environments with cleaning cycles
-
Industrial Waste - Monitoring of industrial effluent and waste streams
Advanced Technology
-
SMART Enabled - Factory calibrated, eliminating need for field calibration
-
Helical Reference Design - Creates longer pathway to hinder reference junction poisoning
-
ACCUGLASS® Formulation - Special glass composition reduces cracking and extends service life
-
Coating Resistance - Maintains stable pH signal even when sensor is coated with process material
-
Diagnostic Capabilities - Advanced sensor diagnostics available with Rosemount transmitters
Compatibility
-
Transmitter Compatibility - Works seamlessly with Rosemount pH/ORP transmitters
-
Process Connections - Various mounting options available for submersion and insertion applications
-
Industry Standards - Designed to meet industrial requirements for harsh environments
Why Choose Rosemount 396?
-
Extended Sensor Life - Robust construction and advanced technology reduce replacement frequency
-
Reduced Maintenance - SMART technology and coating resistance minimize maintenance needs
-
Reliable Performance - Consistent pH measurement in challenging applications
-
Diagnostic Capabilities - Advanced monitoring for both pH and reference signals
-
Global Support - Backed by Emerson's worldwide service and support network
Installation & Maintenance
-
Easy Installation - Integral cable design simplifies setup
-
Minimal Calibration - SMART technology reduces calibration requirements
-
Easy Cleaning - Designed for easy maintenance in fouling applications
-
Long Service Intervals - Extended operational life reduces maintenance frequency
