AAI143-H00 Analog Input Module High Performance Industrial I/O Module Yokogawa
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Voltage: | 12 ... 30 V DC | Switching Current: | Max. 150 MA Per Output |
|---|---|---|---|
| Repeat Accuracy: | ± 9 Mm | Synchronization: | Yes (up To 10 Sensors) |
| Temperature Drift: | ≤ ± 1.5 % Of Full-scale Value | Programming Interface: | Infrared (via ULTRA-PROG-IR Software) |
| Highlight: | AAI143-H00 analog input module,Yokogawa analog input module,16 channels Yokogawa Instruments |
||

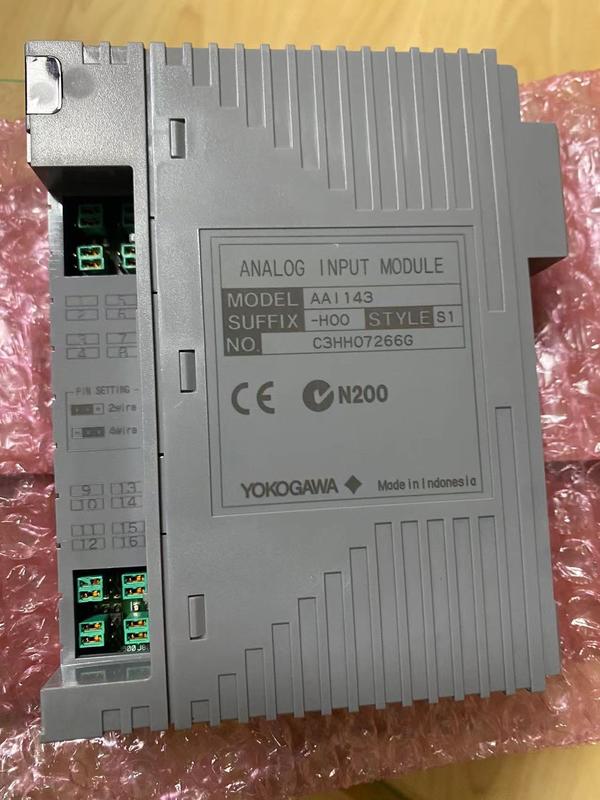

Yokogawa AAI143-H00 Analog Input Module | High-Performance Industrial I/O Module
Product Description
Yokogawa Electric Corporation is a globally renowned Japanese industrial automation and control company, founded in 1915 and headquartered in Tokyo. It specializes in measurement, control, and information technologies, providing high-precision instruments and solutions for industries such as oil and gas, chemicals, power, pharmaceuticals, and water treatment. Yokogawa pioneered the world’s first distributed control system (DCS), CENTUM, in 1975, which revolutionized process automation in large-scale industrial facilities. The company’s product portfolio includes pressure transmitters, flow meters, analyzers, recorders, and advanced IoT-enabled systems for digital transformation. With a presence in over 60 countries and a workforce of approximately 17,000 employees, Yokogawa combines technological innovation with a commitment to sustainability, helping customers achieve operational efficiency, safety, and environmental goals.
Product Overview
The Yokogawa AAI143-H00 is a premium 16-channel analog input module designed for Yokogawa's FIO (Fieldbus Input Output) system. This high-performance module provides reliable signal acquisition for industrial process control applications, featuring HART protocol support and robust construction for demanding environments.
Key Features
-
16-Channel Input - Simultaneous processing of multiple analog signals
-
HART Protocol Support - Enables two-way communication with intelligent field devices
-
High Accuracy - Precision measurement for critical process control
-
Isolated Inputs - Channel-to-channel and channel-to-system isolation
-
Dual-Redundant Capability - Supports redundant configuration for critical applications
-
Wide Signal Compatibility - Handles various analog input types
-
Hot Swappable - Allows replacement without system shutdown
-
Self-Diagnostics - Built-in diagnostic functions for maintenance
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
AAI143-H00 |
|
Module Type |
Analog Input |
|
Number of Channels |
16 channels |
|
Input Signals |
4-20mA, voltage, and HART-enabled signals |
|
HART Support |
Yes (Highway Addressable Remote Transducer) |
|
Isolation |
Channel-to-channel and channel-to-system |
|
Accuracy |
High precision (typical ±0.1% of span) |
|
Response Time |
Fast response for real-time control |
|
Operating Temperature |
Industrial range (typically -20°C to 70°C) |
|
Power Supply |
24V DC (typical for Yokogawa systems) |
|
Communication |
Yokogawa FIO fieldbus protocol |
|
Redundancy |
Dual-redundant configuration support |
|
Certifications |
CE, ISO standards compliance |
Applications
The Yokogawa AAI143-H00 is ideal for:
-
Process Industries - Oil & gas, chemical, and petrochemical plants
-
Power Generation - Boiler control and turbine monitoring systems
-
Water Treatment - Filtration and purification process control
-
Pharmaceutical - Batch process monitoring and control
-
Manufacturing - Industrial automation and process control
-
HVAC Systems - Building automation and control systems
System Integration
-
Yokogawa FIO Compatibility - Designed for seamless integration with Yokogawa fieldbus systems
-
Control System Integration - Works with Yokogawa CENTUM series DCS
-
Field Device Connectivity - Compatible with various sensors and transmitters
-
Engineering Tools - Configurable with Yokogawa system configuration tools
Advanced Functionality
-
HART Communication - Digital communication superimposed on 4-20mA signals
-
Signal Conditioning - Built-in filtering and signal processing
-
Range Switching - Software-configurable input ranges
-
Fault Detection - Open circuit and signal loss detection
-
Calibration Features - Software-assisted calibration capabilities
Design & Construction
-
Robust Housing - Industrial-grade enclosure for harsh environments
-
Terminal Connections - Secure pressure clamp terminals for reliable wiring
-
Modular Design - Standard form factor for Yokogawa systems
-
Quality Components - High-reliability components for long service life
Why Choose Yokogawa AAI143-H00?
-
Proven Reliability - Yokogawa's reputation for industrial-grade quality
-
Multi-Channel Efficiency - 16 channels reduce system footprint and cost
-
HART Capability - Future-proof with smart device communication
-
System Integration - Seamless compatibility with Yokogawa control systems
-
Maintenance Friendly - Hot-swappable and self-diagnostic features
-
Global Support - Backed by Yokogawa's worldwide service network
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
