EJA210E Flange Mounted Differential Pressure Transmitter Yokogawa Level Measurement
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Voltage: | 12 ... 30 V DC | Switching Current: | Max. 150 MA Per Output |
|---|---|---|---|
| Repeat Accuracy: | ± 9 Mm | Synchronization: | Yes (up To 10 Sensors) |
| Temperature Drift: | ≤ ± 1.5 % Of Full-scale Value | Programming Interface: | Infrared (via ULTRA-PROG-IR Software) |
| Highlight: | EJA210E differential pressure transmitter,Flange Mounted differential pressure transmitter,20mA dp transmitter |
||

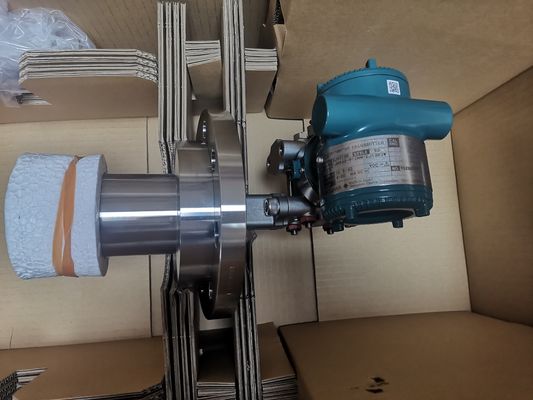

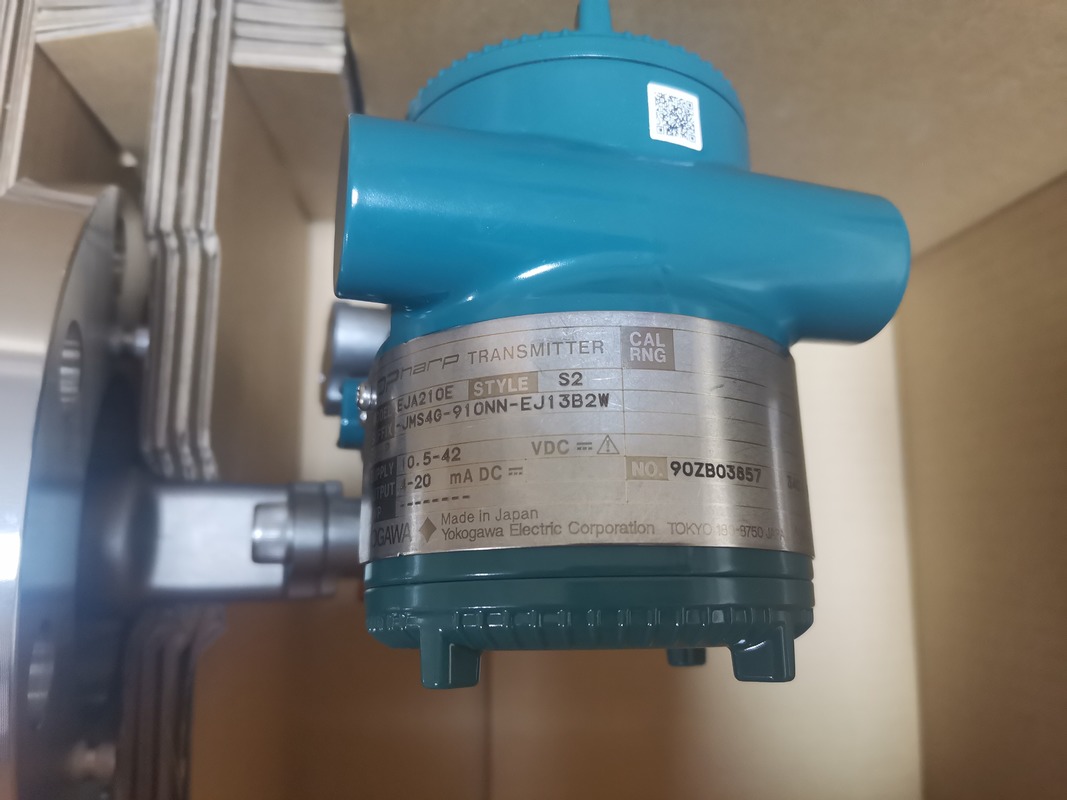

Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter | High-Performance Level Measurement
Product Description
Yokogawa Electric Corporation is a globally renowned Japanese industrial automation and control company, founded in 1915 and headquartered in Tokyo. It specializes in measurement, control, and information technologies, providing high-precision instruments and solutions for industries such as oil and gas, chemicals, power, pharmaceuticals, and water treatment. Yokogawa pioneered the world’s first distributed control system (DCS), CENTUM, in 1975, which revolutionized process automation in large-scale industrial facilities. The company’s product portfolio includes pressure transmitters, flow meters, analyzers, recorders, and advanced IoT-enabled systems for digital transformation. With a presence in over 60 countries and a workforce of approximately 17,000 employees, Yokogawa combines technological innovation with a commitment to sustainability, helping customers achieve operational efficiency, safety, and environmental goals.
Product Overview
Yokogawa EJA210E is a flange-mounted differential pressure transmitter designed for precise liquid level measurement in demanding industrial applications. Part of Yokogawa's EJA-E series and OpreX Field Instruments family, this transmitter combines advanced DPharp digital sensor technology with robust construction for reliable performance in critical process control applications.
Key Features
-
DPharp Digital Sensor - Advanced resonant technology for superior accuracy and stability
-
Flange Mount Design - Ideal for direct tank and vessel level measurement
-
High Accuracy - ±0.075% reference accuracy for precise measurement
-
Fast Response - 120ms response time for real-time process control
-
SIL 2/3 Certified - Functional safety certification for critical applications
-
Local Parameter Setting (LPS) - On-device configuration without external tools
-
Dynamic Compensation - Real-time temperature and static pressure compensation
-
Robust Construction - Industrial-grade materials for harsh environments
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Series |
EJA-E Series |
|
Measurement Type |
Differential Pressure (Liquid Level) |
|
Accuracy |
±0.075% of span |
|
Stability |
±0.1% per 12 months |
|
Response Time |
120ms (primary variable) |
|
Rangeability |
100:1 |
|
Output Signals |
4-20mA HART/BRAIN, FOUNDATION Fieldbus, PROFIBUS PA |
|
Pressure Ranges |
Multiple capsule ranges from 4 inH₂O to 2000 inH₂O |
|
Process Connections |
1½" to 6" flange options (ANSI, JIS, DIN, JPI standards) |
|
Operating Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Protection Rating |
IP66/67 (NEMA 4X) |
|
Materials |
316L stainless steel, Hastelloy, other alloys available |
|
Certifications |
SIL 2/3, ATEX, IECEx, CSA, NEPSI, UKEX |
Applications
The Yokogawa EJA210E is ideal for:
-
Chemical Processing - Reactor and vessel level monitoring
-
Oil & Gas - Tank farm inventory management
-
Power Generation - Boiler drum level measurement
-
Water Treatment - Reservoir and clarifier level control
-
Pharmaceutical - Bioreactor and mixing vessel monitoring
-
Food & Beverage - Storage tank level measurement
-
Marine - Shipboard tank level systems
Advanced Technology
DPharp Digital Sensor
-
Active Sensor Technology - Continuous signal generation for real-time diagnostics
-
Multi-parameter Measurement - Simultaneous differential pressure, static pressure, and temperature measurement
-
Dynamic Compensation - Automatic compensation for temperature and static pressure effects
-
Long-term Stability - Minimal drift for extended calibration intervals
Smart Features
-
Signal Characterization - 10-point linearization for non-linear applications (tank strapping, flow)
-
Local Display - Multi-variable display with bar graph and diagnostic messages
-
Self-Diagnostics - 40+ diagnostic checks with patented back-check technology
-
Multiple Protocols - Support for HART, BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA
Design & Construction
-
Four-Bolt Design - Secure pressure retention system
-
Dual Seal System - ANSI/ISA 12.27.01 certified sealing
-
Over-pressure Protection - Mechanical protection system within sensor capsule
-
Flange Options - Flush and extended diaphragm designs
-
Material Options - Various diaphragm and flange materials for corrosive services
-
Flushing Ring Compatibility - Optional cleaning ports for maintenance
Performance Benefits
Accuracy & Reliability
-
Superior Accuracy - Twice the performance of analog sensors
-
Environmental Compensation - Maintains accuracy across temperature and pressure variations
-
Stable Operation - Consistent performance reducing recalibration needs
Maintenance & Diagnostics
-
Extended Calibration Intervals - Reduced maintenance requirements
-
Easy Troubleshooting - Clear error codes and diagnostic information
-
Remote Monitoring - Multiple variable transmission for comprehensive process insight
Communication & Integration
-
Protocol Options:
-
HART 5/7
-
BRAIN
-
FOUNDATION Fieldbus
-
PROFIBUS PA
-
-
Local Interface - LPS capability for field configuration
-
Remote Indicators - Optional remote display options
-
System Integration - Compatible with Yokogawa and third-party control systems
Certifications & Compliance
-
Functional Safety - IEC 61508/61511 SIL 2/3 certified
-
Explosion Protection - ATEX, IECEx, CSA approvals
-
Marine Certification - Marine application approval
-
Environmental - NACE MR0175/MR0103 compliance options
-
Quality Standards - Manufactured under ISO quality systems
Why Choose Yokogawa EJA210E?
-
Proven Technology - DPharp sensor with decades of field performance
-
Measurement Confidence - High accuracy and stability for critical applications
-
Safety Compliance - SIL certification for safety instrumented systems
-
Reduced Maintenance - Long-term stability and self-diagnostic capabilities
-
Global Support - Yokogawa's worldwide service network
-
Future-Proof - Multiple communication protocols and upgrade options
