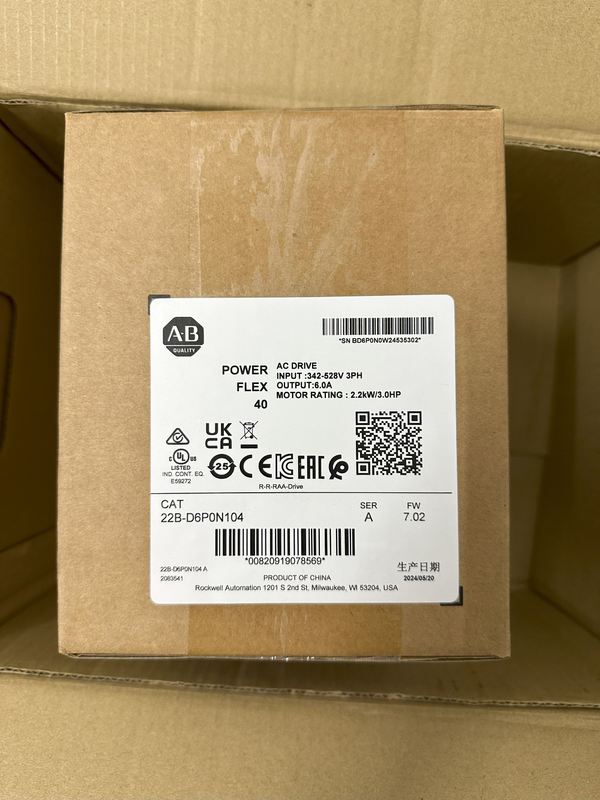

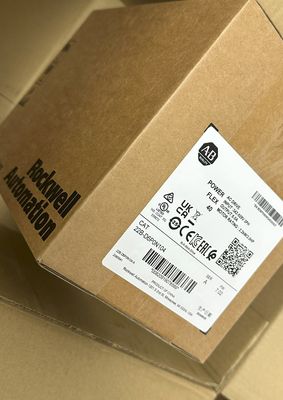

Allen Bradley 22B-D6P0N104 PowerFlex 40 AC Drive Industrial Motor Control Solution
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Operating Voltage: | 12 ... 30 V DC | Type: | Barcode Scanner,barcode Scan Engine |
|---|---|---|---|
| Scan Element Type: | CMOS,CCD,Laser,Reads Standard 1D And GS1 DataBar Symbologies.,CIS | ||
| Highlight: | 380v allen bradley 22b d6p0n104,480V allen bradley 22b d6p0n104,6A 22bd6p0n104 |
||
22B-D6P0N104 PowerFlex 40 AC Drive | Industrial Motor Control Solution
Allen-Bradley
Allen-Bradley, a flagship brand of Rockwell Automation, was founded in 1903 and is headquartered in Milwaukee, USA. Specializing in industrial automation products, its renowned offerings include programmable logic controllers (PLCs), variable frequency drives, servo systems, and industrial control components. The CompactLogix and ControlLogix series have become industry standards. Widely applied in automotive, metallurgy, energy, and other sectors, the brand excels in automatic control and smart manufacturing, recognized globally for its high reliability and continuous technological innovation.
Product Overview
The Allen-Bradley 22B-D6P0N104 PowerFlex 40 is a versatile AC drive designed for precise motor speed control in industrial applications. Part of Rockwell Automation's PowerFlex 40 series, this variable frequency drive offers reliable performance for three-phase AC motors, providing energy efficiency and advanced control capabilities for various automation systems.
Key Features
-
Sensorless Vector Control - Provides high torque at low speeds without encoder feedback
-
Compact Design - Space-efficient form factor for easy panel mounting
-
Multiple Control Modes - V/Hz and sensorless vector control options
-
Built-in RS485 Communication - Modbus RTU protocol for network connectivity
-
Integrated Safety Features - STO (Safe Torque Off) functionality
-
User-Friendly Interface - Simple programming and setup
-
Robust Construction - Designed for industrial environments
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
22B-D6P0N104 |
|
Series |
PowerFlex 40 |
|
Input Voltage |
380-480V AC, 3-phase |
|
Output Current |
6.0A |
|
Output Power |
2.2kW (3.0HP) |
|
Control Methods |
V/Hz and sensorless vector control |
|
Communication |
RS485 with Modbus RTU protocol |
|
Protection Rating |
IP20 (optional IP66 with accessory) |
|
Operating Temperature |
0°C to +55°C (40°C with zero gap installation) |
|
Safety Certification |
ISO 13849-1 PLd/SIL 2 |
|
Dimensions |
240×420×90mm |
Electrical Characteristics
Power Specifications
-
Input Voltage Range | 380-480V AC ±10%
-
Input Frequency | 47-63Hz
-
Output Frequency Range | 0-400Hz
-
Overload Capacity | 150% for 60 seconds, 200% for 30 seconds
Control Features
-
Control Accuracy | ±0.5% of base speed (vector control)
-
Speed Range | 1000:1 (vector control)
-
Torque Response | <10ms typical
-
Starting Torque | 200% at 0.5Hz (vector control)
Applications
The Allen-Bradley 22B-D6P0N104 is ideal for:
-
Machine Tools - Speed control for machining equipment
-
Material Handling - Conveyor and transport system control
-
Pump Systems - Flow and pressure control applications
-
Fan Applications - HVAC and ventilation system control
-
Industrial Automation - General purpose motor control
-
Packaging Machinery - Production line speed regulation
Advanced Functionality
Control Capabilities
-
Sensorless Vector Control - Precise speed regulation without encoder
-
V/Hz Control - Standard voltage/frequency control mode
-
PID Control - Built-in process PID controller
-
Multiple Preset Speeds - Up to 8 preset speed configurations
Communication Features
-
RS485 Interface - Built-in Modbus RTU communication
-
Network Compatibility - Supports industrial network protocols
-
Remote Monitoring - Data access and control via network
Safety Features
-
Safe Torque Off (STO) - Safety function compliant with ISO 13849-1 PLd
-
Overload Protection - Electronic motor overload protection
-
Fault Diagnostics - Comprehensive fault detection and reporting
Installation & Operation
Mounting Options
-
Panel Mounting - Standard DIN rail or panel mounting
-
Enclosure Options | IP20 standard (IP66 with optional kit)
-
Orientation | Any mounting position supported
Electrical Connections
-
Power Terminals | Screw terminal connections
-
Control Wiring | Standard industrial terminal blocks
-
Grounding | Separate ground terminal for safety
Configuration
-
Programming Interface | Integrated keypad with LCD display
-
Software Tools | Connected Components Workbench
-
Parameter Storage | Non-volatile memory for settings
Certifications & Compliance
-
Safety Standards:
-
ISO 13849-1 PLd
-
SIL 2 (IEC 61508)
-
UL Listed
-
cUL Listed
-
CE Marked
-
-
Quality Standards:
-
ISO 9001 manufacturing
-
RoHS compliant
-
-
Environmental Ratings:
-
IP20 protection (standard)
-
Optional IP66 protection available
-
Why Choose Allen-Bradley 22B-D6P0N104?
-
Reliable Performance - Rockwell Automation quality and durability
-
Precision Control - Accurate speed regulation for demanding applications
-
Energy Efficient - Optimized motor control reduces energy consumption
-
Easy Integration - Standard communication protocols and mounting
-
Global Support - Worldwide technical support network
-
Proven Technology - Established performance in industrial applications
Maintenance & Service
-
Diagnostic Capabilities | Comprehensive fault monitoring and logging
-
Preventive Maintenance | Condition monitoring alerts
-
Firmware Updates | Field upgradeable firmware
-
Technical Support | Global support network with comprehensive documentation
Note: Specifications are based on standard configurations. Actual performance may vary based on specific application conditions and motor characteristics. Consult Allen-Bradley technical documentation for detailed application guidelines.
