Product Overview

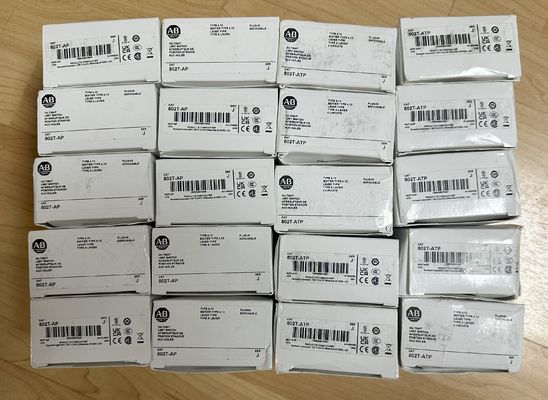

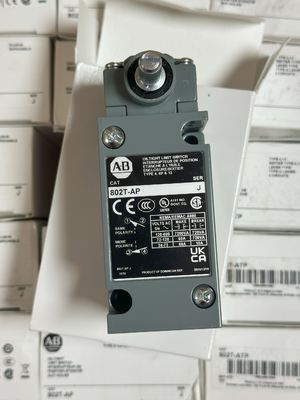

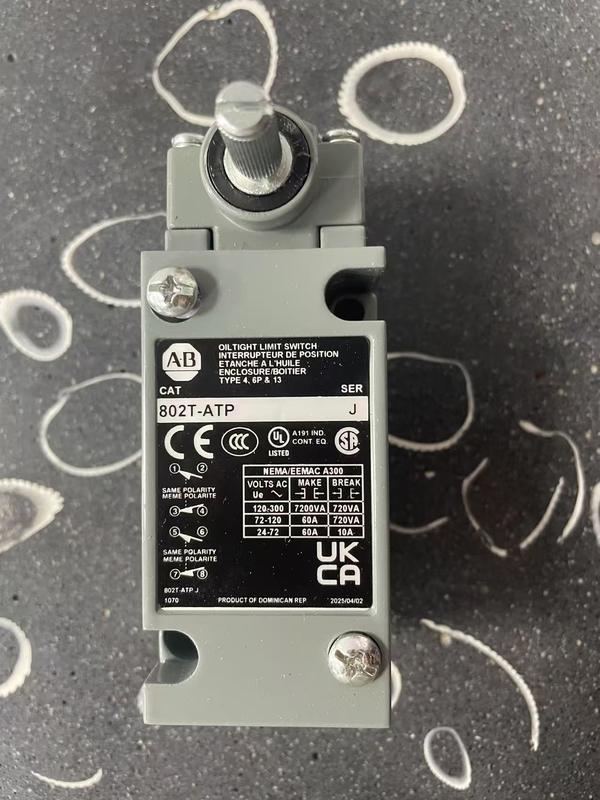

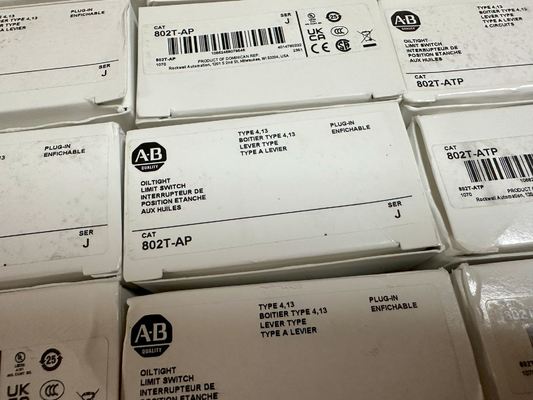

 ​Allen-Bradley 802T-AP​ is a heavy-duty, metal plug-in oiltight limit switch designed for reliable position detection and machine control in demanding industrial environments. Part of Rockwell Automation's 802T series, this robust switch provides precise mechanical actuation for applications requiring durable and dependable operation in harsh conditions including exposure to oil, dust, and moisture.

Key Features

• ​Heavy-Duty Construction​ - Metal housing designed for industrial durability and longevity

• ​Plug-In Design​ - Easy installation and maintenance with quick-disconnect capability

• ​Oiltight Protection​ - Sealed design prevents ingress of oil, dust, and moisture

• ​Multiple Actuator Options​ - Versatile actuation configurations for various applications

• ​High Reliability​ - Designed for long service life in demanding industrial environments

• ​Visual Indication​ - Optional pilot light available for status monitoring

• ​Flexible Mounting​ - Multiple mounting options for easy integration

Technical Specifications

Design & Construction

Housing & Protection

• ​Enclosure Material​ - Die-cast zinc metal construction

• ​Sealing Standard​ - IP67 rated for complete dust protection and water immersion resistance

• ​Environmental Protection​ - Oiltight design prevents fluid ingress

• ​Durability​ - Designed to withstand mechanical shock, vibration, and harsh industrial conditions

Actuation Options

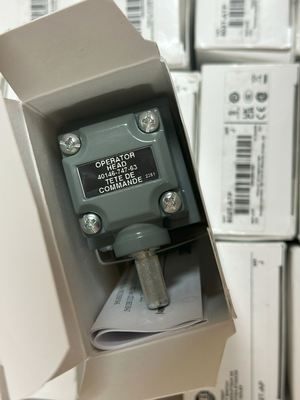

• ​Rotary Actuator​ - Side rotary actuator with adjustable rollers

• ​Lever Types​ - Multiple lever configurations available

• ​Plunger Options​ - Various plunger styles for different applications

• ​Roller Designs​ - Different roller types for specific actuation needs

Electrical Characteristics

Contact Specifications

• ​Contact Arrangement​ | 1NO + 1NC (SPDT)

• ​Rated Current​ | 10A at 250V AC

• ​Rated Voltage​ | 250V AC maximum

• ​Contact Material​ | Silver alloy for reliable switching

• ​Insulation Resistance​ | >100MΩ at 500V DC

• ​Dielectric Strength​ | 1500V AC for 1 minute

Performance Specifications

• ​Operating Speed​ | 20 operations per minute maximum

• ​Contact Bounce​ | <5ms typical

• ​Initial Contact Resistance​ | <50mΩ

• ​Operating Position Accuracy​ | ±1° typical

Applications

The Allen-Bradley 802T-AP is ideal for:

• ​Machine Tools​ - Position limiting and safety interlocking

• ​Material Handling​ - Conveyor system position detection

• ​Industrial Automation​ - Machine sequencing and control

• ​Automotive Manufacturing​ - Robotic cell position sensing

• ​Food Processing​ - Equipment position monitoring

• ​Packaging Machinery​ - Component position verification

• ​Safety Systems​ - Machine guarding and access control

Installation & Operation

Mounting Configuration

• ​Panel Mounting​ - Standard DIN rail or panel mounting

• ​Orientation​ | Any mounting position supported

• ​Clearance Requirements​ | Minimum 50mm around switch for actuator movement

• ​Mounting Torque​ | 5-10Nm for secure installation

Electrical Connection

• ​Wiring Method​ | Screw terminal connections

• ​Wire Size​ | 1 x 0.5mm to 2 x 1.5mm

• ​Conduit Entries​ | Multiple conduit entry points

• ​Grounding​ | Separate ground terminal provided

Actuator Adjustment

• ​Lever Positioning​ | Adjustable rotary head for optimal actuation

• ​Torque Settings​ | Adjustable operating torque

• ​Travel Adjustment​ | Configurable actuation travel distance

• ​Reset Setting​ | Adjustable reset position

Certifications & Compliance

• ​Safety Standards:

  • CE Marking

  • CSA Certified

  • CCC Certification

• ​Protection Standards:

  • IP67 Environmental Protection

  • Oiltight Construction

• ​Quality Standards:

  • ISO 9001 Manufacturing

  • RoHS Compliant

Why Choose Allen-Bradley 802T-AP?

• ​Proven Reliability​ - Rockwell Automation quality and industrial reputation

• ​Easy Maintenance​ - Plug-in design for quick replacement and service

• ​Environmental Resistance​ - IP67 rating ensures operation in harsh conditions

• ​Configuration Flexibility​ - Multiple actuator and mounting options

• ​Global Compliance​ - International certifications for worldwide use

• ​Technical Support​ - Backed by Rockwell Automation's global network

Maintenance & Service

• ​Preventive Maintenance​ - Regular inspection of actuator and contacts

• ​Cleaning​ | Periodic cleaning of actuator mechanism

• ​Contact Inspection​ | Check for wear and pitting

• ​Actuator Verification​ | Ensure proper alignment and operation

• ​Seal Integrity​ | Check IP67 sealing regularly

Note: Specifications are based on standard configurations. Actual performance may vary based on specific application conditions. Consult Allen-Bradley technical documentation for detailed application guidelines.
