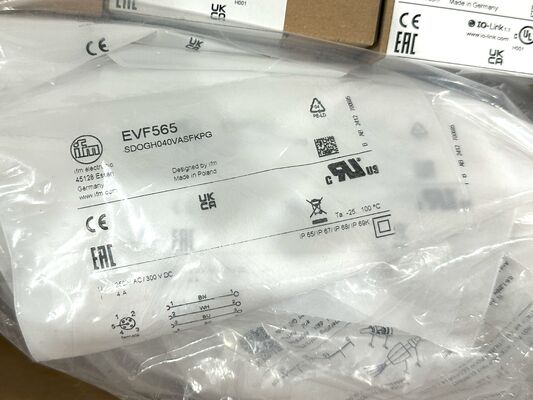

IFM EVF565 | M12 Receptacle for Harsh and Hygienic Environments

Product Overview

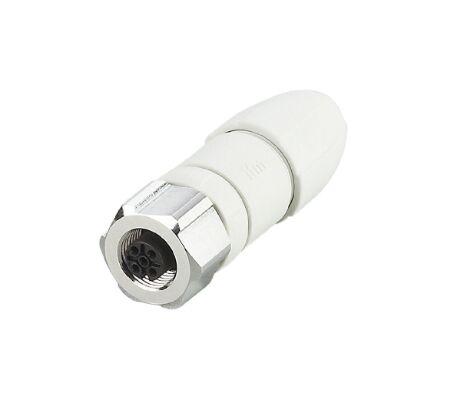

The IFM EVF565​ is a robust M12 receptacle designed for demanding industrial environments, particularly in hygienic and wet areas such as food and beverage production. It features gold contacts for reliable electrical connections and high IP ratings to withstand rigorous cleaning processes, including CIP (Clean-In-Place) procedures .

Key Features

• High Protection Rating: IP65, IP67, IP68, and IP69K protection for harsh conditions

• Gold-Plated Contacts: Ensures reliable electrical connections

• Tool-Less Installation: Features reliable ecolink technology for easy, tool-free manual connection

• Hygienic Design: Suitable for sanitary and high-moisture areas, with a design that prevents residue buildup

• Robust Construction: Resistant to oils, coolants, and chemicals

Technical Specifications

Electrical Specifications

• Connection: Screw terminal for secure cable connection

• Contact: Gold-plated for reliable connectivity

• Wire Size: 0.25...1 mm²; cable sheath: Ø 3.5...6 mm; AWG 23...1

Environmental Specifications

• Operating Temperature: -25 °C to +100 °C

• Storage Temperature: -25 °C to +55 °C

• Ingress Protection: IP65, IP67, IP68, IP69K

Mechanical Specifications

• Design: Designed for easy assembly and reliable sealing even with cable movement

• Strain Relief: Innovative elastic stress relief mechanism

Applications

• Food and beverage industry (hygienic and wet areas)

• Chemical and petrochemical industries

• Energy and environmental technology

• Applications requiring high resistance to cleaning agents and moisture

Compatibility

• Compatible with standard M12 connectors

• Suitable for use with IFM's ecolink technology components
