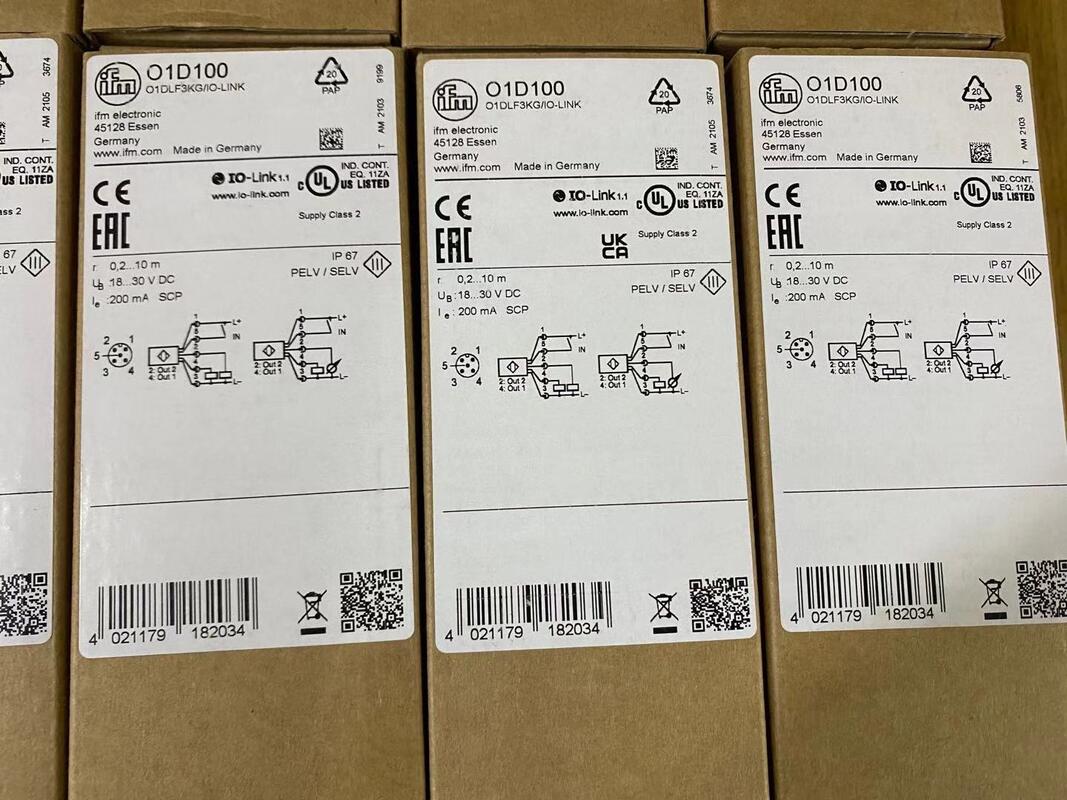

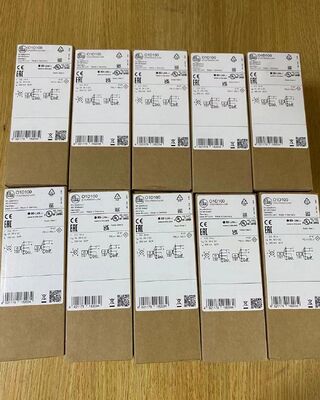

IFM O1D100 | Photoelectric Distance Sensor Technical Specifications

Product Overview

The IFM O1D100​ is a high-precision photoelectric distance sensor designed for industrial automation applications requiring accurate distance measurement and object detection. This laser-based sensor offers a measuring range of 0.2 to 10 meters with background suppression capabilities up to 19 meters, making it suitable for various industrial environments where space is limited and precise distance monitoring is essential. The sensor features a compact 10mm wide housing and operates on visible red laser light with a wavelength of 650nm, ensuring reliable performance in demanding applications .

Key Features

• Long Measuring Range​ - 0.2 to 10 meters with background suppression up to 19 meters

• High Accuracy​ - ±4mm to ±37mm accuracy depending on distance and reflectivity

• Dual Output Configuration​ - Two switching outputs with programmable functions

• IO-Link Communication​ - COM2 interface (38.4 kBaud) for digital communication and remote parameterization

• Robust Construction​ - IP67 protection rating for harsh industrial environments

• Visible Laser Light​ - 650nm wavelength for easy alignment and setup

• 4-Digit Display​ - Alphanumeric display with LED indicators for real-time monitoring

Technical Specifications

Electrical Specifications

• Output Configuration: PNP/NPN (selectable)

• Digital Outputs: 2 programmable switching outputs (NO/NC configurable)

• Analogue Output: 4-20 mA or 0-10 V (configurable on OUT2)

• Max Load Current: 200 mA per output

• Short-circuit Protection: Pulsed type with overload protection

• Reverse Polarity Protection: Yes

Performance Characteristics

Accuracy and Repeatability (at 50 Hz sampling rate)

Communication Interface

• IO-Link Version: 1.1

• Transmission Type: COM2 (38.4 kBaud)

• SDCI Standard: IEC 61131-9

• Profiles Supported: Sensor Identification, Binary Data Channel, Process Value, Sensor Diagnosis

• SIO Mode: Yes

• Minimum Process Cycle Time: 6 ms

Mechanical Specifications

• Housing Material: Die-cast zinc with polycarbonate front pane

• Lens Alignment: Side lens configuration

• Mounting: Standard industrial mounting options

• Cable Connection: M12 connector, 4-pin

• Protection Class: IP67 (dust tight and protected against immersion)

• Typical Lifetime: 50,000 hours

• MTTF: 182 years

Display and Indicators

• Display Type: 4-digit alphanumeric display

• LED Indicators:

  • 2 yellow LEDs (switching status)

  • 1 green LED (operation status)

  • 1 red laser indicator

• Programming Buttons: SET and MODE/ENTER buttons for parameter configuration

Applications

• Position Control​ - Object positioning in conveyor systems and material handling

• Level Detection​ - Height monitoring in packaging and filling applications

• Distance Measurement​ - Precise distance measurement in manufacturing processes

• Object Detection​ - Presence detection of components and materials

• Process Automation​ - Integration into automated production lines

• Robotics​ - Machine vision and robotic guidance systems

Special Functions

• Teach Mode​ - Easy configuration of switching points and thresholds

• Hysteresis Function​ - Stable switching state with configurable set/reset points

• Window Function​ - Monitoring of defined acceptable ranges

• Analogue Scaling​ - Configurable analogue output scaling for distance measurement

• Background Suppression​ - Automatic suppression of background objects up to 19 meters

Environmental Compliance

• Laser Safety: Class 2 laser (≤ 4 mW output power), IEC 60825-1:2007/2014 compliant

• EMC Compliance: EN 60947-5-2

• Protection Class: III

• Ingress Protection: IP67 (dust tight, protected against immersion up to 1 meter for 30 minutes)

Optional Accessories

• Protective Cover: E21133

• Mounting Sets: Various mounting accessories available for different installation requirements

Installation Requirements

• Power Supply: 18-30V DC, Class 2 SELV/PELV

• Mounting: Ensure proper alignment with target objects

• Ambient Conditions: Avoid direct sunlight and excessive ambient light (>40 klx)

• Background Distance: Maintain background distance >19 meters for unambiguous measurements

Maintenance

• Lens Cleaning: Keep front pane clean and free from dust buildup

• Electrical Connections: Regularly check M12 connector for secure connection

• Calibration: Use teach function for periodic calibration if required
