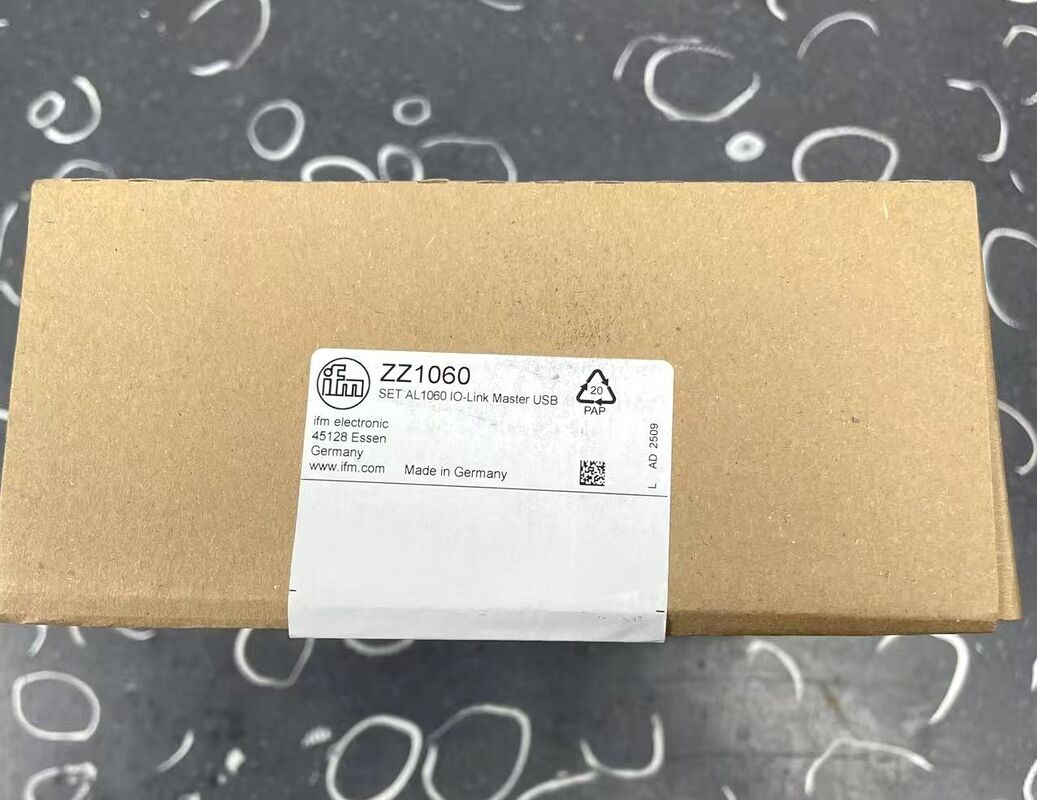

IFM ZZ1060 | IO-Link Master with USB Interface

Product Overview

The IFM ZZ1060​ is an IO-Link master with USB interface designed for connecting sensors with IO-Link capability to a PC. This compact industrial interface enables quick and easy parameter setting and setup of IO-Link devices, featuring robust M12 connectors for field applications. The set includes all necessary cables and software for immediate use, making it ideal for industrial automation, process control, and equipment monitoring applications.

Key Features

• USB Interface​ - Direct connection to PC for parameter setting and analysis

• IO-Link Master​ - Supports COM1 (4.8 kBaud), COM2 (38.4 kBaud), and COM3 (230.4 kBaud) transmission types

• Multiple Power Options​ - USB power (5V DC) or external 24V DC via AUX port

• Digital I/O​ - 2 digital inputs and 2 digital outputs via IO-Link port

• Robust Construction​ - IP65 and IP67 protection for industrial environments

• LED Status Indicators​ - Visual indication of power, communication, and I/O status

• Complete Set​ - Includes all necessary cables and parameter setting software

Technical Specifications

Electrical Specifications

• Nominal Voltage: 5V DC (USB), 24V DC (AUX port)

• Current Consumption: < 1100 mA (USB)

• Sensor Supply - AUX: 24V DC, 0.65A per port

• Sensor Supply - USB: 0.15A per port

• Digital Inputs: 2 channels, switching level high 11-30V, switching level low 0-5V

• Digital Outputs: 2 channels, max. current load 150 mA per output

• Short-circuit Protection: Yes (digital inputs and outputs)

• Reverse Polarity Protection: Yes

Communication Interface

• Communication Interface: IO-Link, USB

• Number of USB Interfaces: 1

• IO-Link Master: Transmission types COM1 (4.8 kBaud), COM2 (38.4 kBaud), COM3 (230.4 kBaud)

• Number of Ports Class A: 1

• IO-Link Revision: 1.1

• USB Version: USB 2.0

Mechanical Specifications

• Housing Material: PA (polyamide)

• Socket Material: PA

• Lock Nut: Nickel-plated brass

• Sealing Material: FKM

• Connector Types: M12 A-coded (AUX and IO-Link), M12 B-coded (USB)

• Weight: 388.3 grams

Display and Indicators

• Power LED: 1 x green/red LED (power supply status)

• IO-Link LED: 1 x green/red LED (communication status)

• DI/DO LED: 1 x orange LED (digital input/output status)

Environmental Compliance

• EMC Standards: DIN EN 61000-6-2, DIN EN 61000-6-4

• Shock Resistance: DIN EN 60068-2-27

• Vibration Resistance: DIN EN 60068-2-64, DIN EN 60068-2-6

• Ingress Protection: IP65 (dust tight), IP67 (dust tight and protected against immersion)

Included Accessories

• IO-Link Master with USB Interface: 1 unit (AL1060)

• Connection Cable: 1 m, M12 A-coded (EVC012)

• USB Cable: 1 m, M12 B-coded (E12689)

• Parameter Setting Software: moneo configure SA (QMP010)

Optional Accessories

• Switched-mode Power Supply: 24V DC, M12 A-coded (E80121)

Electrical Connection

• AUX Port: M12 connector, A-coding, for external 24V DC power supply

• IO-Link Port: M12 connector, A-coding, FKM sealing, for IO-Link device connection

• USB Port: M12 connector, B-coding, for PC connection

Installation Requirements

• Power Supply: 5V DC via USB or 24V DC via AUX port (20-30V SELV/PELV)

• Recommended Cable Length: Max. 3 m for AUX port

• Tightening Torque: Max. 1.8 Nm for cable sockets

• Mounting: Suitable for field applications with robust M12 connectors

Applications

• Parameter Setting​ - Quick and easy configuration of IO-Link devices

• Device Analysis​ - Real-time monitoring and analysis of sensor data

• Industrial Automation​ - Integration into automation systems for process control

• Equipment Monitoring​ - Continuous monitoring of industrial equipment

• Process Control​ - Control and optimization of industrial processes

• Maintenance and Diagnostics​ - Troubleshooting and diagnostic functions for IO-Link devices

Maintenance

• Regular Inspection: Check for physical damage and proper operation

• Cleaning: Keep connectors clean and free from debris

• Software Updates: Keep parameter setting software up to date

• Diagnostics: Use LED indicators and software for troubleshooting
