ASCO EF8320G202 | Brass 2-Way Solenoid Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage: | 12V, 24V, 110V, 220V AC/DC | Mounting: | Inline Or Manifold |
|---|---|---|---|
| Operation: | Direct Acting Or Pilot Operated | Temperaturerange: | -10°C To 80°C |
| Type: | Solenoid Valve | Portsize: | 1/8 Inch To 2 Inches |
| Productname: | ASCO Valves | Pressurerange: | 0 To 300 Psi |
| Connectiontype: | Threaded, Flanged, Or Socket Weld | ||
| Highlight: | ASCO brass solenoid valve,2-way solenoid valve brass,ASCO EF8320G202 solenoid valve |
||

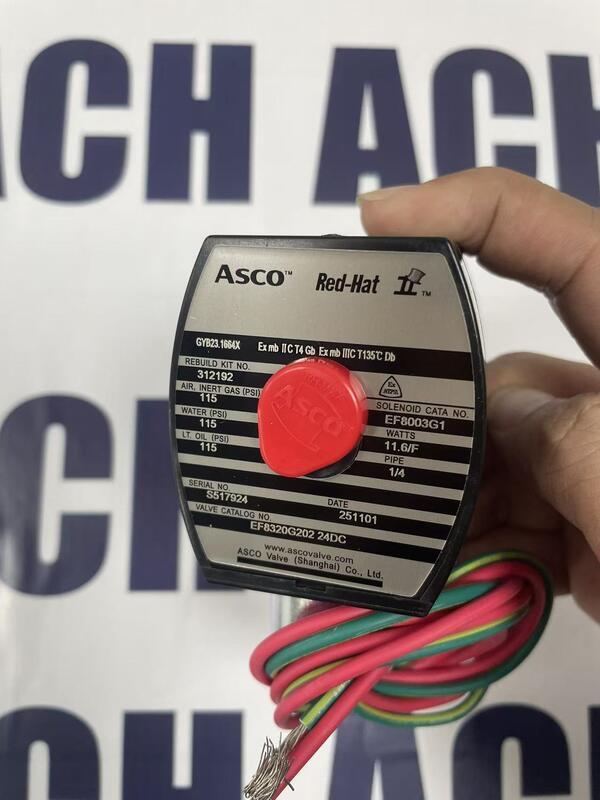

ASCO EF8320G202 | Brass 2-Way Solenoid Valve
Product Overview
The ASCO EF8320G202 is a compact, 2-way direct-acting solenoid valve designed for general-purpose service. This brass-bodied, normally closed valve provides reliable on/off control of air, water, light oil, and inert gases. It features a molded coil and is designed for easy installation and maintenance in industrial automation and process control applications.
Key Features
-
2-Way, Normally Closed: Provides positive shut-off when de-energized.
-
Compact & Durable: Brass body construction ensures corrosion resistance and longevity.
-
General Service Media: Suitable for air, water, light oil, and inert gases.
-
Low Minimum Pressure Differential: Can operate with a minimum pressure differential of 0 psi.
-
Molded Coil: Provides moisture and environmental protection for the solenoid.
-
Easy Maintenance: Features a standard manual override and is serviceable in-line.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
EF8320G202 |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Way, Direct-Acting, Normally Closed |
|
Orifice Size |
3/8" |
|
Pipe Connection |
3/8" NPT |
|
Body Material |
Brass |
|
Seal Material |
Nitrile (NBR) / VITON® (Standard) |
|
Media |
Air, Water, Light Oil, Inert Gas |
|
Maximum Pressure (Air/Oil) |
150 psi (10.3 bar) |
|
Maximum Pressure (Water) |
150 psi (10.3 bar) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Fluid Temperature Range |
32°F to 180°F (0°C to 82°C) with NBR seals |
|
Voltage |
120V AC, 60 Hz |
|
Coil Class |
Class F (155°C) |
|
Enclosure Rating |
NEMA 4, 4X, 7, 9 (Standard) |
|
Manual Override |
Standard |
|
Flow Coefficient (Cv) |
Approximately 2.0 |
|
Weight |
Approximately 2.4 lbs (1.1 kg) |
Performance & Construction
-
Flow Characteristics: Provides efficient on/off control for general service applications.
-
Response Time: Fast opening and closing for responsive system operation.
-
Cycle Life: Designed for reliable, long-term service in industrial environments.
-
Mounting: Can be installed in any orientation.
Applications
-
Industrial Automation: Air and water control in automated machinery and equipment.
-
Process Control: On/Off control for light oil lines and inert gas systems.
-
General Service: A versatile valve for a wide range of light to medium-duty fluid control applications involving compatible media.
Installation & Maintenance Notes
-
Ensure correct flow direction (marked on valve body).
-
Installation of a strainer upstream is recommended for unclean media.
-
System must be depressurized before servicing.
-
Regular inspection of seals is recommended for optimal performance and service life.
