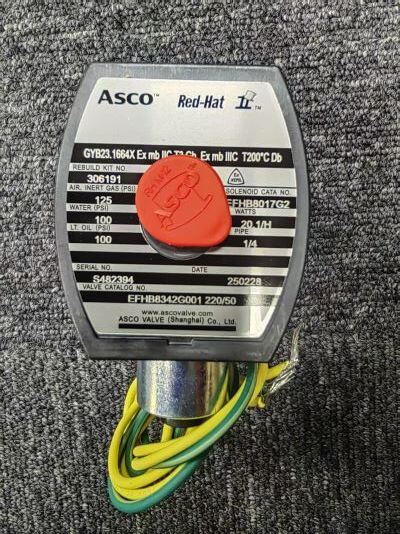

ASCO EFHB8342G001 | 2-Way Solenoid Valve
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Brass / Stainless Steel / Plastic | Manufacturer: | ASCO |
|---|---|---|---|
| Productname: | ASCO Valves | Operatingpressurerange: | 0 To 150 Psi |
| Temperaturerange: | -10°C To 80°C | Flowcoefficient: | Cv Values From 0.1 To 10 |
| Mountingtype: | Inline Or Manifold | Connectiontype: | Threaded / Flanged |
| Responsetime: | 10 To 20 Milliseconds | Portsize: | 1/8 Inch To 2 Inches |
| Highlight: | ASCO 2-way solenoid valve,ASCO solenoid valve with warranty,2-way solenoid valve EFHB8342G001 |
||

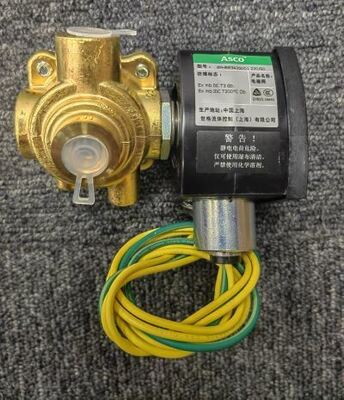

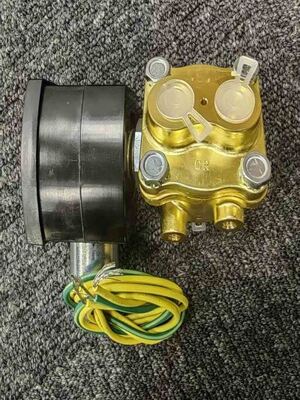

ASCO EFHB8342G001 | 2-Way Solenoid Valve
Product Overview
The ASCO EFHB8342G001 is a general-purpose, 2-way solenoid valve designed for reliable on/off control of air, water, light oil, and inert gases. This direct-acting, normally closed valve features a brass body, NPT connections, and a molded coil with a standard industrial enclosure. It is engineered for easy installation and maintenance in a wide range of industrial automation and process control applications.
Key Features
-
2-Way, Normally Closed: Provides reliable shut-off when de-energized.
-
Direct-Acting Operation: Requires no minimum pressure differential to operate (0 psi min. operating pressure).
-
Versatile Media: Suitable for air, water, light oil, and inert gases.
-
Durable Construction: Brass body with Nitrile (NBR) seals.
-
Molded Coil: Features a watertight, explosion-proof enclosure rated NEMA 4, 4X, 7, and 9.
-
Manual Override: Includes a standard manual operator for testing and system setup.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
EFHB8342G001 |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Function |
2-Way, Normally Closed (N.C.), Direct-Acting |
|
Orifice Size |
1/2" |
|
Pipe Connection |
1/2" NPT |
|
Body Material |
Brass |
|
Seal Material |
Nitrile (NBR) |
|
Media |
Air, Water, Light Oil, Inert Gas |
|
Maximum Pressure (Air/Oil/Water) |
150 psi (10.3 bar) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Fluid Temperature Range |
32°F to 180°F (0°C to 82°C) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure Rating |
NEMA 4, 4X, 7, 9 |
|
Manual Override |
Standard |
|
Flow Coefficient (Cv) |
Approximately 3.5 |
|
Weight |
Approximately 4.8 lbs (2.2 kg) |
Performance & Construction
-
Flow Capacity: The Cv of ~3.5 indicates good flow capacity for general service applications.
-
Reliability: Brass construction and Class F coil insulation ensure long service life.
-
Mounting: Can be installed in any orientation.
Applications
-
Industrial Automation: Control of air, water, or light oil in machinery and automated systems.
-
Process Control: On/Off service for general process lines.
-
Equipment Protection: Used as a shut-off valve in various industrial systems.
Installation & Maintenance Notes
-
Ensure the valve is installed in the correct flow direction (indicated on the body).
-
A strainer is recommended upstream if the media is not clean.
-
Depressurize the system before installation or maintenance.
-
Regular inspection of seals is advised for optimal performance.
