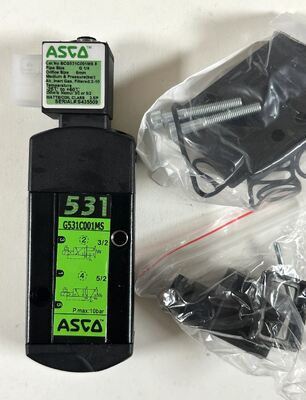

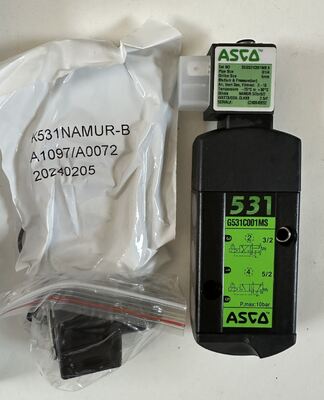

ASCO G531C001MS | 2-Position, 3-Way Steam Solenoid Valve
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Voltage: | 12V, 24V, 110V, 220V AC/DC | Mounting: | Inline Or Manifold |
|---|---|---|---|
| Operation: | Direct Acting Or Pilot Operated | Temperaturerange: | -10°C To 80°C |
| Type: | Solenoid Valve | Portsize: | 1/8 Inch To 2 Inches |
| Productname: | ASCO Valves | Pressurerange: | 0 To 300 Psi |
| Connectiontype: | Threaded, Flanged, Or Socket Weld | ||
| Highlight: | ASCO 3-way solenoid valve,steam solenoid valve with warranty,2-position ASCO steam valve |
||
ASCO G531C001MS | 2-Position, 3-Way Steam Solenoid Valve
Product Overview
The ASCO G531C001MS is a 2-position, 3-way solenoid valve specifically engineered for the control of saturated and superheated steam. This direct-acting, normally closed valve features a brass body, stainless steel internals, and PTFE seals, making it highly durable for demanding steam applications. Its compact, serviceable design is ideal for steam tracing, humidification, and other industrial steam control processes.
Key Features
-
Steam-Specific Design: Engineered for reliable performance with saturated and superheated steam.
-
2-Position, 3-Way Function (N.C.): In its resting state, pressure is applied to the normally closed (NC) port. Energizing the coil switches flow to the normally open (NO) port.
-
Rugged Construction: Brass body, stainless steel plunger and spring, and PTFE seals for high temperature and corrosion resistance.
-
Direct-Acting: Operates from 0 psi (0 bar) minimum pressure differential.
-
Serviceable In-line: Designed for easy maintenance without removing the entire valve body from the pipeline.
-
Compact & Efficient: Space-saving design for easier panel or system integration.
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model Number |
G531C001MS |
|
Manufacturer |
ASCO (Emerson) |
|
Valve Type |
2-Position, 3-Way |
|
Function |
Universal (Pressure applied to Normally Closed port) |
|
Operation |
Direct-Acting, Normally Closed |
|
Orifice Size |
1/8" (3.2 mm) |
|
Pipe Connection |
1/4" NPT |
|
Body Material |
Brass |
|
Core Tube & Plunger |
Stainless Steel |
|
Seal Material |
PTFE (Teflon®) |
|
Media |
Saturated and Superheated Steam |
|
Maximum Steam Pressure |
150 psi (10.3 bar) |
|
Maximum Fluid Temperature |
365°F (185°C) |
|
Minimum Operating Pressure |
0 psi (0 bar) |
|
Voltage |
120V AC, 60 Hz |
|
Enclosure |
Molded, Watertight |
|
Flow Coefficient (Cv) |
~0.17 |
|
Response Time |
Fast (typical for direct-acting design) |
Performance & Construction
-
Flow Path: 3-way configuration allows for diverting or selecting flow paths, commonly used for applying or exhausting steam pressure.
-
High-Temperature Capable: PTFE seals and stainless steel internals are selected for steam service.
-
Reliability: Designed for the rigorous demands of industrial steam control.
Applications
-
Steam Tracing: Controlling steam flow to process lines for temperature maintenance.
-
Humidification: On/Off control of steam for atmospheric humidification systems.
-
Small Process Control: Regulating steam to tanks, jacketed vessels, or other small process equipment.
-
Sterilization & Sanitation: Steam control in cleaning or sanitizing applications.
Installation & Maintenance Notes
-
Critical: This valve is designed for steam service. Do not use with other media unless compatibility is verified.
-
Install a strainer upstream to protect the valve from pipeline debris.
-
Ensure the system is depressurized and cooled before performing any maintenance.
-
Verify the Cv (flow capacity) is adequate for your system requirements.
About ACH
Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL and EMERSON to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.
Frequently Asked Questions
Are preferential prices available?
Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.
Are the Products Genuine OEM Units?
Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.
How will you arrange shipment?
We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.
What is the warranty of goods?
One-year Warranty.
How long is the logistics cycle of the product?
Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
